Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days
Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days
Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days
Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days

SKU: RAXZ540-MB

Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days

CHF 502.00 ex VAT
CHF 502.00
ex VAT
Not in stock

Quantity Price Breaks

10 CHF 446.78
19 CHF 421.68
29 CHF 416.66
39 CHF 411.64
49 CHF 406.62
74 CHF 401.60
99 CHF 376.50
199 CHF 371.48
249 CHF 366.46
499 CHF 361.44
999 CHF 351.40
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days
Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days
SKU: RAXZ540-MB

Major Brand RAXZ 540 Combined Bearing with Incorporated Thrust Plate 40x52x31mm Allow 2-3 Days

CHF 502.00 ex VAT
CHF 502.00
ex VAT

Description

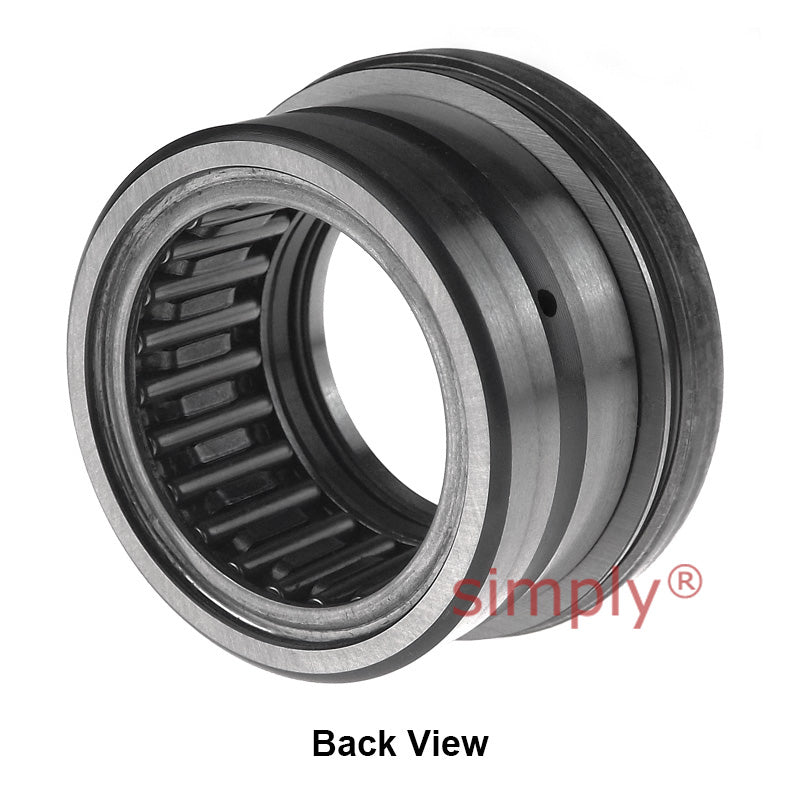

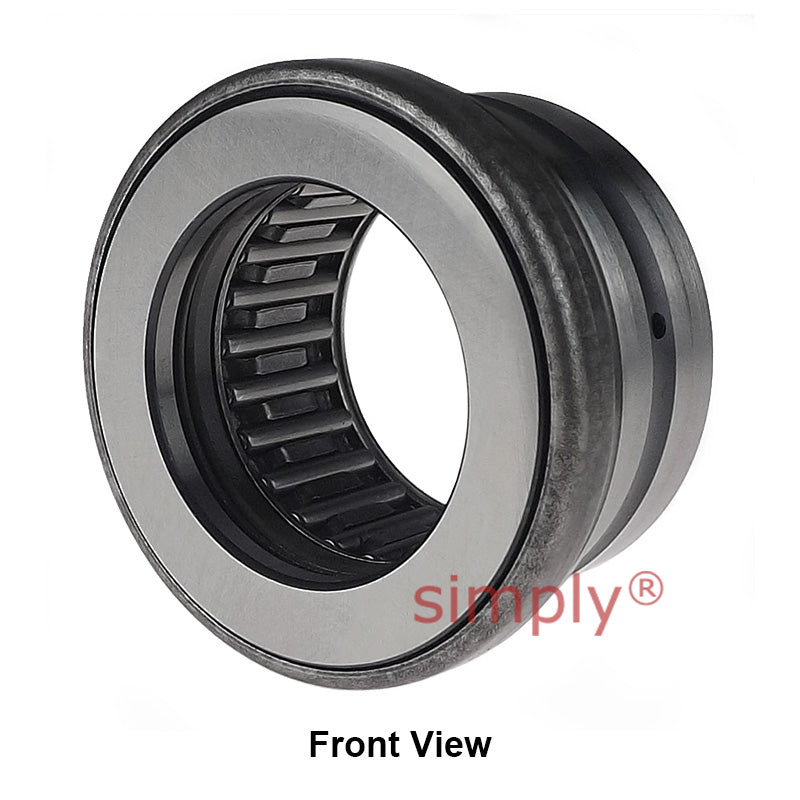

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

Technical

Fw = 40mm
D = 52mm
C = 31mm
da = 40mm
Da = 61mm
C1 = 13mm
C2 = 9mm
rs min = 0.85mm
Radial dynamic load = 23.8 kN
Radial static load = 47 kN
Axial dynamic load = 46 kN
Axial static load = 129 kN
Speed rating = 5 rpm
Weight = 0.218 kg
