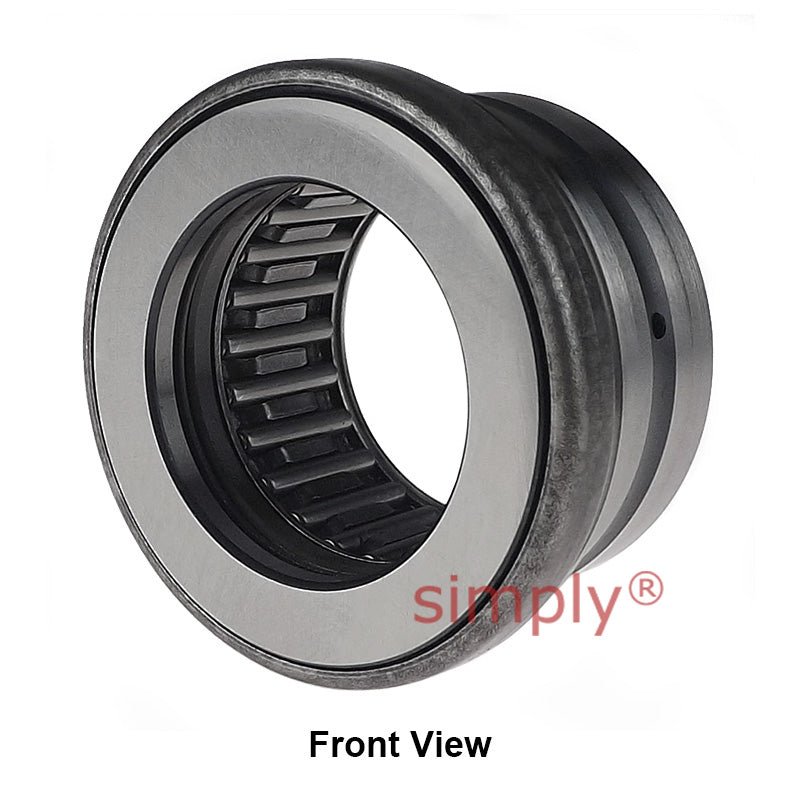

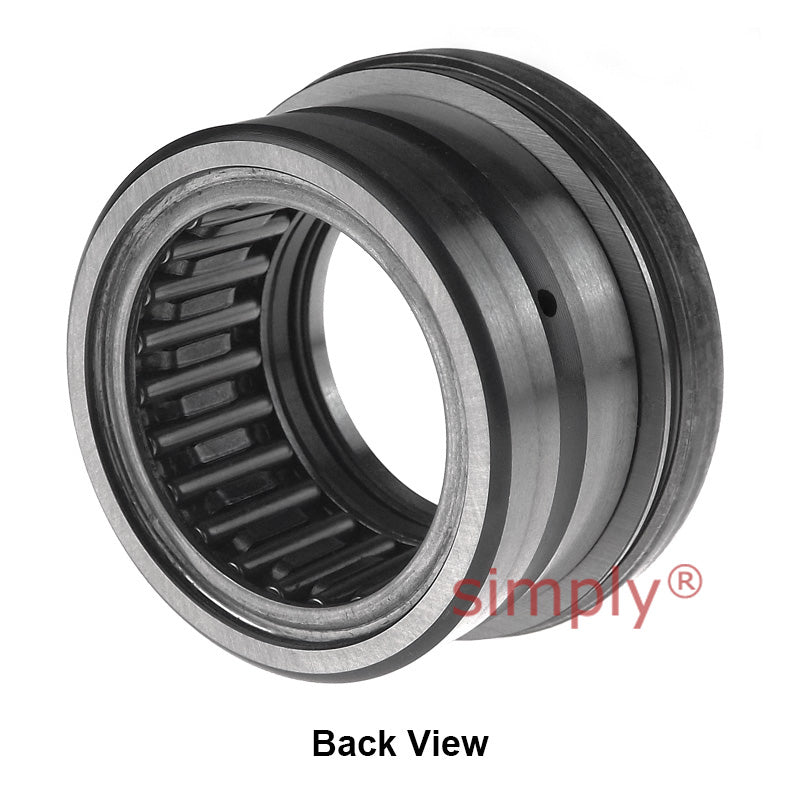

Major Brand RAXZ 530 Combined Bearing with Incorporated Thrust Plate 30x42x29mm Allow 2-3 Days
Major Brand RAXZ 530 Combined Bearing with Incorporated Thrust Plate 30x42x29mm Allow 2-3 Days
Major Brand RAXZ 530 Combined Bearing with Incorporated Thrust Plate 30x42x29mm Allow 2-3 Days
Major Brand RAXZ 530 Combined Bearing with Incorporated Thrust Plate 30x42x29mm Allow 2-3 Days

SKU: RAXZ530-MB

Major Brand RAXZ 530 Combined Bearing with Incorporated Thrust Plate 30x42x29mm Allow 2-3 Days

CHF 874.00 ex VAT
CHF 874.00
ex VAT
Not in stock

Quantity Price Breaks

10 CHF 777.86
19 CHF 734.16
29 CHF 725.42
39 CHF 716.68
49 CHF 707.94
74 CHF 699.20
99 CHF 655.50
199 CHF 646.76
249 CHF 638.02
499 CHF 629.28
999 CHF 611.80
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RAXZ 530 Combined Bearing with Incorporated Thrust Plate 30x42x29mm Allow 2-3 Days
Major Brand RAXZ 530 Combined Bearing with Incorporated Thrust Plate 30x42x29mm Allow 2-3 Days
SKU: RAXZ530-MB

Major Brand RAXZ 530 Combined Bearing with Incorporated Thrust Plate 30x42x29mm Allow 2-3 Days

CHF 874.00 ex VAT
CHF 874.00
ex VAT

Description

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

Technical

Fw = 30mm
D = 42mm
C = 29mm
da = 30mm
Da = 48mm
C1 = 11mm
C2 = 9mm
rs min = 0.85mm
Radial dynamic load = 20.2 kN
Radial static load = 34.6 kN
Axial dynamic load = 26.5 kN
Axial static load = 77 kN
Speed rating = 6.5 rpm
Weight = 0.147 kg
