Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days
Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days
Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days
Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days

SKU: RAXZ510-MB

Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days

CHF 283.00 ex VAT
CHF 283.00
ex VAT
Not in stock

Quantity Price Breaks

10 CHF 251.87
19 CHF 237.72
29 CHF 234.89
39 CHF 232.06
49 CHF 229.23
74 CHF 226.40
99 CHF 212.25
199 CHF 209.42
249 CHF 206.59
499 CHF 203.76
999 CHF 198.10
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days
Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days
SKU: RAXZ510-MB

Major Brand RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days

CHF 283.00 ex VAT
CHF 283.00
ex VAT

Description

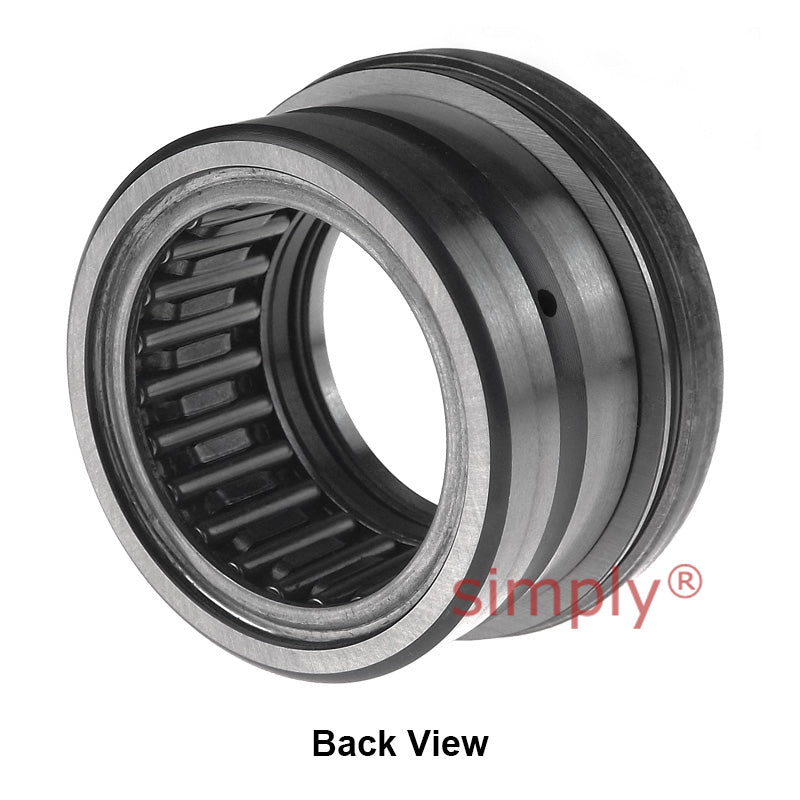

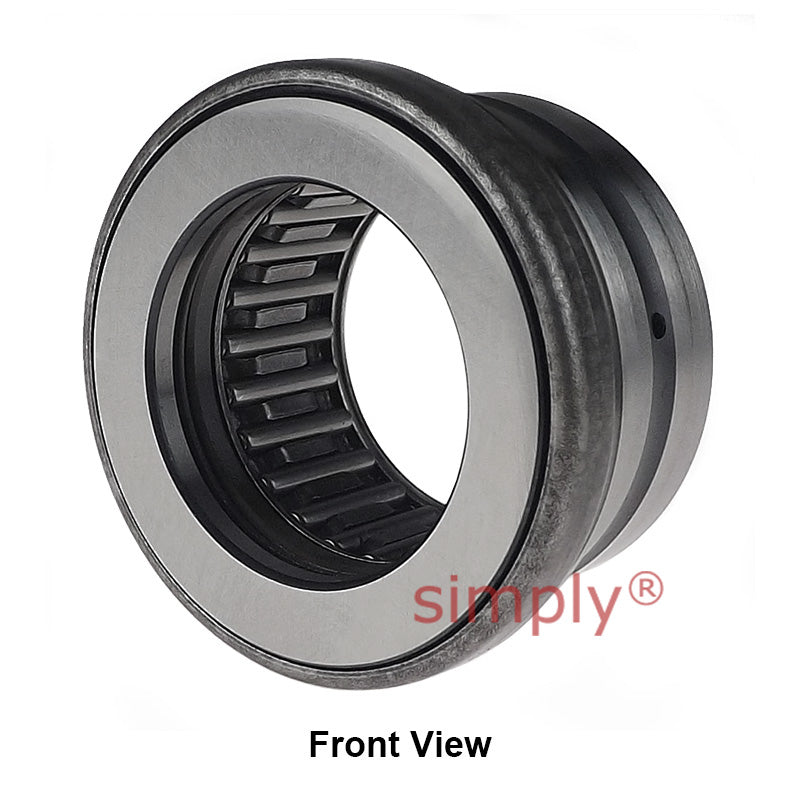

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

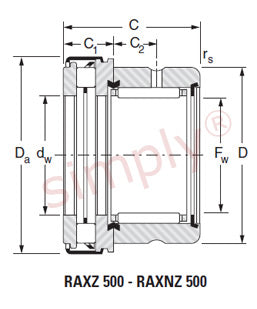

Technical

Fw = 10mm
D = 19mm
C = 21.5mm
da = 10mm
Da = 22.4mm
C1 = 7.5mm
C2 = 6mm
rs min = 0.35mm
Radial dynamic load = 5.9 kN
Radial static load = 7.2 kN
Axial dynamic load = 8.2 kN
Axial static load = 17.9 kN
Speed rating = 15500 rpm
Weight = 0.031 kg
