SKU: PP80-MXL-025I
PP80-MXL-025I - 0.08 inch Pitch 80 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley with Brass Insert
- Regular price
- CHF 20.00 ex VAT
- Sale price
- CHF 20.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 17.80
5
CHF 16.80
9
CHF 16.60
19
CHF 16.40
49
CHF 16.20
74
CHF 16.00
99
CHF 15.00
199
CHF 14.80
249
CHF 14.60
499
CHF 14.40
999
CHF 14.00
SKU:
PP80-MXL-025I
PP80-MXL-025I - 0.08 inch Pitch 80 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley with Brass Insert
- Regular price
- CHF 20.00 ex VAT
- Sale price
- CHF 20.00
- Regular price
-
Description
Imperial Pilot Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.

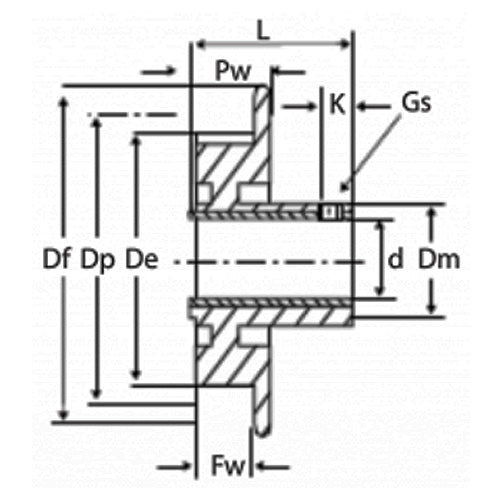

Technical
| No.teeth | = | 80 |
| Dp | = | 2.037 inch |
| De | = | 2.017 inch |
| Df | = | 2.21 inch |
| Dm | = | 0.688 inch |
| Fw | = | 0.312 inch |
| L | = | 0.688 inch |
| Bore (d) | = | 0.25 inch |
| Gs | = | 1 x 6-32 UNC |
| Material | = | Polycarbonate (Glass Filled) |
| Bore | = | Pilot Bored |
| Pitch | = | 0.08 inch |
| Pw | = | 0.437 inch |
| Insert | = | with Brass Insert |
| K | = | 0.125 inch |
