SKU: POS10-MF.EU

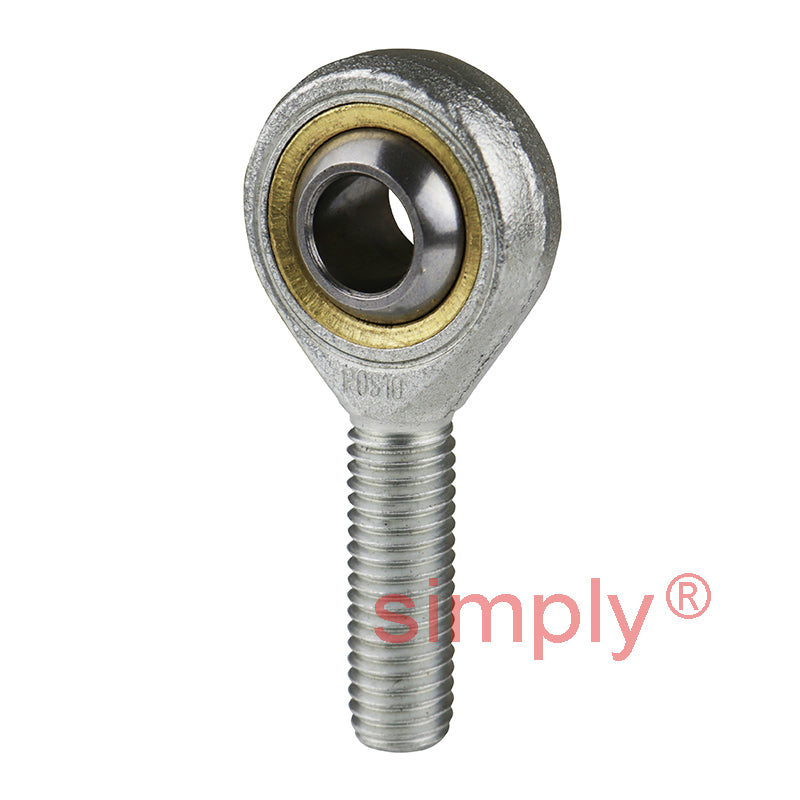

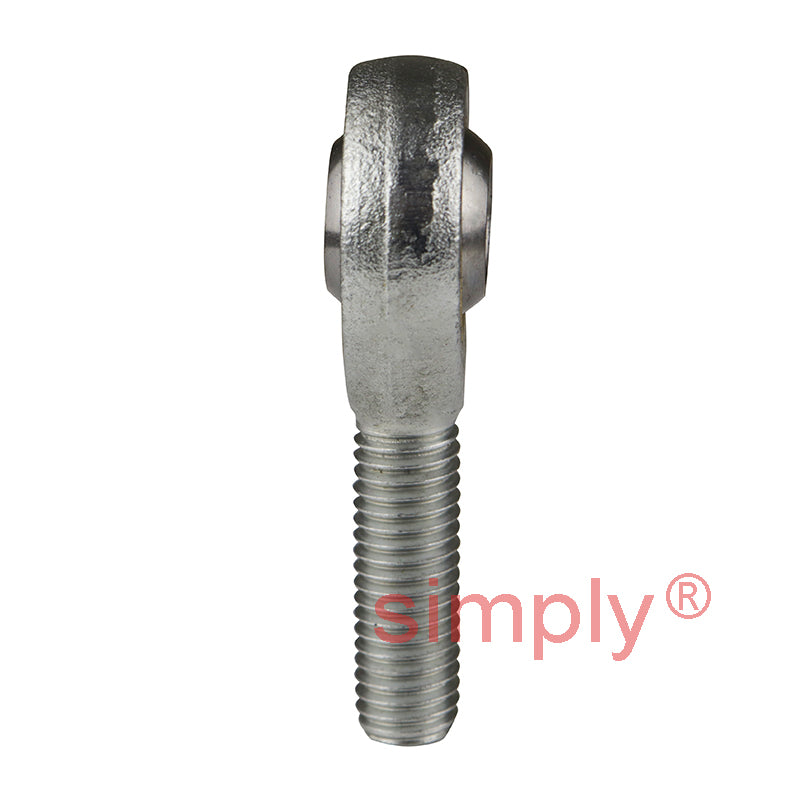

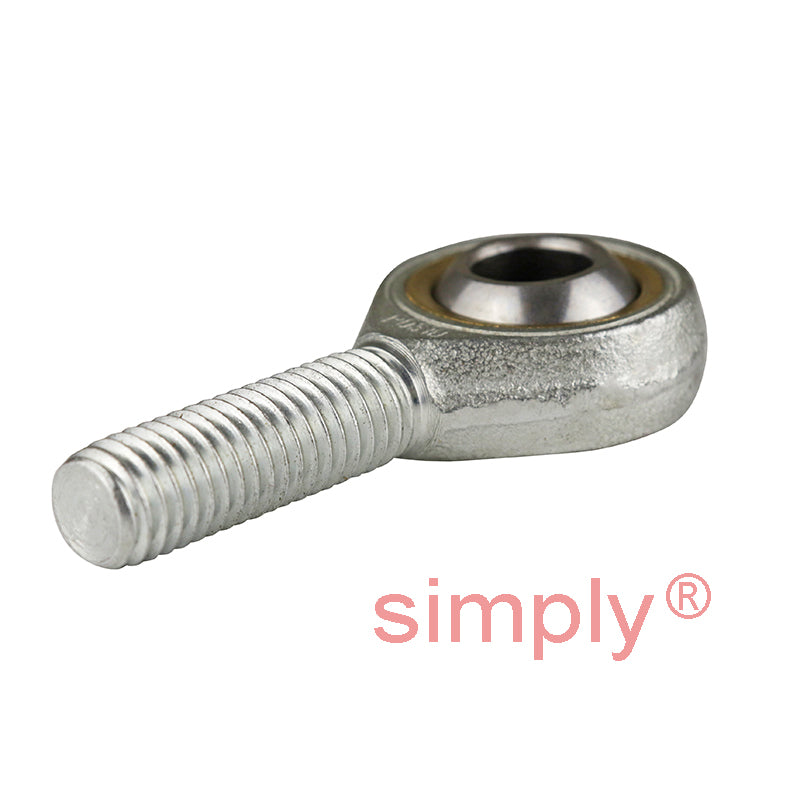

Budget POS10EC Maintenance Free Right Hand Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
- Regular price
- CHF 5.00 ex VAT
- Sale price
- CHF 5.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 4.45
19
CHF 4.20
29
CHF 4.15
39
CHF 4.10
49
CHF 4.05
74
CHF 4.00
99
CHF 3.75
199
CHF 3.70
249
CHF 3.65
499
CHF 3.60
999
CHF 3.50
SKU:
POS10-MF.EU
Budget POS10EC Maintenance Free Right Hand Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
- Regular price
- CHF 5.00 ex VAT
- Sale price
- CHF 5.00
- Regular price
-
Description
|
Steel Maintenance Free Male Rod End with PTFE Liner: These rod ends consist of a Steel body with a Steel ball running in a PTFE maintenance free liner captive in a Steel ball mount. Benefits: Cost-effective replacement bearing, sliding surfaces are steel against PTFE, and maintenance free. Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover them with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Steel, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |

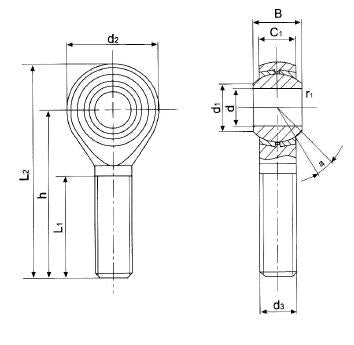

Technical
| d | = | 10mm |
| B | = | 14mm |
| r1 | = | 0.6mm |
| C1 | = | 10.5mm |
| d1 max | = | 12.9mm |
| d2 | = | 26mm |
| d3 | = | M10x1.25 |
| h | = | 48mm |
| l1 | = | 29mm |
| l2 | = | 61mm |
| Ball diameter | = | 3/4 inch |
| Dynamic load Cr | = | 10 kN |
| Static load Cor | = | 13.6 kN |
| Max angle & | = | alpha |
| = | 13 | |
| Weight | = | 0.054 kg |
