SKU: PNA22/44-EU

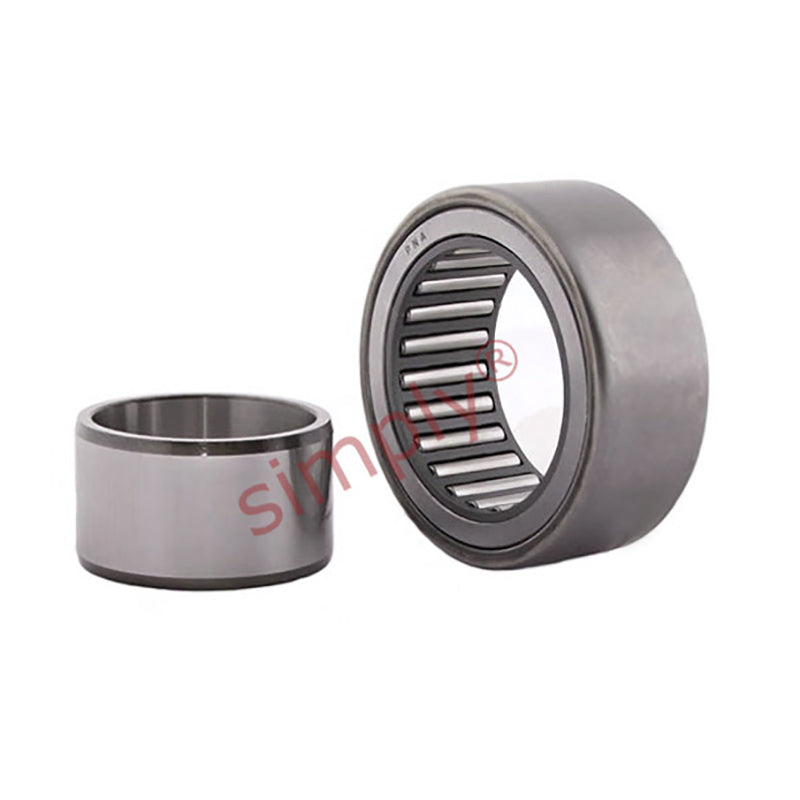

PNA22/44 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 22x44x20
- Regular price
- CHF 51.00 ex VAT
- Sale price
- CHF 51.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 45.39
19
CHF 42.84
29
CHF 42.33
39
CHF 41.82
49
CHF 41.31
74
CHF 40.80
99
CHF 38.25
199
CHF 37.74
249
CHF 37.23
499
CHF 36.72
999
CHF 35.70
SKU:
PNA22/44-EU
PNA22/44 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 22x44x20
- Regular price
- CHF 51.00 ex VAT
- Sale price
- CHF 51.00
- Regular price
-
Description
|
Budget Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |

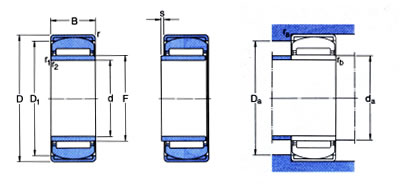

Technical
| d | = | 22mm |
| D | = | 44mm |
| B | = | 20mm |
| Dynamic load C | = | 22000 N |
| Static load Co | = | 36500 N |
| Fatigue load limit Pu | = | 4550 N |
| Speed in grease | = | 9000 rpm |
| Speed in oil | = | 14000 rpm |
| F | = | 28mm |
| D1 | = | 38.5mm |
| r min | = | 1mm |
| r1r2 min | = | 0.3mm |
| s (axial disp) | = | 0.5mm |
| da min | = | 24mm |
| Da min | = | 37.5mm |
| Da max | = | 39mm |
| ra max | = | 1mm |
| rb max | = | 0.3mm |
| Weight | = | 150 g |
