SKU: PMEY50-XL-N-INA

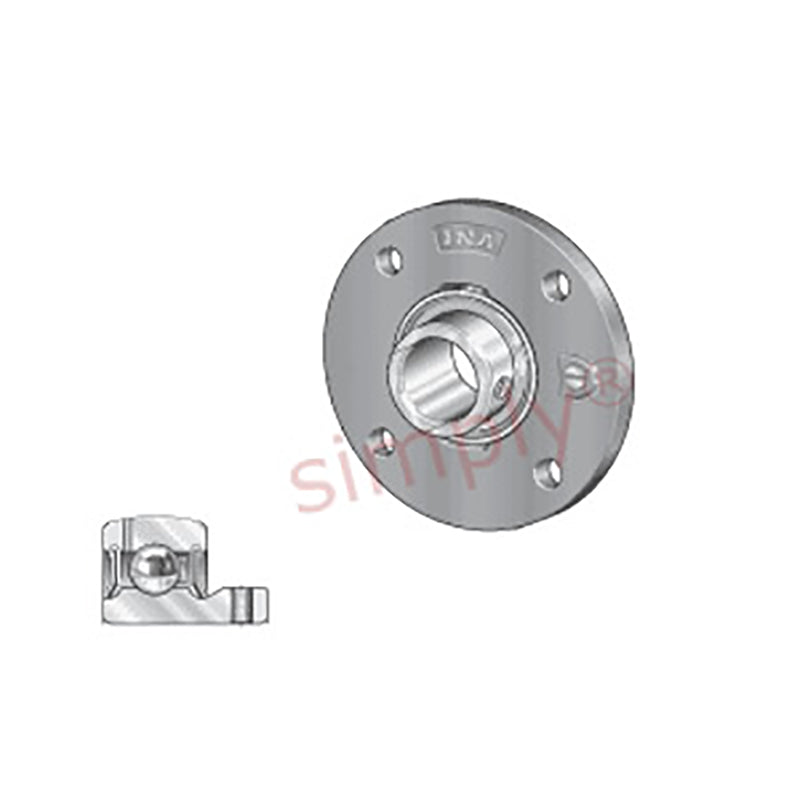

INA PMEY50XLN Four Bolt Cast Iron Round Housing with Grub Screw Insert 50mm Bore
- Regular price
- CHF 90.00 ex VAT
- Sale price
- CHF 90.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 80.10
19+
CHF 75.60
29+
CHF 74.70
39+
CHF 73.80
49+
CHF 72.90
74+
CHF 72.00
99+
CHF 67.50
199+
CHF 66.60
249+
CHF 65.70
499+
CHF 64.80
999+
CHF 63.00
SKU:
PMEY50-XL-N-INA
INA PMEY50XLN Four Bolt Cast Iron Round Housing with Grub Screw Insert 50mm Bore
- Regular price
- CHF 90.00 ex VAT
- Sale price
- CHF 90.00
- Regular price
-
Description
|

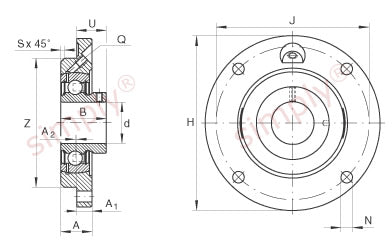

INA 4 Bolt Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This round cast iron housing has through holes for location purposes and a centring spigot. The centring spigot is mounted in a turned recess in the machine structure. This gives concentric alignment of the housings and relieves the fixing screws of any radial forces. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, grub screw fixing, centring spigot, tolerates misalignment of the shaft. |
