SKU: PMEY30-XL-N-INA

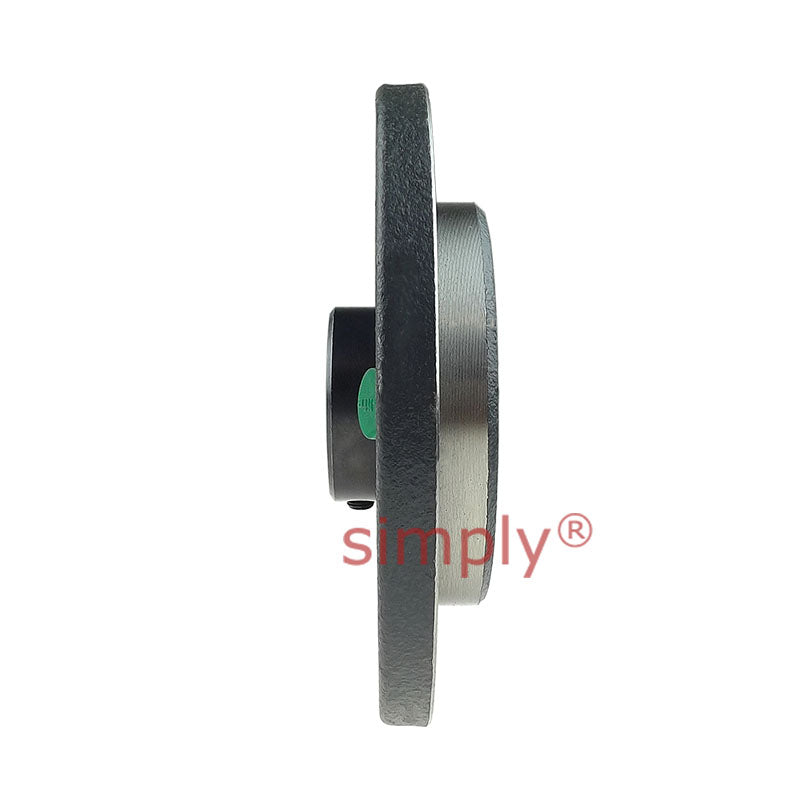

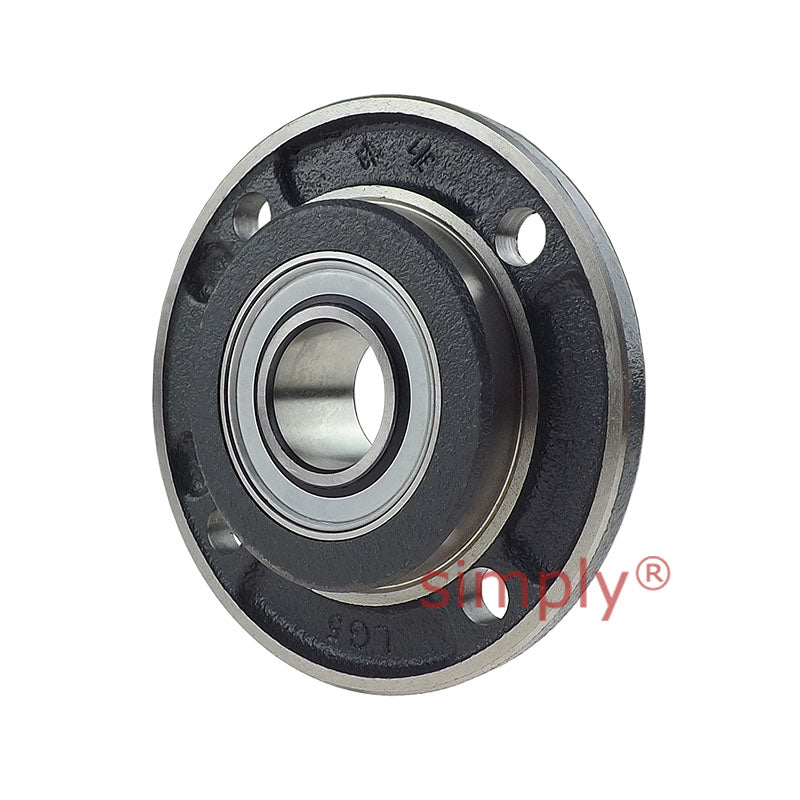

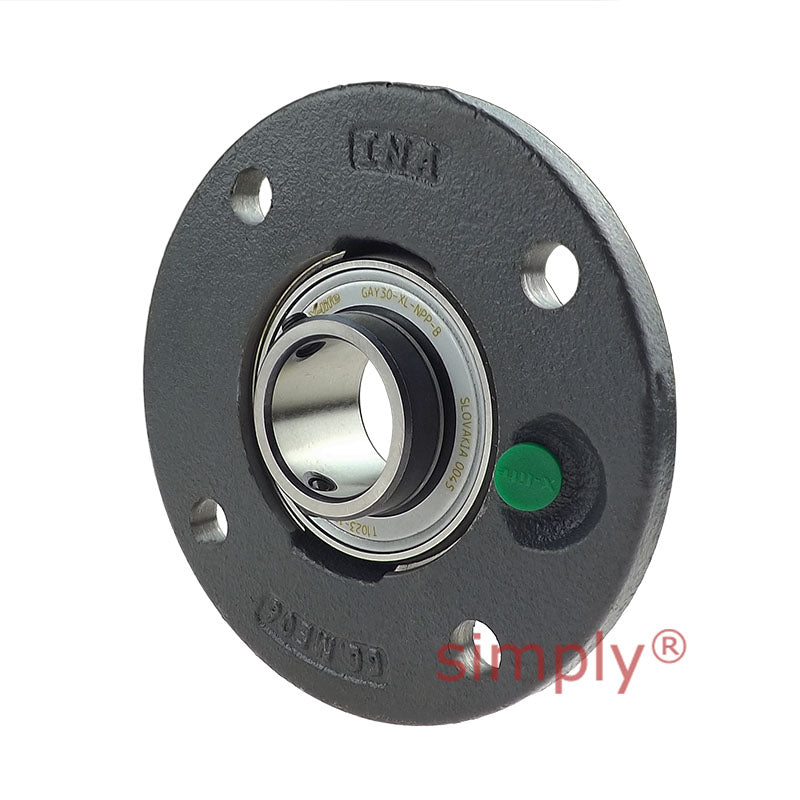

INA PMEY30XLN Four Bolt Cast Iron Round Housing with Grub Screw Insert 30mm Bore
- Regular price
- CHF 53.00 ex VAT
- Sale price
- CHF 53.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 47.17
19+
CHF 44.52
29+
CHF 43.99
39+
CHF 43.46
49+
CHF 42.93
74+
CHF 42.40
99+
CHF 39.75
199+
CHF 39.22
249+
CHF 38.69
499+
CHF 38.16
999+
CHF 37.10
SKU:
PMEY30-XL-N-INA
INA PMEY30XLN Four Bolt Cast Iron Round Housing with Grub Screw Insert 30mm Bore
- Regular price
- CHF 53.00 ex VAT
- Sale price
- CHF 53.00
- Regular price
-
Description
|
INA 4 Bolt Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This round cast iron housing has through holes for location purposes and a centring spigot. The centring spigot is mounted in a turned recess in the machine structure. This gives concentric alignment of the housings and relieves the fixing screws of any radial forces. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, grub screw fixing, centring spigot, tolerates misalignment of the shaft. |
