SKU: PHS5L.EU

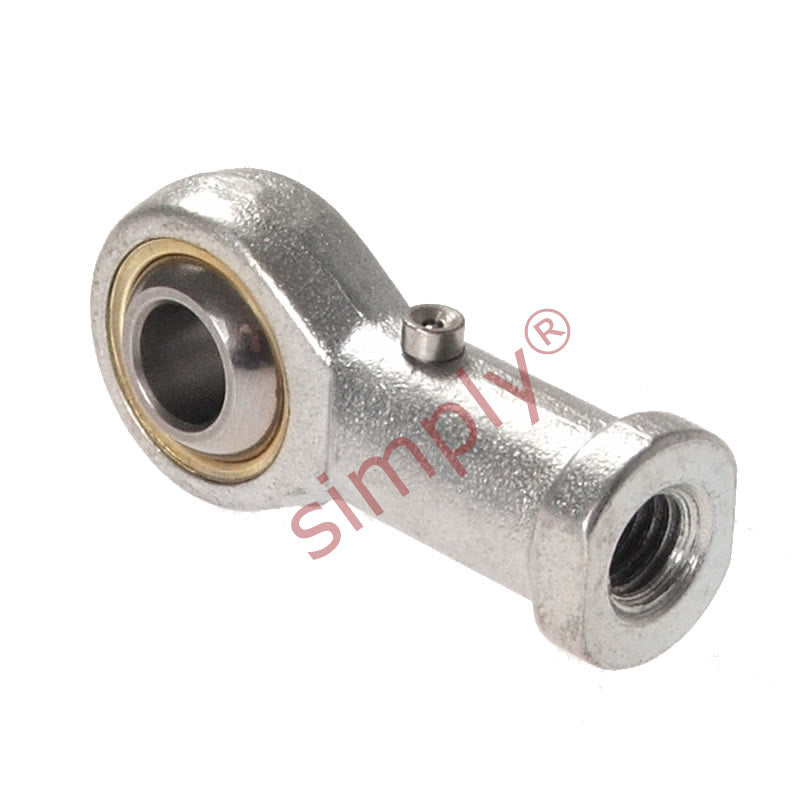

Budget PHS5L Left Hand Steel / Bronze Lined Plain Female Rod End 5mm Bore M5x0.8 Thread
- Regular price
- CHF 5.00 ex VAT
- Sale price
- CHF 5.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 4.45
19
CHF 4.20
29
CHF 4.15
39
CHF 4.10
49
CHF 4.05
74
CHF 4.00
99
CHF 3.75
199
CHF 3.70
249
CHF 3.65
499
CHF 3.60
999
CHF 3.50
SKU:
PHS5L.EU
Budget PHS5L Left Hand Steel / Bronze Lined Plain Female Rod End 5mm Bore M5x0.8 Thread
- Regular price
- CHF 5.00 ex VAT
- Sale price
- CHF 5.00
- Regular price
-
Description
|
Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Technical
| d | = | 5mm |
| B | = | 8mm |
| r1 | = | 0.3mm |
| C1 | = | 6mm |
| d1 max | = | 7.7mm |
| d2 | = | 16mm |
| d3 | = | M5x0.8 |
| h1 | = | 27mm |
| L3 | = | 13mm |
| L4 | = | 35mm |
| L5 | = | 4mm |
| d4 | = | 9mm |
| d5 | = | 11mm |
| S | = | 9mm |
| Ball diameter | = | 7/16 inch |
| Dynamic load Cr | = | 3.3 kN |
| Static load Cor | = | 5.8 kN |
| Max angle & | = | alpha |
| = | 13 | |
| Weight | = | 0.0165 kg |
