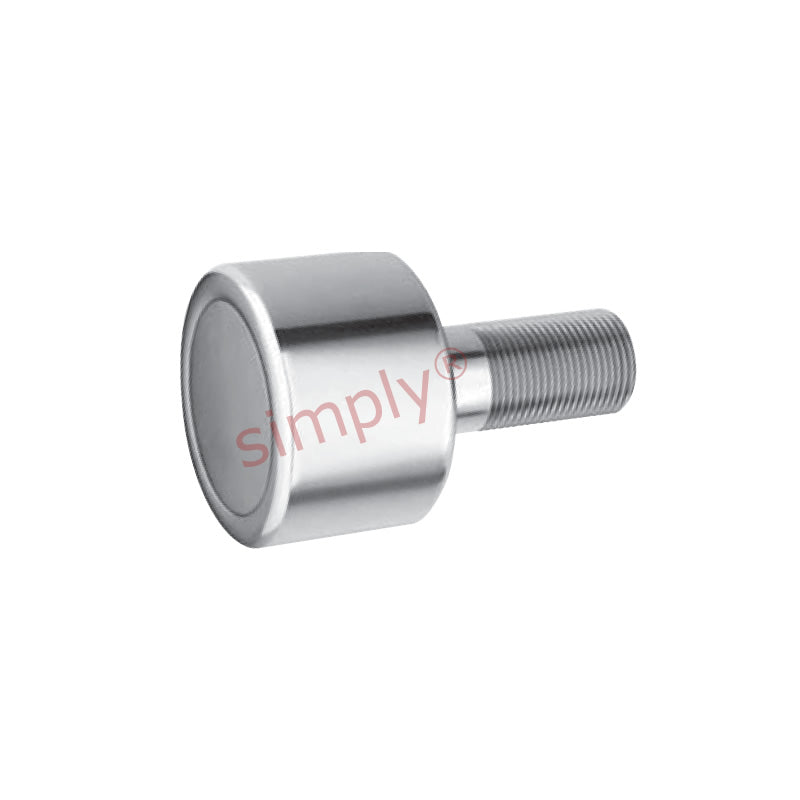

Major Brand PHR1-1/4 Hex Head Plain Hi-Roller Bearing 1-1/4 inch Outside Diameter

SKU: PHR-1-1/4

Major Brand PHR1-1/4 Hex Head Plain Hi-Roller Bearing 1-1/4 inch Outside Diameter

CHF 82.00 ex VAT
CHF 82.00
ex VAT
Equivalent to: PHR-125-A PLR-1-1/4 PCF-1-1/4 PLR-1-1/4
Not in stock

Quantity Price Breaks

3 CHF 72.98
4 CHF 68.88
9 CHF 68.06
19 CHF 67.24
29 CHF 66.42
39 CHF 65.60
49 CHF 61.50
59 CHF 60.68
249 CHF 59.86
499 CHF 59.04
999 CHF 57.40
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand PHR1-1/4 Hex Head Plain Hi-Roller Bearing 1-1/4 inch Outside Diameter
SKU: PHR-1-1/4

Major Brand PHR1-1/4 Hex Head Plain Hi-Roller Bearing 1-1/4 inch Outside Diameter

CHF 82.00 ex VAT
CHF 82.00
ex VAT

Description

Plain Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers.
Benefits: Ideal for use in environments where dust or high moisture is present.

Technical

A = 1.25 inch
B = 0.844 inch
C = 0.5 inch
D = 1.25 inch
E = 0.625 inch
Thread class 2A F = 1/2-20 UNF
G = 0.625 inch
S = 0.031 inch
Basic dynamic rating = 1350 lbs
Dynamic thrust load rating = 370 lbs
Max static capacity = 600 lbs
