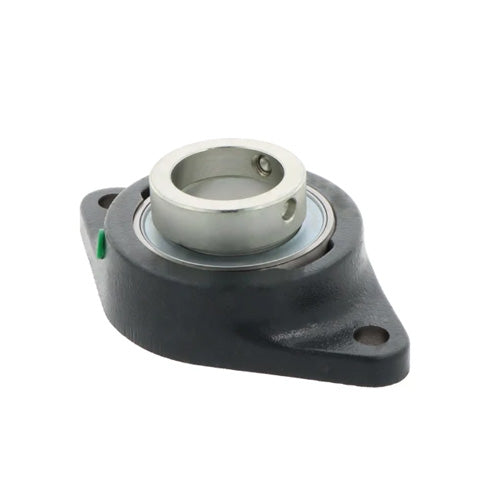

INA PCJT40XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 40mm Bore

SKU: PCJT40-XL-N-FA125-INA

INA PCJT40XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 40mm Bore

CHF 81.00 ex VAT
CHF 81.00
ex VAT
Not in stock

Quantity Price Breaks

4 CHF 72.09
9 CHF 68.04
19 CHF 67.23
29 CHF 66.42
39 CHF 65.61
49 CHF 64.80
59 CHF 60.75
69 CHF 59.94
79 CHF 59.13
89 CHF 58.32
99 CHF 56.70
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
INA PCJT40XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 40mm Bore
SKU: PCJT40-XL-N-FA125-INA

INA PCJT40XLNFA125 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert and Anti-Corrosion Protection 40mm Bore

CHF 81.00 ex VAT
CHF 81.00
ex VAT

Description

INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. This housing unit has a Corrotect® coating which makes them suitable for use if moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present.
Benefits: Re-lubricatable, eccentric collar, corrosion-resistant, tolerates misalignment of the shaft.
