SKU: PBS-DS-12B-15

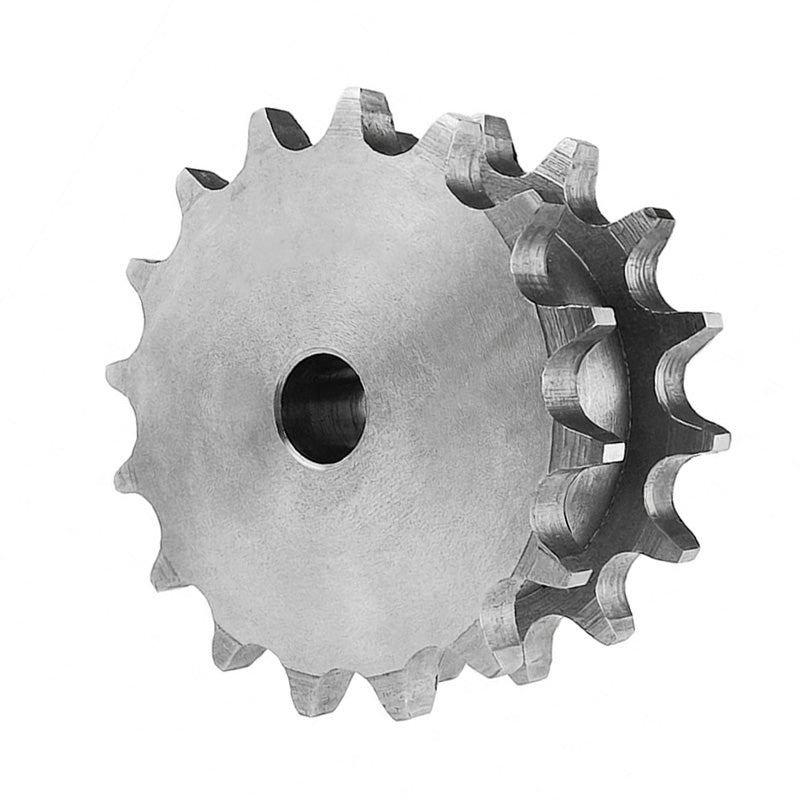

15 Tooth 12B Pilot Bore Double Simplex Sprocket for 3/4 inch Pitch Chain
- Regular price
- CHF 30.00 ex VAT
- Sale price
- CHF 30.00
- Regular price
-
Not in stock
Quantity Price Breaks
5
CHF 26.70
9
CHF 25.20
19
CHF 24.90
29
CHF 24.60
49
CHF 24.30
74
CHF 24.00
99
CHF 22.50
199
CHF 22.20
249
CHF 21.90
499
CHF 21.60
999
CHF 21.00
SKU:
PBS-DS-12B-15
15 Tooth 12B Pilot Bore Double Simplex Sprocket for 3/4 inch Pitch Chain
- Regular price
- CHF 30.00 ex VAT
- Sale price
- CHF 30.00
- Regular price
-
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

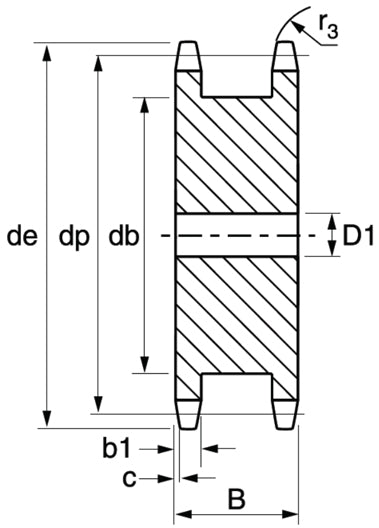

Technical
| No. of Teeth | = | 15 |
| Pitch Diameter dp | = | 91.63mm |
| Outer Diameter de | = | 99.8mm |
| Width B | = | 45mm |
| Hub Diameter N | = | 71mm |
| Chamfer C | = | 2mm |
| Tooth Radius r3 | = | 19mm |
| Tooth Width b1 | = | 11.2mm |
| Stock Bore D1 | = | 24mm |
| Weight | = | 1.141 kg |
