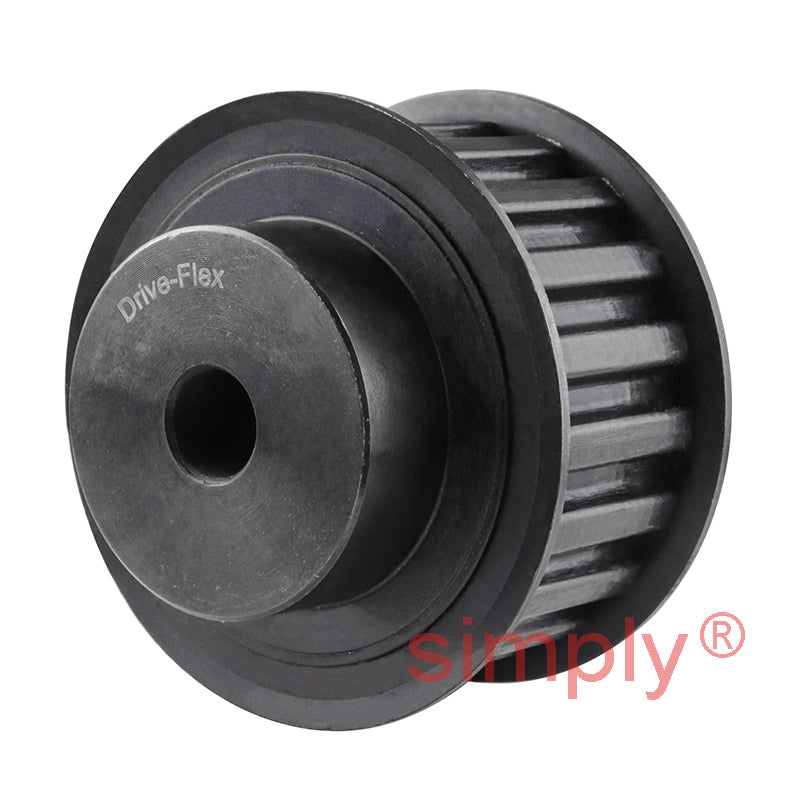

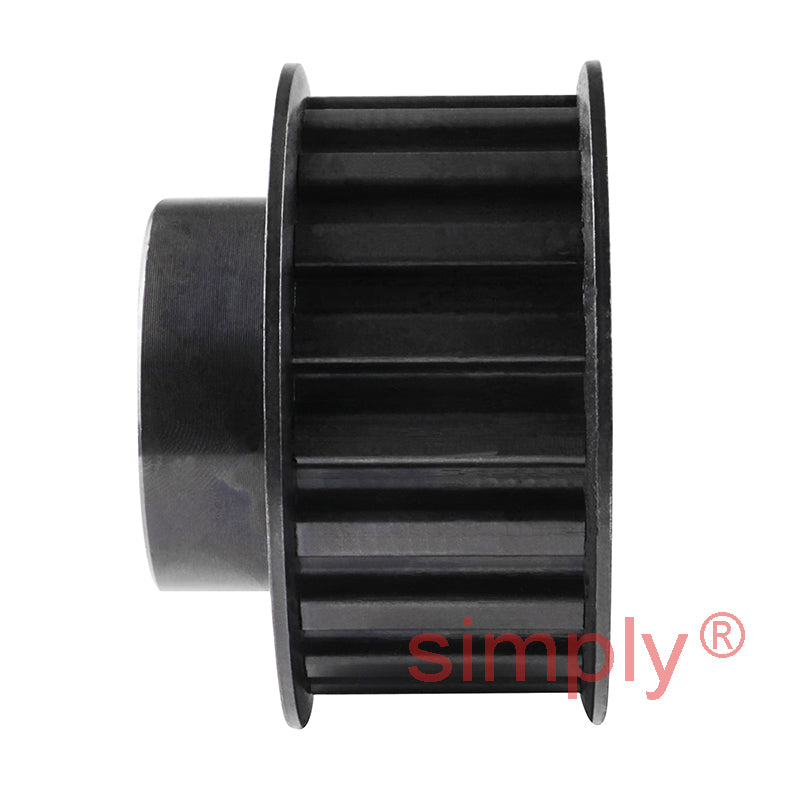

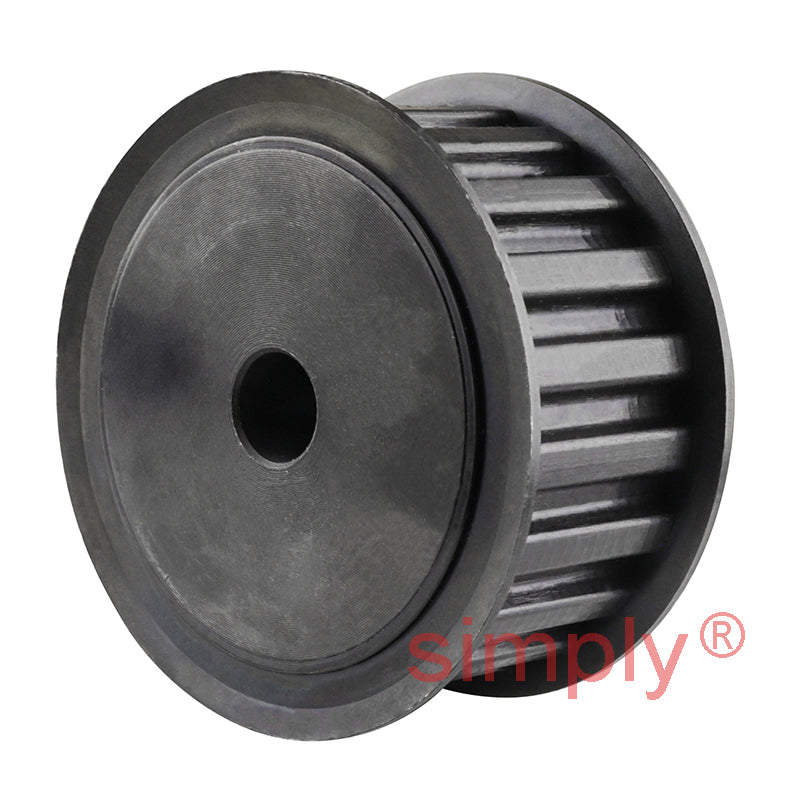

P45-H-075F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Steel Timing Pulley for 3/4 inch Wide Belts
P45-H-075F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Steel Timing Pulley for 3/4 inch Wide Belts
P45-H-075F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Steel Timing Pulley for 3/4 inch Wide Belts
P45-H-075F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Steel Timing Pulley for 3/4 inch Wide Belts
P45-H-075F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Steel Timing Pulley for 3/4 inch Wide Belts
P45-H-075F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Steel Timing Pulley for 3/4 inch Wide Belts

SKU: P45-H-075F

P45-H-075F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Steel Timing Pulley for 3/4 inch Wide Belts

CHF 50.00 ex VAT
CHF 50.00
ex VAT
Equivalent to: P45H075F
Not in stock

Quantity Price Breaks

3 CHF 44.50
5 CHF 42.00
9 CHF 41.50
19 CHF 41.00
49 CHF 40.50
74 CHF 40.00
99 CHF 37.50
199 CHF 37.00
249 CHF 36.50
499 CHF 36.00
999 CHF 35.00
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
P45-H-075F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Steel Timing Pulley for 3/4 inch Wide Belts
P45-H-075F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Steel Timing Pulley for 3/4 inch Wide Belts
P45-H-075F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Steel Timing Pulley for 3/4 inch Wide Belts
SKU: P45-H-075F

P45-H-075F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Steel Timing Pulley for 3/4 inch Wide Belts

CHF 50.00 ex VAT
CHF 50.00
ex VAT

Description

Imperial Pilot Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.

Technical

No. teeth = 45
Dp = 181.91mm
De = 180.54mm
Df = 192mm
Dm = 80mm
F = 26.4mm
L = 45mm
d = 14
No. flanges = 2
Material = Steel
Bore = Pilot Bored
Belt Width = 19.05mm = 0.75 (3/4) inch
Pitch = 12.7mm = 0.5 (1/2) inch
