SKU: P36-H-100F

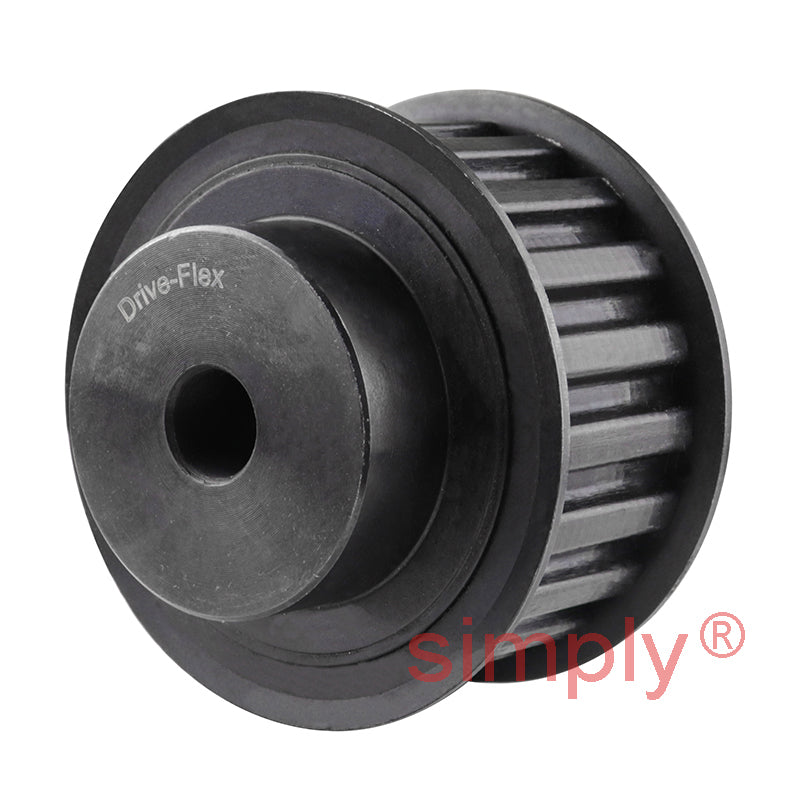

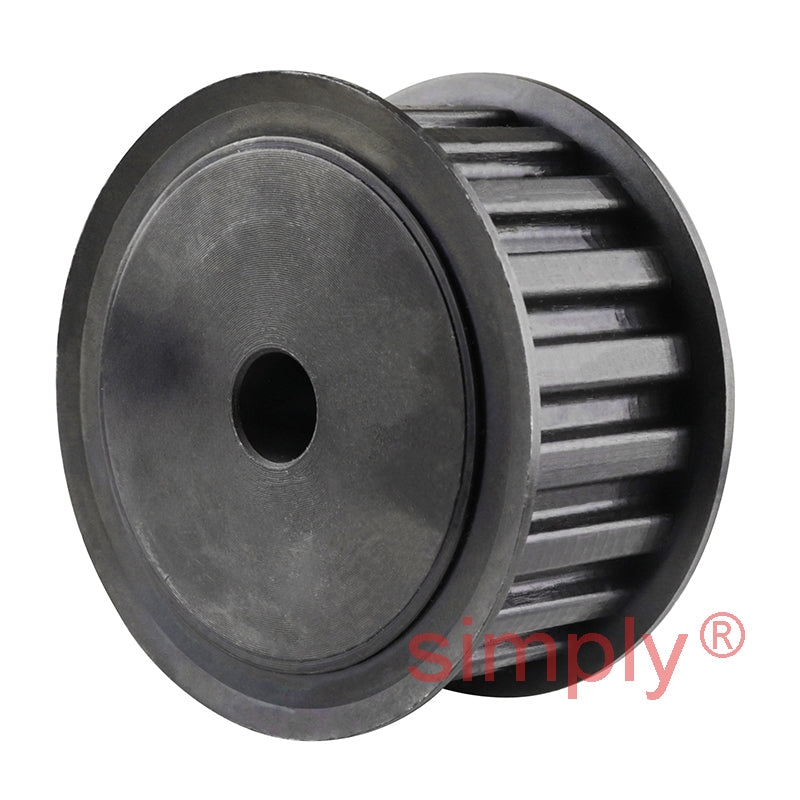

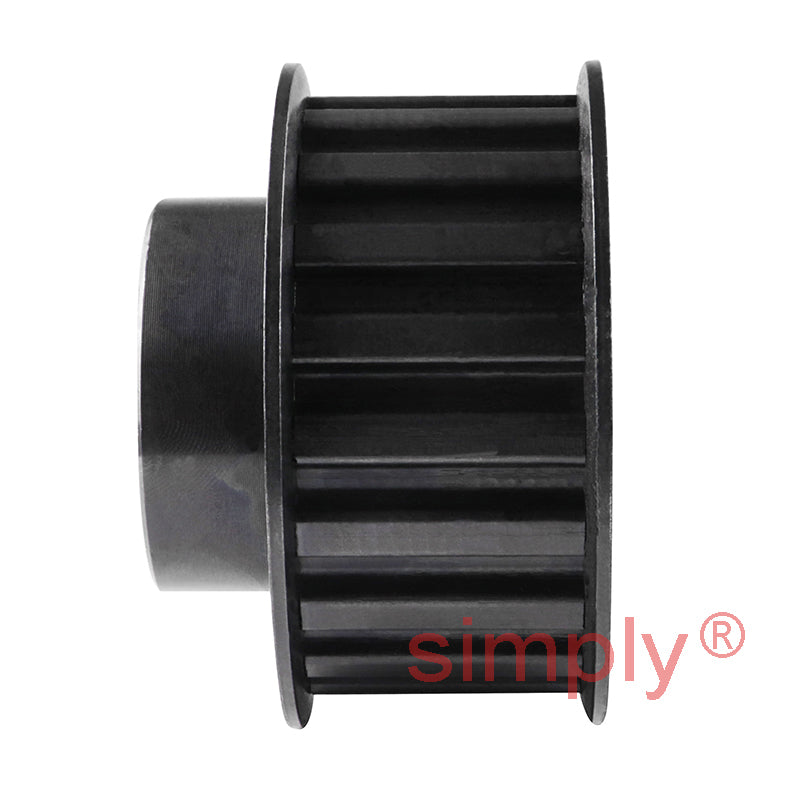

P36-H-100F - 1/2 inch Pitch 36 Tooth Flanged Pilot Bored Steel Timing Pulley for 1 inch Wide Belts
- Regular price
- CHF 41.00 ex VAT
- Sale price
- CHF 41.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 36.49
5
CHF 34.44
9
CHF 34.03
19
CHF 33.62
49
CHF 33.21
74
CHF 32.80
99
CHF 30.75
199
CHF 30.34
249
CHF 29.93
499
CHF 29.52
999
CHF 28.70
SKU:
P36-H-100F
P36-H-100F - 1/2 inch Pitch 36 Tooth Flanged Pilot Bored Steel Timing Pulley for 1 inch Wide Belts
- Regular price
- CHF 41.00 ex VAT
- Sale price
- CHF 41.00
- Regular price
-
Description
Imperial Pilot Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Technical
| No. teeth | = | 36 |
| Dp | = | 145.54mm |
| De | = | 144.16mm |
| Df | = | 150mm |
| Dm | = | 80mm |
| F | = | 31.8mm |
| L | = | 45mm |
| d | = | 14 |
| No. flanges | = | 2 |
| Material | = | Steel |
| Bore | = | Pilot Bored |
| Belt Width | = | 25.4mm = 1 inch |
| Pitch | = | 12.7mm = 0.5 (1/2) inch |
