SKU: P18-L-075F

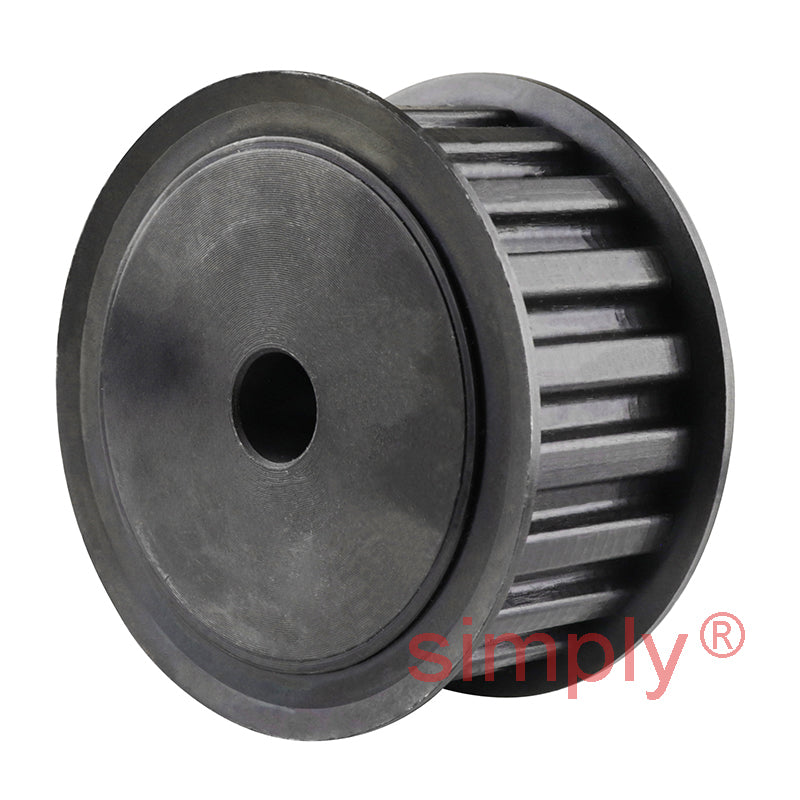

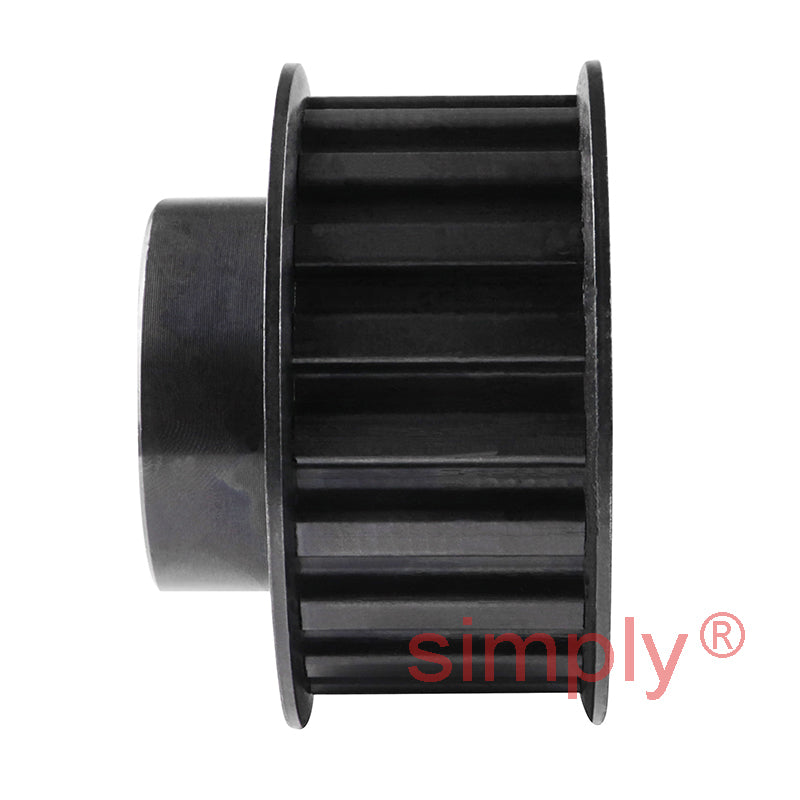

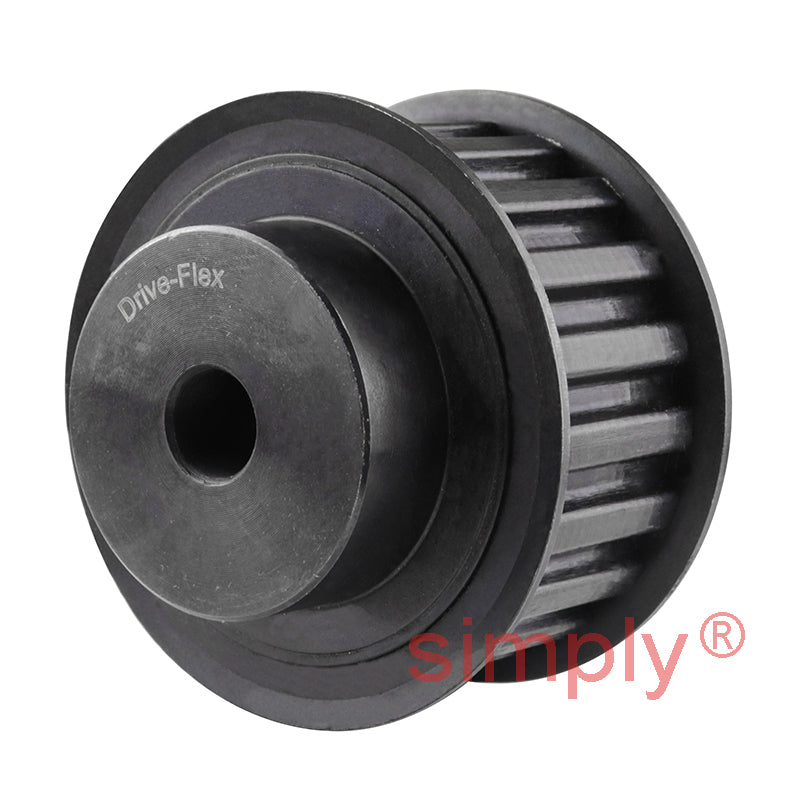

P18-L-075F - 3/8 inch Pitch 18 Tooth Flanged Pilot Bored Steel Timing Pulley for 3/4 inch Wide Belts
- Regular price
- CHF 14.00 ex VAT
- Sale price
- CHF 14.00
- Regular price
-
In stock
Quantity Price Breaks
3
CHF 12.46
5
CHF 11.76
9
CHF 11.62
19
CHF 11.48
49
CHF 11.34
74
CHF 11.20
99
CHF 10.50
199
CHF 10.36
249
CHF 10.22
499
CHF 10.08
999
CHF 9.80
SKU:
P18-L-075F
P18-L-075F - 3/8 inch Pitch 18 Tooth Flanged Pilot Bored Steel Timing Pulley for 3/4 inch Wide Belts
- Regular price
- CHF 14.00 ex VAT
- Sale price
- CHF 14.00
- Regular price
-
Description
Imperial Pilot Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Technical
| No. teeth | = | 18 |
| Dp | = | 54.59mm |
| De | = | 53.81mm |
| Df | = | 60mm |
| Dm | = | 40mm |
| F | = | 25.4mm |
| L | = | 38mm |
| d | = | 11mm |
| No. flanges | = | 2 |
| Material | = | Steel |
| Bore | = | Pilot Bored |
| Belt Width | = | 19.05mm = 0.75 (3/4) inch |
| Pitch | = | 9.53mm = 0.375 (3/8) inch |
