SKU: P16-H-100F

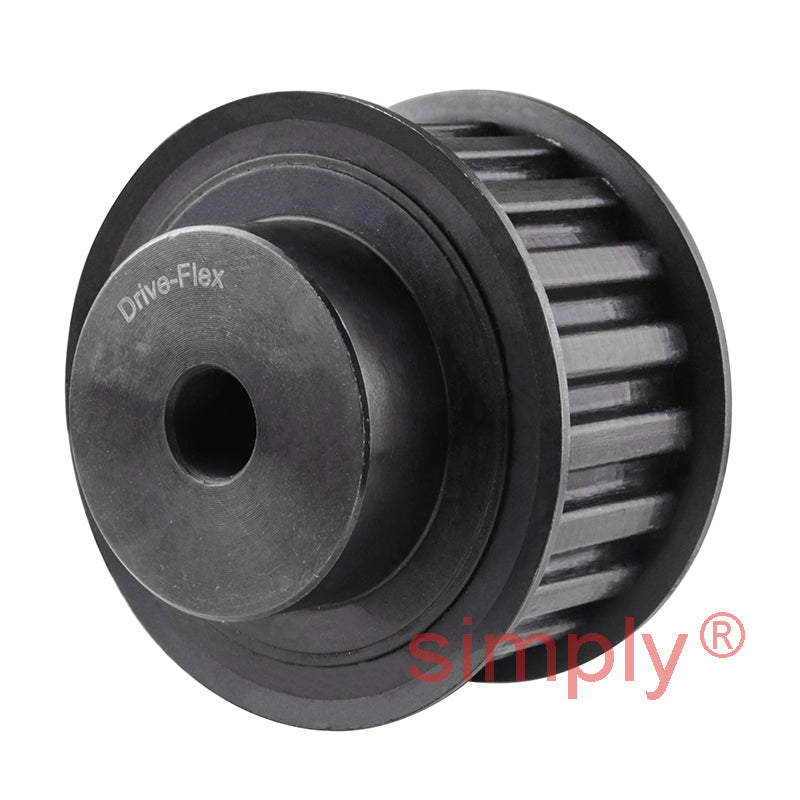

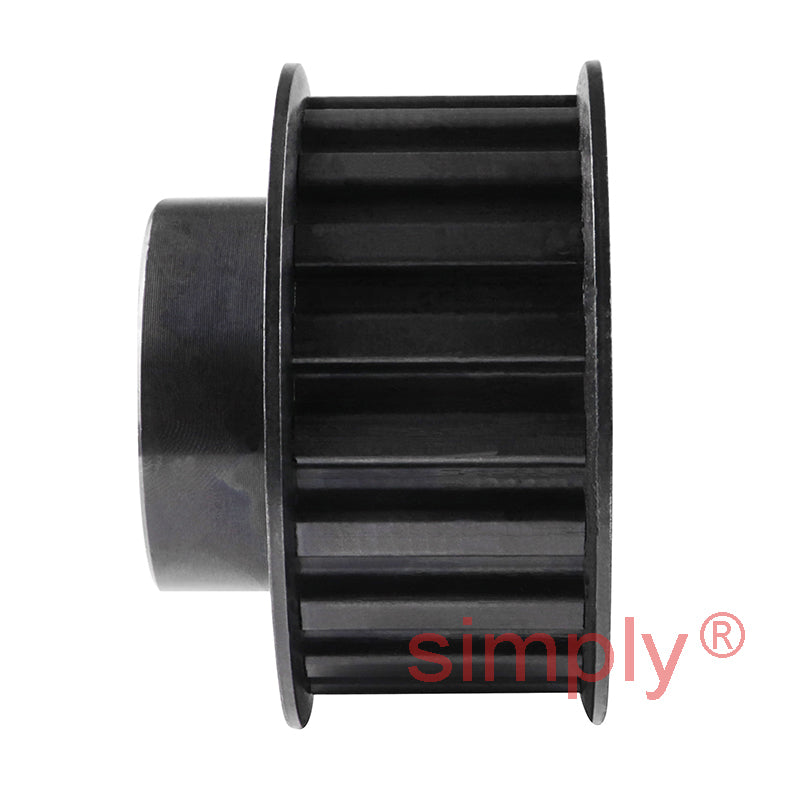

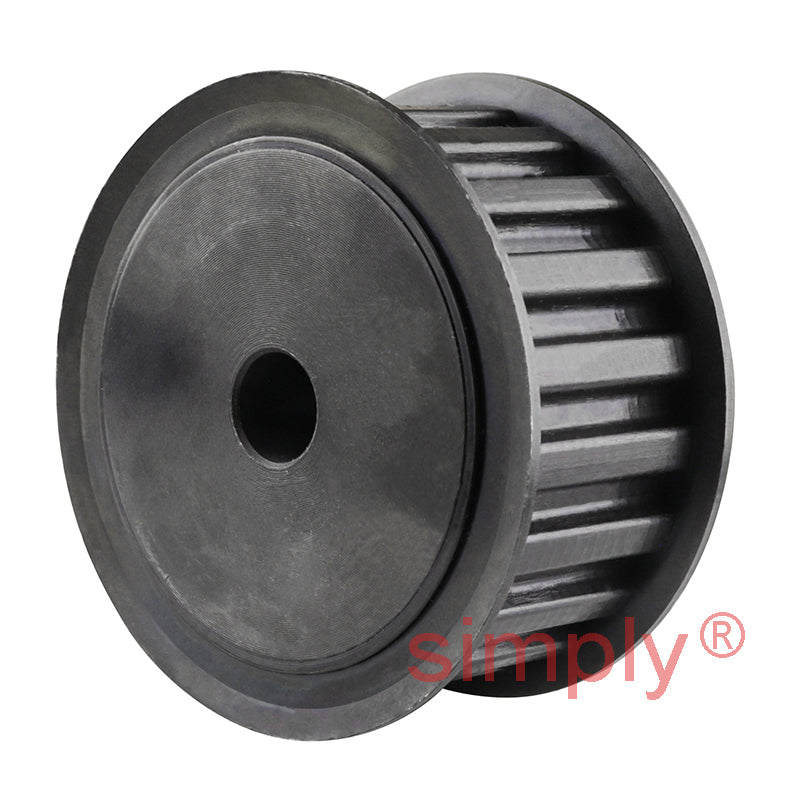

P16-H-100F - 1/2 inch Pitch 16 Tooth Flanged Pilot Bored Steel Timing Pulley for 1 inch Wide Belts
- Regular price
- CHF 15.00 ex VAT
- Sale price
- CHF 15.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 13.35
5
CHF 12.60
9
CHF 12.45
19
CHF 12.30
49
CHF 12.15
74
CHF 12.00
99
CHF 11.25
199
CHF 11.10
249
CHF 10.95
499
CHF 10.80
999
CHF 10.50
SKU:
P16-H-100F
P16-H-100F - 1/2 inch Pitch 16 Tooth Flanged Pilot Bored Steel Timing Pulley for 1 inch Wide Belts
- Regular price
- CHF 15.00 ex VAT
- Sale price
- CHF 15.00
- Regular price
-
Description
Imperial Pilot Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Technical
| No. teeth | = | 16 |
| Dp | = | 54.67mm |
| De | = | 63.31mm |
| Df | = | 70mm |
| Dm | = | 45mm |
| F | = | 31.8mm |
| L | = | 45mm |
| d | = | 11 |
| No. flanges | = | 2 |
| Material | = | Steel |
| Bore | = | Pilot Bored |
| Belt Width | = | 25.4mm = 1 inch |
| Pitch | = | 12.7mm = 0.5 (1/2) inch |
