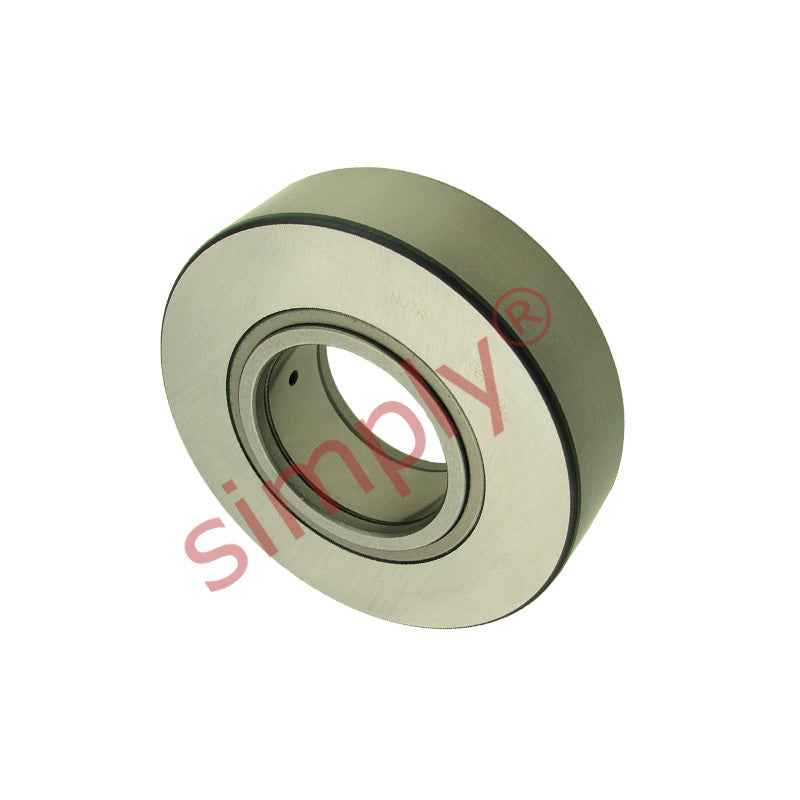

NUTR50110A Budget Support Roller With Axial Guidance Crowned Outer 50x110x32mm

SKU: NUTR50110A-EU

NUTR50110A Budget Support Roller With Axial Guidance Crowned Outer 50x110x32mm

CHF 108.00 ex VAT
CHF 108.00
ex VAT
In stock

Quantity Price Breaks

10 CHF 96.12
19 CHF 90.72
29 CHF 89.64
39 CHF 88.56
49 CHF 87.48
74 CHF 86.40
99 CHF 81.00
199 CHF 79.92
249 CHF 78.84
499 CHF 77.76
999 CHF 75.60
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
NUTR50110A Budget Support Roller With Axial Guidance Crowned Outer 50x110x32mm
SKU: NUTR50110A-EU

NUTR50110A Budget Support Roller With Axial Guidance Crowned Outer 50x110x32mm

CHF 108.00 ex VAT
CHF 108.00
ex VAT

Description

Budget NUTR Axial Guidance Support Rollers: This type of support roller incorporates a full complement needle roller arrangement and permits high loads. Axial support is provided by two loose flange rings via the roller complement. They are able to accommodate heavy radial and axial loads and relatively high speed operation but will require frequent re-lubrication. For heavy shock load applications the NUTR series with 4 and 5 figure denominations should be used. NUTR rollers have an enhanced roller profile to enable better stress distribution.
Benefits: High speed operation, shock loads, heavy loads, axially guided, better stress distribution

Technical

D = 110mm
d = 50mm
C = 30mm
B = 32mm
d1 = 60mm
r min = 1.1mm
r1 min = 0.6mm
Speed rating = 1300 rpm
Basic dynamic load = 78100 N
Basic static load = 116000 N
Fatigue load limit Pu = 14300 N
Max radial dynamic force = 98000 N
Max radial static force = 140000 N
Weight = 1700 g
