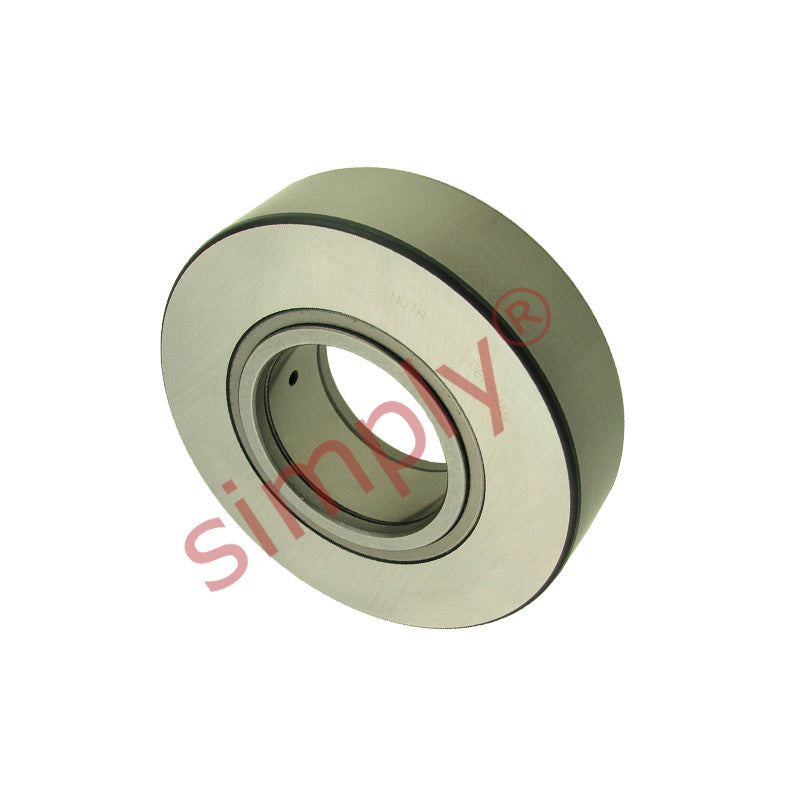

NUTR30A Budget Support Roller With Axial Guidance Crowned Outer 30x62x29mm

SKU: NUTR30A-EU

NUTR30A Budget Support Roller With Axial Guidance Crowned Outer 30x62x29mm

CHF 50.00 ex VAT
CHF 50.00
ex VAT
Not in stock

Quantity Price Breaks

10 CHF 44.50
19 CHF 42.00
29 CHF 41.50
39 CHF 41.00
49 CHF 40.50
74 CHF 40.00
99 CHF 37.50
199 CHF 37.00
249 CHF 36.50
499 CHF 36.00
999 CHF 35.00
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
NUTR30A Budget Support Roller With Axial Guidance Crowned Outer 30x62x29mm
SKU: NUTR30A-EU

NUTR30A Budget Support Roller With Axial Guidance Crowned Outer 30x62x29mm

CHF 50.00 ex VAT
CHF 50.00
ex VAT

Description

Budget NUTR Axial Guidance Support Rollers: This type of support roller incorporates a full complement needle roller arrangement and permits high loads. Axial support is provided by two loose flange rings via the roller complement. They are able to accommodate heavy radial and axial loads and relatively high speed operation but will require frequent re-lubrication. For heavy shock load applications the NUTR series with 4 and 5 figure denominations should be used. NUTR rollers have an enhanced roller profile to enable better stress distribution.
Benefits: High speed operation, shock loads, heavy loads, axially guided, better stress distribution

Technical

D = 62mm
d = 30mm
C = 28mm
B = 29mm
d1 = 38mm
r min = 1mm
r1 min = 0.5mm
Speed rating = 2600 rpm
Basic dynamic load = 41300 N
Basic static load = 47500 N
Fatigue load limit Pu = 5850 N
Max radial dynamic force = 24000 N
Max radial static force = 34500 N
Weight = 470 g
