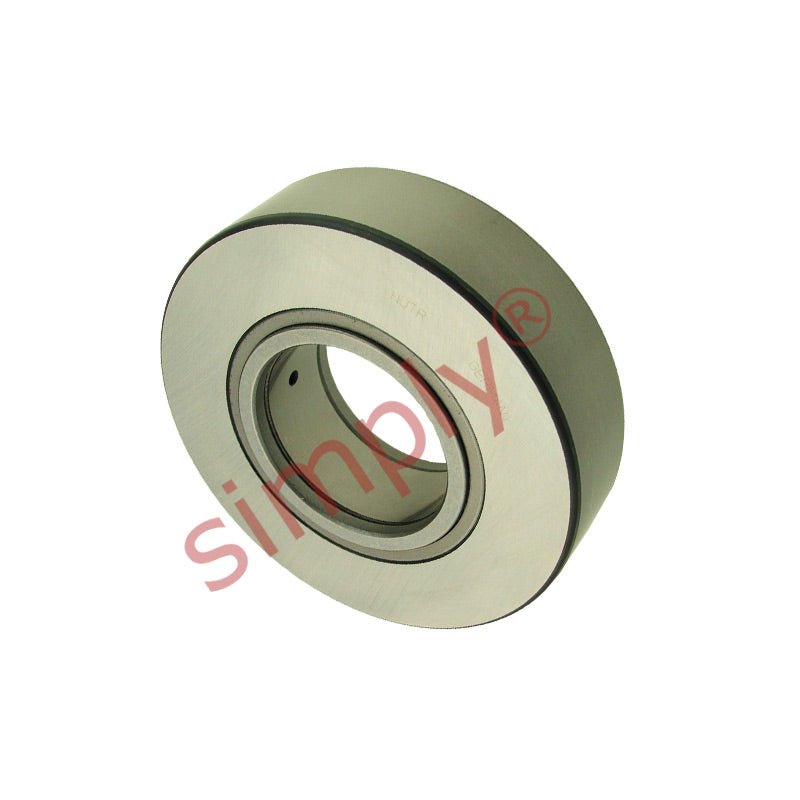

NUTR2562X Budget Support Roller With Axial Guidance Parallel Non-Crowned Outer 25x62x25mm

SKU: NUTR2562X-EU

NUTR2562X Budget Support Roller With Axial Guidance Parallel Non-Crowned Outer 25x62x25mm

CHF 80.00 ex VAT
CHF 80.00
ex VAT
In stock

Quantity Price Breaks

10 CHF 71.20
19 CHF 67.20
29 CHF 66.40
39 CHF 65.60
49 CHF 64.80
74 CHF 64.00
99 CHF 60.00
199 CHF 59.20
249 CHF 58.40
499 CHF 57.60
999 CHF 56.00
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
NUTR2562X Budget Support Roller With Axial Guidance Parallel Non-Crowned Outer 25x62x25mm
SKU: NUTR2562X-EU

NUTR2562X Budget Support Roller With Axial Guidance Parallel Non-Crowned Outer 25x62x25mm

CHF 80.00 ex VAT
CHF 80.00
ex VAT

Description

Budget NUTR Axial Guidance Support Rollers: This type of support roller incorporates a full complement needle roller arrangement and permits high loads. Axial support is provided by two loose flange rings via the roller complement. They are able to accommodate heavy radial and axial loads and relatively high speed operation but will require frequent re-lubrication. For heavy shock load applications the NUTR series with 4 and 5 figure denominations should be used. NUTR rollers have an enhanced roller profile to enable better stress distribution.
Benefits: High speed operation, shock loads, heavy loads, axially guided, better stress distribution

Technical

D = 62mm
d = 25mm
C = 24mm
B = 25mm
d1 = 31mm
r min = 1mm
r1 min = 0.5mm
Speed rating = 3400 rpm
Basic dynamic load = 35800 N
Basic static load = 48000 N
Fatigue load limit Pu = 5600 N
Max radial dynamic force = 44000 N
Max radial static force = 63000 N
Weight = 450 g
