SKU: NU330ECM-EU

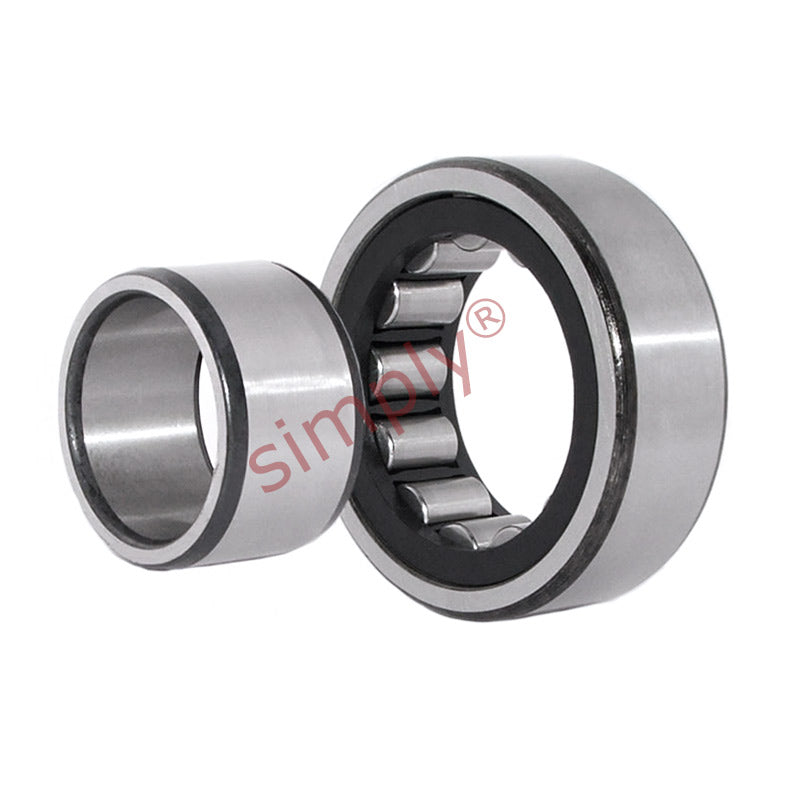

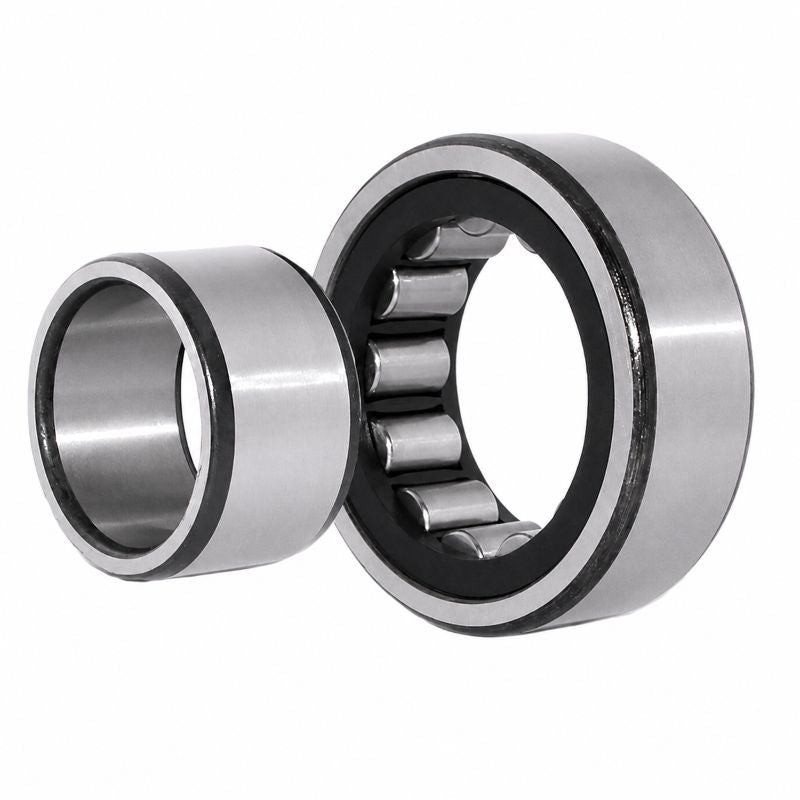

NU330 Budget Single Row Cylindrical Roller Bearing 150x320x65mm
- Regular price
- CHF 1,295.00 ex VAT
- Sale price
- CHF 1,295.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 1,152.55
19
CHF 1,087.80
29
CHF 1,074.85
39
CHF 1,061.90
49
CHF 1,048.95
74
CHF 1,036.00
99
CHF 971.25
199
CHF 958.30
249
CHF 945.35
499
CHF 932.40
999
CHF 906.50
SKU:
NU330ECM-EU
NU330 Budget Single Row Cylindrical Roller Bearing 150x320x65mm
- Regular price
- CHF 1,295.00 ex VAT
- Sale price
- CHF 1,295.00
- Regular price
-
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
Technical
| d | = | 150mm |
| D | = | 320mm |
| B | = | 65mm |
| Dynamic load C | = | 900 kN |
| Static load Co | = | 965 kN |
| Fatigue load limit Pu | = | 100 kN |
| Reference speed | = | 2200 rpm |
| Limiting speed | = | 2600 rpm |
| Weight | = | 26.3 kg |
| Cage options | = | MA |
| d1 | = | 209mm |
| D1 | = | 270mm |
| F, E | = | 193mm |
| r1r2 min | = | 4mm |
| r3r4 min | = | 4mm |
| s | = | 4mm |
| da min | = | 167mm |
| da max | = | 189mm |
| db min | = | 196mm |
| Da max | = | 303mm |
| ra max | = | 3mm |
| rb max | = | 3mm |
| kr | = | 0.15 |
| Angle ring | = | HJ330EC |
| Angle ring weight | = | 2.35kg |
| B1 | = | 15mm |
| B2 | = | 25mm |
