SKU: NU2311-CDX

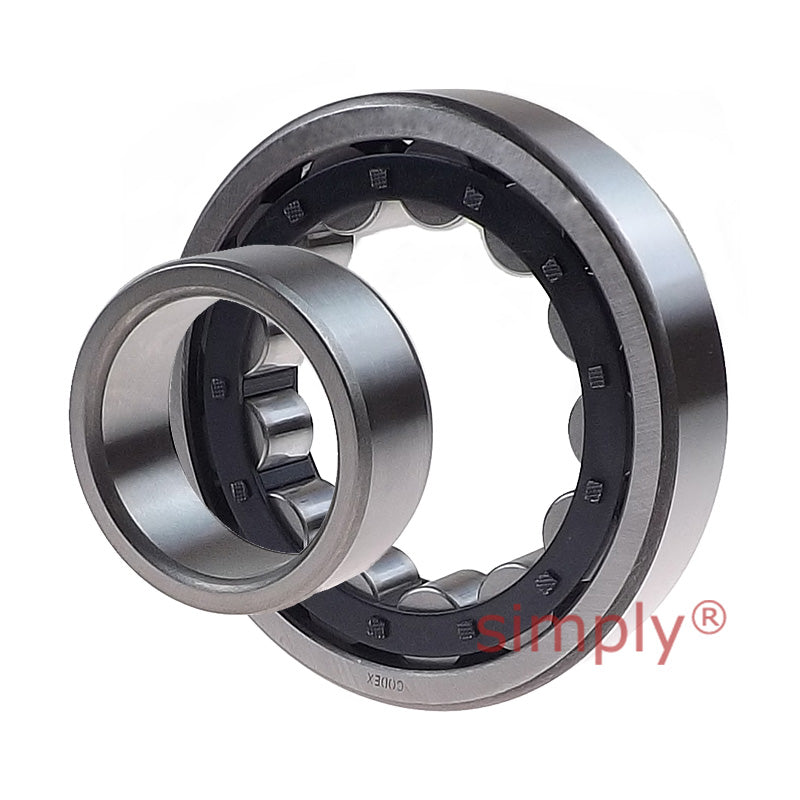

Codex NU2311 Single Row Cylindrical Roller Bearing 55x120x43mm
- Regular price
- CHF 121.00 ex VAT
- Sale price
- CHF 121.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 107.69
19
CHF 101.64
29
CHF 100.43
39
CHF 99.22
49
CHF 98.01
74
CHF 96.80
99
CHF 90.75
199
CHF 89.54
249
CHF 88.33
499
CHF 87.12
999
CHF 84.70
SKU:
NU2311-CDX
Codex NU2311 Single Row Cylindrical Roller Bearing 55x120x43mm
- Regular price
- CHF 121.00 ex VAT
- Sale price
- CHF 121.00
- Regular price
-
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
Technical
| d | = | 55mm |
| D | = | 120mm |
| B | = | 43mm |
| Dynamic load C | = | 232 kN |
| Static load Co | = | 232 kN |
| Fatigue load limit Pu | = | 30.5 kN |
| Reference speed | = | 6000 rpm |
| Limiting speed | = | 7000 rpm |
| Weight | = | 2.2 kg |
| Cage options | = | ML |
| d1 | = | 77.5mm |
| D1 | = | 101mm |
| F, E | = | 70.5mm |
| r1r2 min | = | 2mm |
| r3r4 min | = | 2mm |
| s | = | 3.5mm |
| da min | = | 66mm |
| da max | = | 68mm |
| db min | = | 73mm |
| Da max | = | 109mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.25 |
| Angle ring | = | HJ2311EC |
| Angle ring weight | = | 0.2kg |
| B1 | = | 9mm |
| B2 | = | 15.5mm |
