SKU: NU1018ML-EU
NU1018 Budget Single Row Cylindrical Roller Bearing 90x140x24mm
- Regular price
- CHF 225.00 ex VAT
- Sale price
- CHF 225.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 200.25
19
CHF 189.00
29
CHF 186.75
39
CHF 184.50
49
CHF 182.25
74
CHF 180.00
99
CHF 168.75
199
CHF 166.50
249
CHF 164.25
499
CHF 162.00
999
CHF 157.50
SKU:
NU1018ML-EU
NU1018 Budget Single Row Cylindrical Roller Bearing 90x140x24mm
- Regular price
- CHF 225.00 ex VAT
- Sale price
- CHF 225.00
- Regular price
-
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |

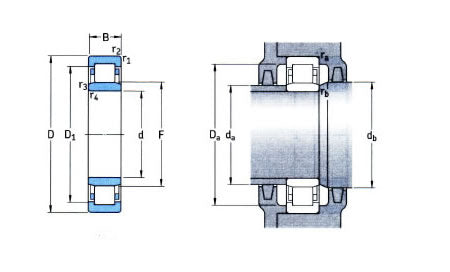

Technical
| d | = | 90mm |
| D | = | 140mm |
| B | = | 24mm |
| Dynamic load C | = | 80.9 kN |
| Static load Co | = | 104 kN |
| Fatigue load limit Pu | = | 12.7 kN |
| Reference speed | = | 5600 rpm |
| Limiting speed | = | 8500 rpm |
| Weight | = | 1.35 kg |
| D1 | = | 122mm |
| F, E | = | 103mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.1mm |
| s | = | 3.5mm |
| da min | = | 96mm |
| da max | = | 101mm |
| db min | = | 106mm |
| Da max | = | 133mm |
| ra max | = | 1.5mm |
| rb max | = | 1mm |
| kr | = | 0.1 |
