SKU: NTA4860-TRA4860

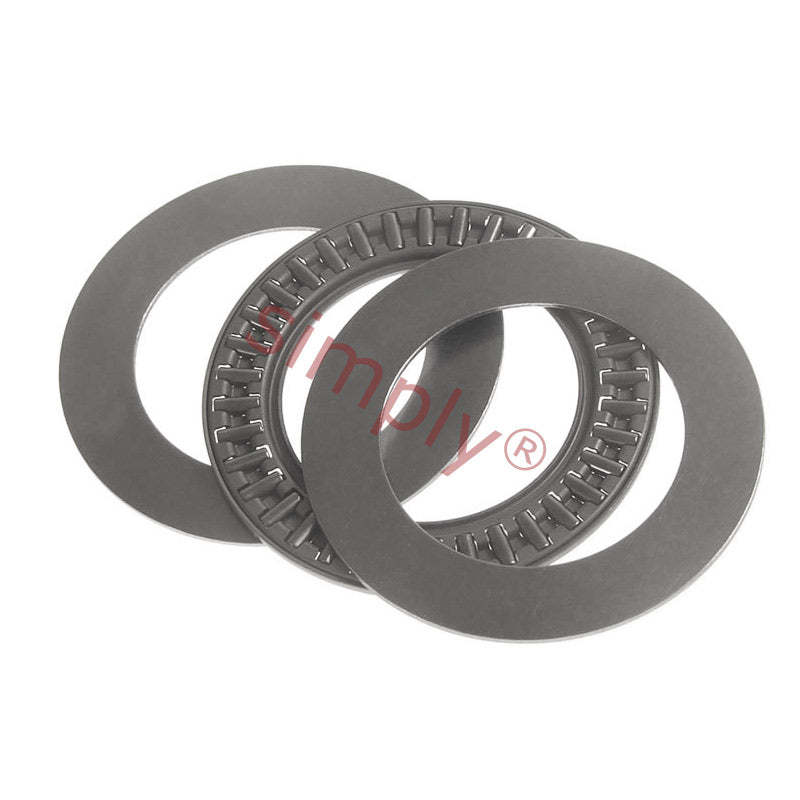

NTA4860 Needle Roller Cage Thrust Assembly with 2 TRA4860 Washers 3x3.75x0.1406 inch
- Regular price
- CHF 18.00 ex VAT
- Sale price
- CHF 18.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 16.02
19
CHF 15.12
29
CHF 14.94
39
CHF 14.76
49
CHF 14.58
74
CHF 14.40
99
CHF 13.50
199
CHF 13.32
249
CHF 13.14
499
CHF 12.96
999
CHF 12.60
SKU:
NTA4860-TRA4860
NTA4860 Needle Roller Cage Thrust Assembly with 2 TRA4860 Washers 3x3.75x0.1406 inch
- Regular price
- CHF 18.00 ex VAT
- Sale price
- CHF 18.00
- Regular price
-
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |

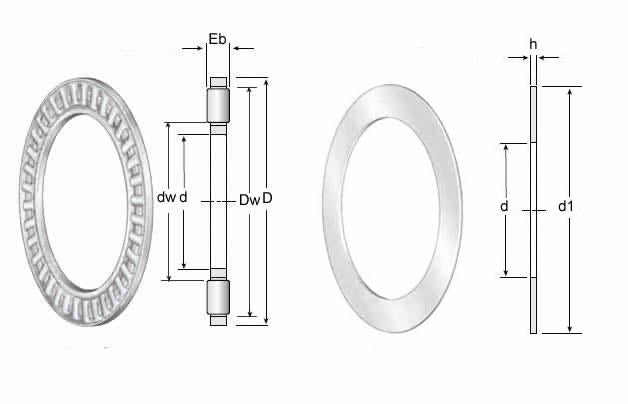

Technical
| d | = | 3 inch |
| D | = | 3.75 inch |
| Eb | = | 0.0806 inch |
| Dw | = | 3.09 inch |
| dw | = | 3.57 inch |
| Dynamic load | = | 26.96 kN |
| Static load | = | 172.10 kN |
| Limiting speed | = | 4400 rpm |
| Weight | = | 0.021792 kg |
| Washer | = | Dimensions |
| d | = | 3.000 inch |
| d1 | = | 3.75 inch |
| h min | = | 0.03 inch |
| h max | = | 0.032 inch |
| Pilot min | = | 2.997 inch |
| Pilot max | = | 3.000 inch |
| Dia to clear washer | = | 3.781 inch |
| Weight | = | 0.034 lbs |
