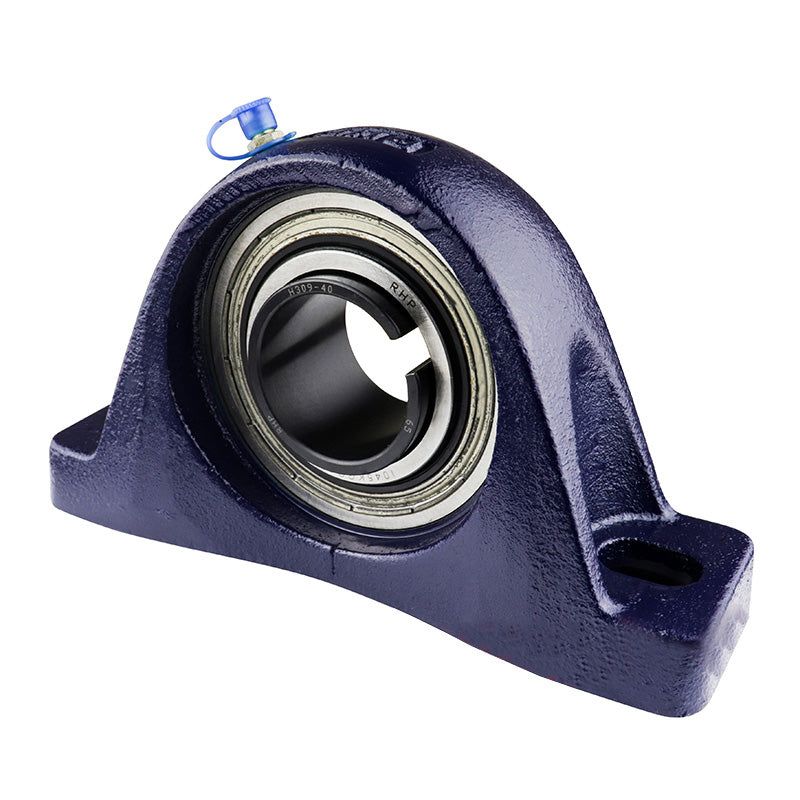

RHP NP1035-30K Two Bolt Cast Iron Pillow Block and 30mm Bore Taper Insert with Sleeve and Lock Nut

SKU: NP1035-30K-RHP

RHP NP1035-30K Two Bolt Cast Iron Pillow Block and 30mm Bore Taper Insert with Sleeve and Lock Nut

CHF 80.00 ex VAT
CHF 80.00
ex VAT
Not in stock

Quantity Price Breaks

10+ CHF 71.20
19+ CHF 67.20
29+ CHF 66.40
39+ CHF 65.60
49+ CHF 64.80
74+ CHF 64.00
99+ CHF 60.00
199+ CHF 59.20
249+ CHF 58.40
499+ CHF 57.60
999+ CHF 56.00
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP NP1035-30K Two Bolt Cast Iron Pillow Block and 30mm Bore Taper Insert with Sleeve and Lock Nut
SKU: NP1035-30K-RHP

RHP NP1035-30K Two Bolt Cast Iron Pillow Block and 30mm Bore Taper Insert with Sleeve and Lock Nut

CHF 80.00 ex VAT
CHF 80.00
ex VAT

Description

RHP NP K-XX Series Plummer / Pillow Housings: Supplied with a sealed full width taper sleeve bearing insert fitted in the housing complete with taper sleeve, lock nut and tab washer and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer.
The insert can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, taper sleeve fixing, insert extends to front and back
