SKU: NKX60-MB

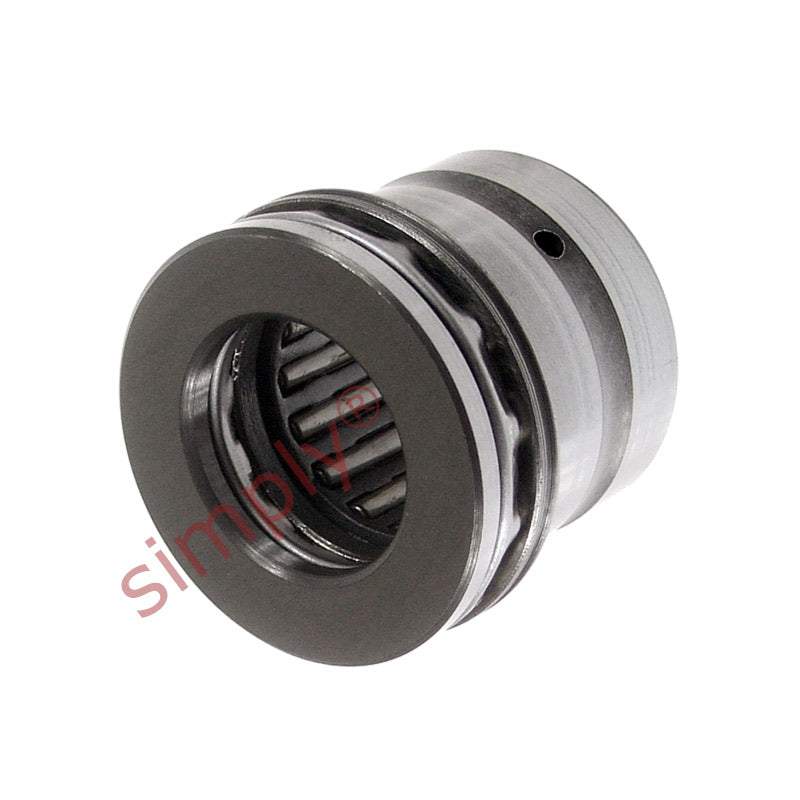

Major Brand NKX60 Needle Roller Thrust Ball Bearing Without Cover 60x72x40mm
- Regular price
- CHF 219.00 ex VAT
- Sale price
- CHF 219.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 194.91
19
CHF 183.96
29
CHF 181.77
39
CHF 179.58
49
CHF 177.39
74
CHF 175.20
99
CHF 164.25
199
CHF 162.06
249
CHF 159.87
499
CHF 157.68
999
CHF 153.30
SKU:
NKX60-MB
Major Brand NKX60 Needle Roller Thrust Ball Bearing Without Cover 60x72x40mm
- Regular price
- CHF 219.00 ex VAT
- Sale price
- CHF 219.00
- Regular price
-
Description
Needle Roller / Ball Thrust Combination: Of a separable design the needle roller and cage assembly with the outer ring and housing washer, the ball and cage thrust assembly can all be mounted separately. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
Technical

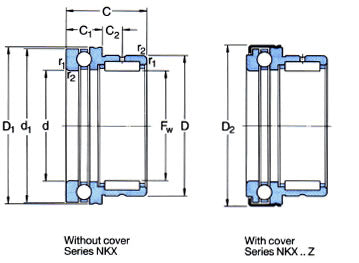

| Fw | = | 60mm |
| D | = | 72mm |
| C | = | 40mm |
| Radial dynamic load | = | 41800 N |
| Radial static load | = | 96500 N |
| Axial dynamic load | = | 41600 N |
| Axial static load | = | 122000 N |
| Fatigue load limit radial Pu | = | 11800 N |
| Fatigue load limit axial Pu | = | 4550 N |
| Min load factor | = | 77 |
| Speed in grease | = | 2600 rpm |
| Speed in oil | = | 3600 rpm |
| C1 | = | 17mm |
| C2 | = | 12mm |
| d | = | 60 |
