SKU: NKX17Z-INA

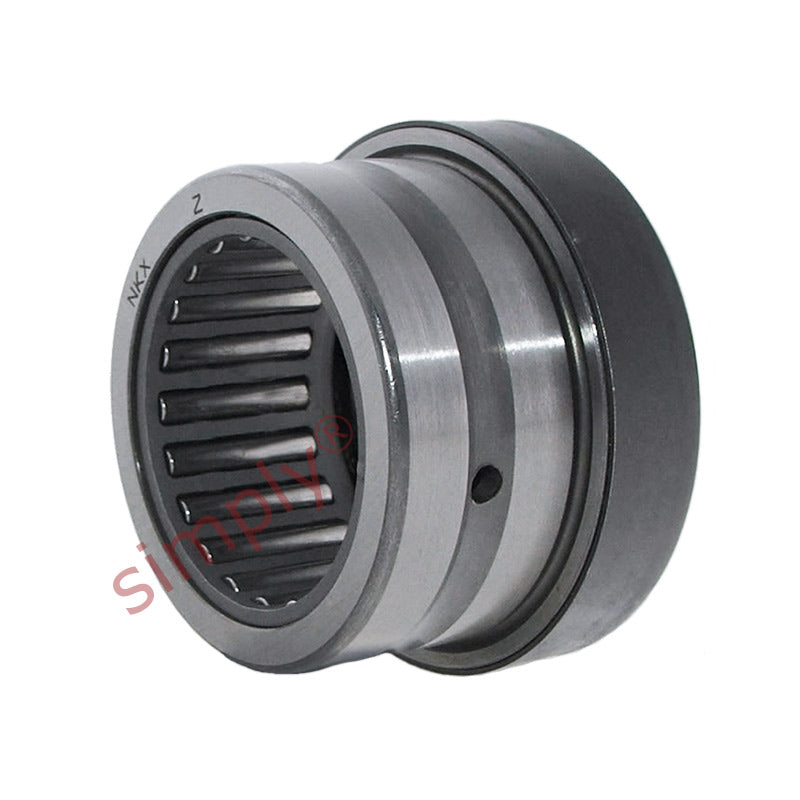

INA NKX17Z Needle Roller Thrust Ball Bearing with Closure Ring and Cover 17x26x25mm
- Regular price
- CHF 45.00 ex VAT
- Sale price
- CHF 45.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 40.05
19+
CHF 37.80
29+
CHF 37.35
39+
CHF 36.90
49+
CHF 36.45
74+
CHF 36.00
99+
CHF 33.75
199+
CHF 33.30
249+
CHF 32.85
499+
CHF 32.40
999+
CHF 31.50
SKU:
NKX17Z-INA
INA NKX17Z Needle Roller Thrust Ball Bearing with Closure Ring and Cover 17x26x25mm
- Regular price
- CHF 45.00 ex VAT
- Sale price
- CHF 45.00
- Regular price
-
Description
Needle Roller / Ball Thrust Combination: Of a non separable design has a cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication as the cover acts to retain the lubricant. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
Technical
| Fw | = | 17mm |
| D | = | 26mm |
| C | = | 25mm |
| Radial dynamic load | = | 12300 N |
| Radial static load | = | 16600 N |
| Axial dynamic load | = | 10800 N |
| Axial static load | = | 19600 N |
| Fatigue load limit radial Pu | = | 1960 N |
| Fatigue load limit axial Pu | = | 735 N |
| Min load factor | = | 2 |
| Speed in grease | = | 6300 rpm |
| Speed in oil | = | 8500 rpm |
| C1 | = | 9mm |
| C2 | = | 8mm |
| d | = | 17 |
