SKU: NKIS65-MB

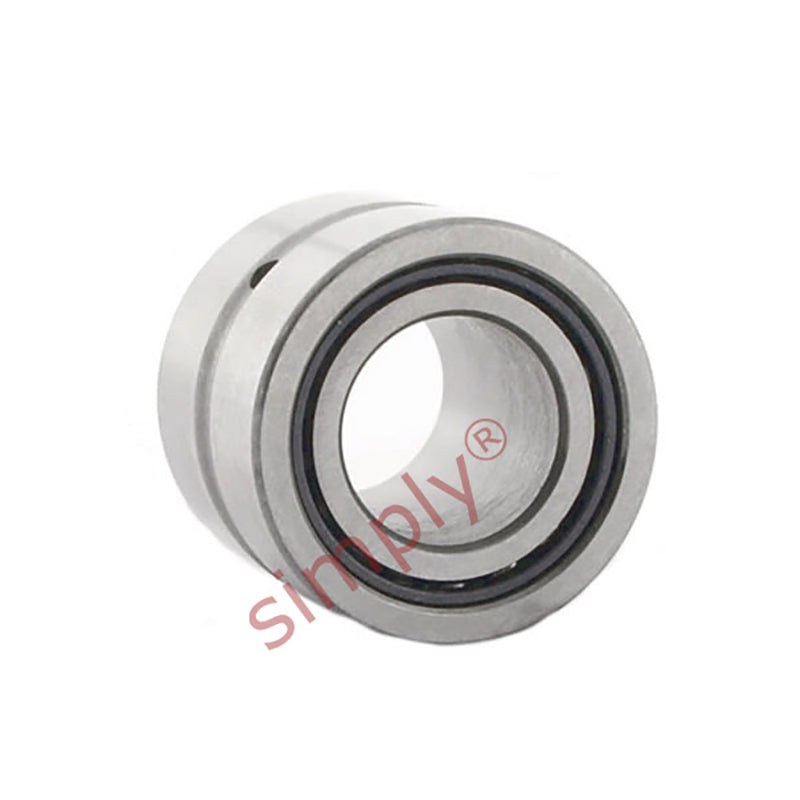

Major Brand NKIS65 Needle Roller Bearing With Shaft Sleeve 65x95x28mm
- Regular price
- CHF 150.00 ex VAT
- Sale price
- CHF 150.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 133.50
19
CHF 126.00
29
CHF 124.50
39
CHF 123.00
49
CHF 121.50
74
CHF 120.00
99
CHF 112.50
199
CHF 111.00
249
CHF 109.50
499
CHF 108.00
999
CHF 105.00
SKU:
NKIS65-MB
Major Brand NKIS65 Needle Roller Bearing With Shaft Sleeve 65x95x28mm
- Regular price
- CHF 150.00 ex VAT
- Sale price
- CHF 150.00
- Regular price
-
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |

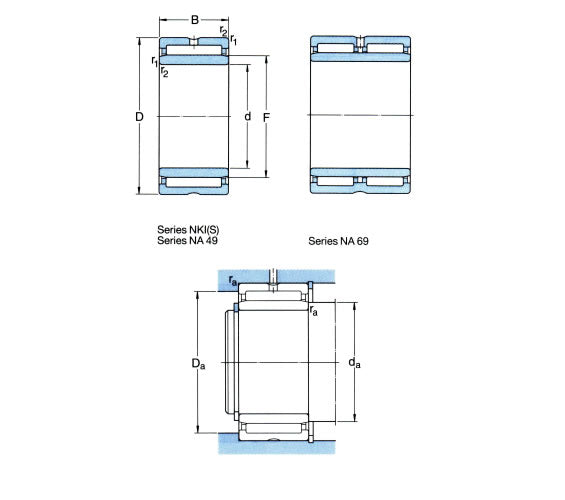

Technical
| d | = | 65mm |
| D | = | 95mm |
| B | = | 28mm |
| Dynamic load | = | 70400 N |
| Static load | = | 132000 N |
| Fatigue load limit Pu | = | 17000 N |
| Speed in grease | = | 3800 rpm |
| Speed in oil | = | 5300 rpm |
| F | = | 75mm |
| r1r2 | = | 1.1mm |
| S (axial disp) | = | 2mm |
| da min | = | 71.5mm |
| Da max | = | 88.5mm |
| ra max | = | 1mm |
