SKU: NKIS35-MB

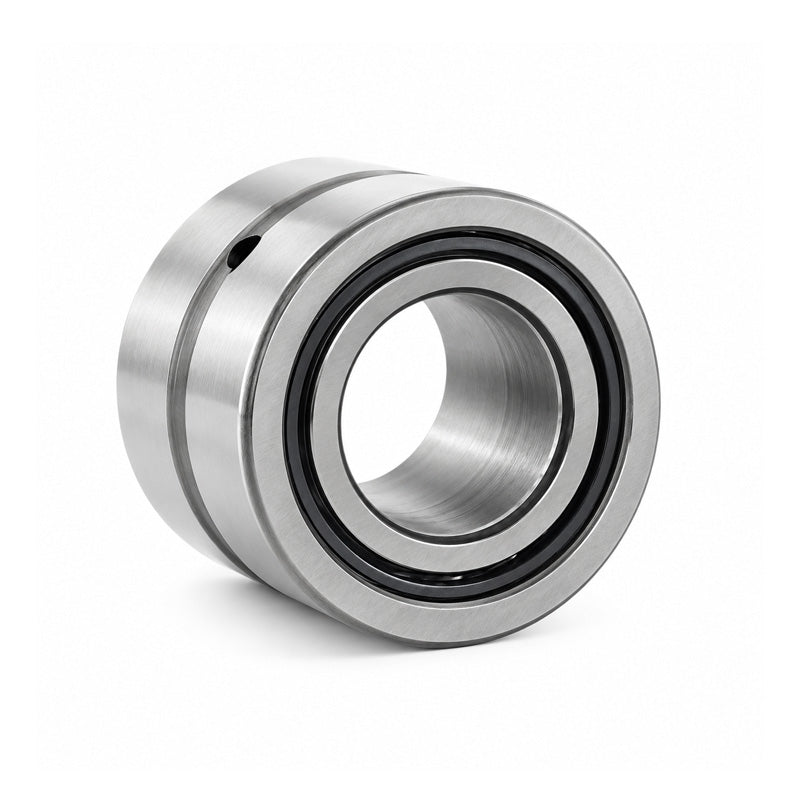

Major Brand NKIS35 Needle Roller Bearing With Shaft Sleeve 35x58x22mm
- Regular price
- CHF 66.00 ex VAT
- Sale price
- CHF 66.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 58.74
19
CHF 55.44
29
CHF 54.78
39
CHF 54.12
49
CHF 53.46
74
CHF 52.80
99
CHF 49.50
199
CHF 48.84
249
CHF 48.18
499
CHF 47.52
999
CHF 46.20
SKU:
NKIS35-MB
Major Brand NKIS35 Needle Roller Bearing With Shaft Sleeve 35x58x22mm
- Regular price
- CHF 66.00 ex VAT
- Sale price
- CHF 66.00
- Regular price
-
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
Technical

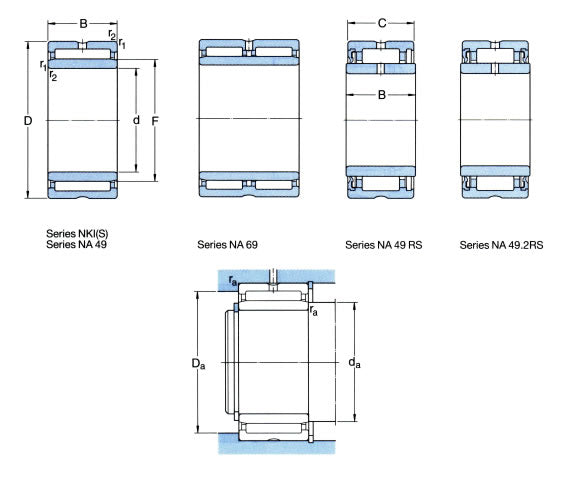

| d | = | 35mm |
| D | = | 58mm |
| B | = | 22mm |
| Dynamic load | = | 39100 N |
| Static load | = | 61000 N |
| Fatigue load limit Pu | = | 7800 N |
| Speed in grease | = | 6300 rpm |
| Speed in oil | = | 9000 rpm |
| F | = | 43mm |
| r1r2 | = | 0.6mm |
| S (axial disp) | = | 0.5mm |
| da min | = | 39mm |
| Da max | = | 54mm |
| ra max | = | 0.6mm |
