SKU: NKIS25-MB

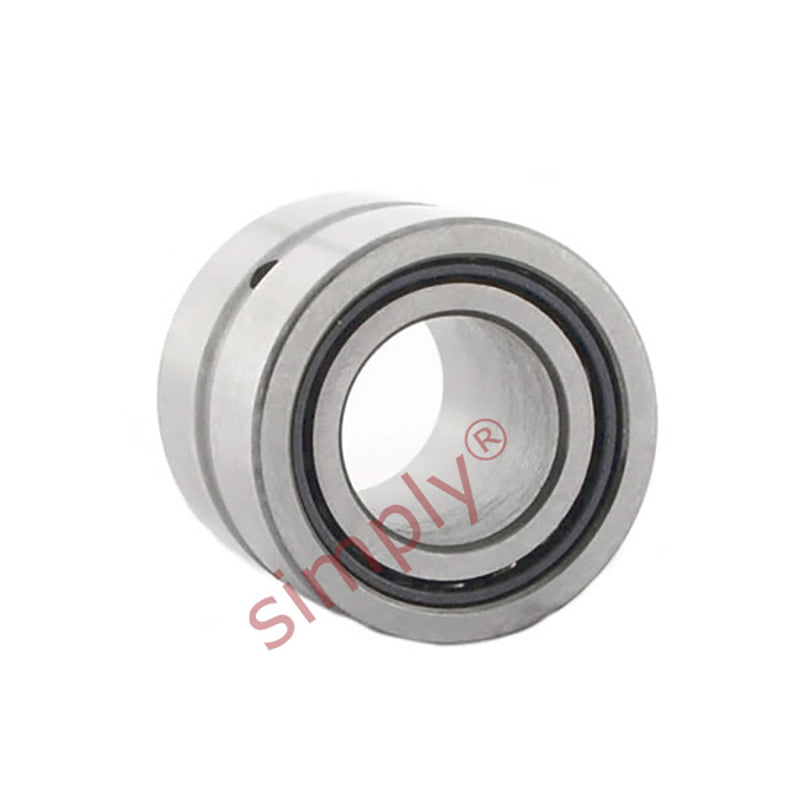

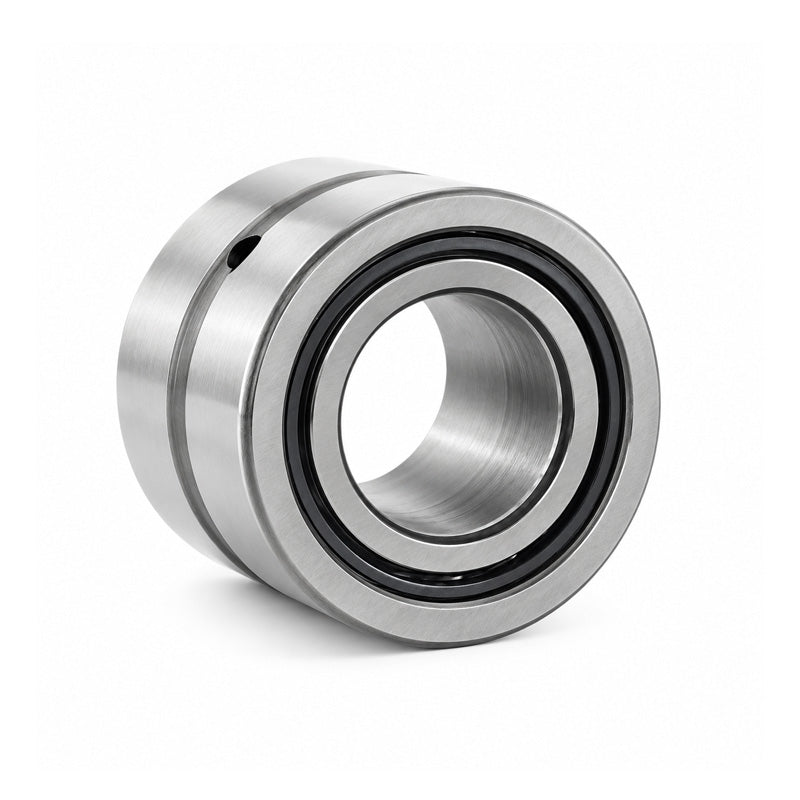

Major Brand NKIS25 Needle Roller Bearing With Shaft Sleeve 25x47x22mm
- Regular price
- CHF 49.00 ex VAT
- Sale price
- CHF 49.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 43.61
19
CHF 41.16
29
CHF 40.67
39
CHF 40.18
49
CHF 39.69
74
CHF 39.20
99
CHF 36.75
199
CHF 36.26
249
CHF 35.77
499
CHF 35.28
999
CHF 34.30
SKU:
NKIS25-MB
Major Brand NKIS25 Needle Roller Bearing With Shaft Sleeve 25x47x22mm
- Regular price
- CHF 49.00 ex VAT
- Sale price
- CHF 49.00
- Regular price
-
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |

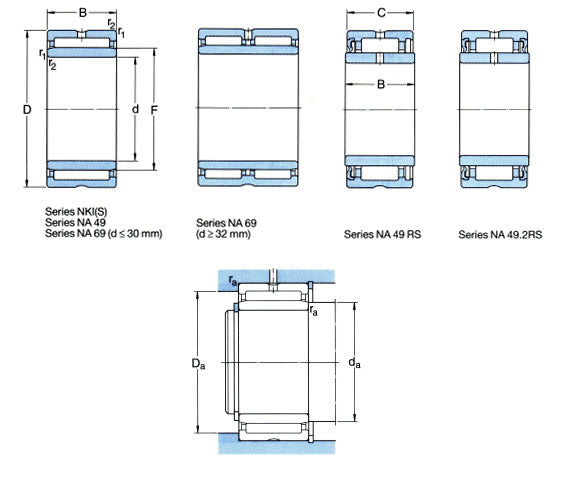

Technical
| d | = | 25mm |
| D | = | 47mm |
| B | = | 22mm |
| Dynamic load | = | 34100 N |
| Static load | = | 46500 N |
| Fatigue load limit Pu | = | 6000 N |
| Speed in grease | = | 8000 rpm |
| Speed in oil | = | 12000 rpm |
| F | = | 32mm |
| r1r2 | = | 0.6mm |
| S (axial disp) | = | 1mm |
| da min | = | 29mm |
| Da max | = | 43mm |
| ra max | = | 0.6mm |
