SKU: NKIS17-MB

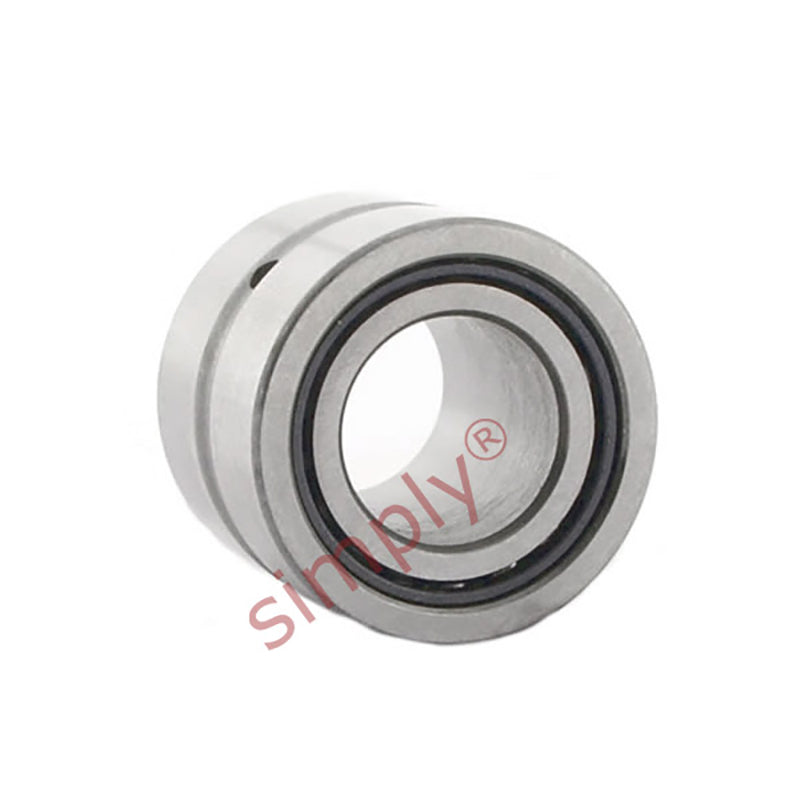

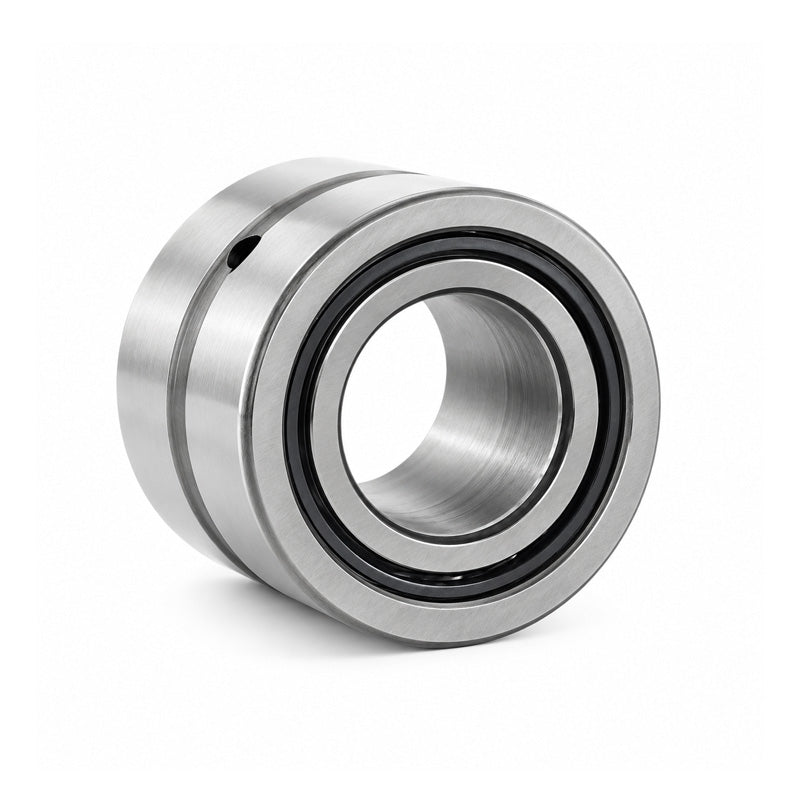

Major Brand NKIS17 Needle Roller Bearing With Shaft Sleeve 17x37x20mm
- Regular price
- CHF 46.00 ex VAT
- Sale price
- CHF 46.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 40.94
19
CHF 38.64
29
CHF 38.18
39
CHF 37.72
49
CHF 37.26
74
CHF 36.80
99
CHF 34.50
199
CHF 34.04
249
CHF 33.58
499
CHF 33.12
999
CHF 32.20
SKU:
NKIS17-MB
Major Brand NKIS17 Needle Roller Bearing With Shaft Sleeve 17x37x20mm
- Regular price
- CHF 46.00 ex VAT
- Sale price
- CHF 46.00
- Regular price
-
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
Technical
| d | = | 17mm |
| D | = | 37mm |
| B | = | 20mm |
| Dynamic load | = | 26000 N |
| Static load | = | 33500 N |
| Fatigue load limit Pu | = | 4250 N |
| Speed in grease | = | 9500 rpm |
| Speed in oil | = | 15000 rpm |
| F | = | 24mm |
| r1r2 | = | 0.6mm |
| S (axial disp) | = | 0.5mm |
| da min | = | 21mm |
| Da max | = | 33mm |
| ra max | = | 0.6mm |
