SKU: NKIA5905-EU

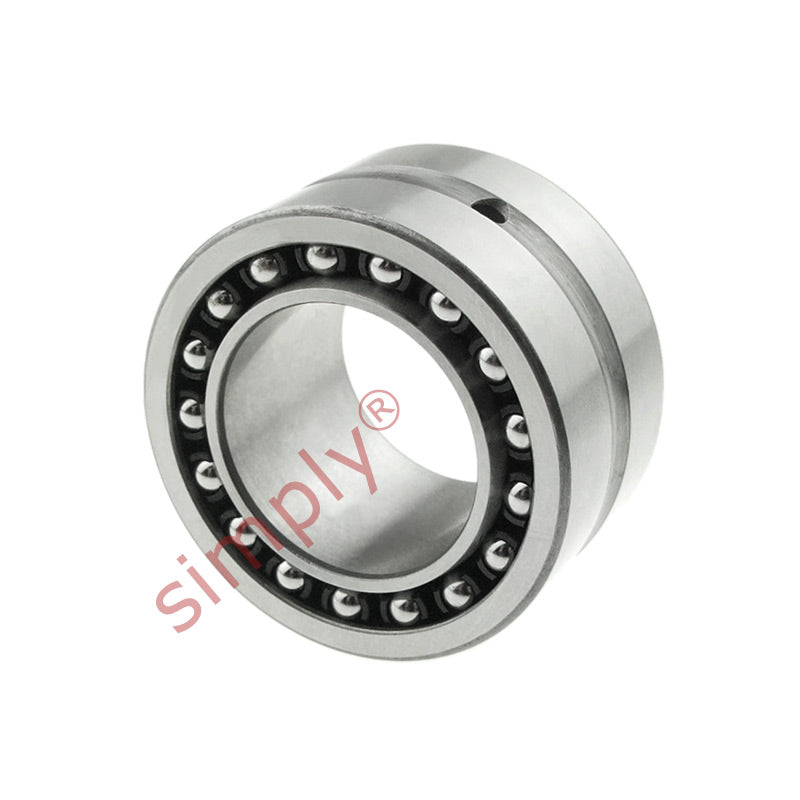

NKIA5905 Budget Needle Roller / Angular Contact Ball Bearing 25x42x23mm
- Regular price
- CHF 31.00 ex VAT
- Sale price
- CHF 31.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 27.59
19
CHF 26.04
29
CHF 25.73
39
CHF 25.42
49
CHF 25.11
74
CHF 24.80
99
CHF 23.25
199
CHF 22.94
249
CHF 22.63
499
CHF 22.32
999
CHF 21.70
SKU:
NKIA5905-EU
NKIA5905 Budget Needle Roller / Angular Contact Ball Bearing 25x42x23mm
- Regular price
- CHF 31.00 ex VAT
- Sale price
- CHF 31.00
- Regular price
-
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
Technical
| d | = | 25mm |
| D | = | 42mm |
| B | = | 23mm |
| Radial dynamic load | = | 24200 N |
| Radial static load | = | 34500 N |
| Axial dynamic load | = | 4240 N |
| Axial static load | = | 5260 N |
| Fatigue load limit radial Pu | = | 4150 N |
| Fatigue load limit axial Pu | = | 224 N |
| Speed in grease | = | 8500 rpm |
| Speed in oil | = | 13000 rpm |
| F | = | 30mm |
| r1r2 | = | 0.3mm |
| da min | = | 27mm |
| Da max | = | 40mm |
| ra max | = | 0.3mm |
| Weight | = | 130 g |
