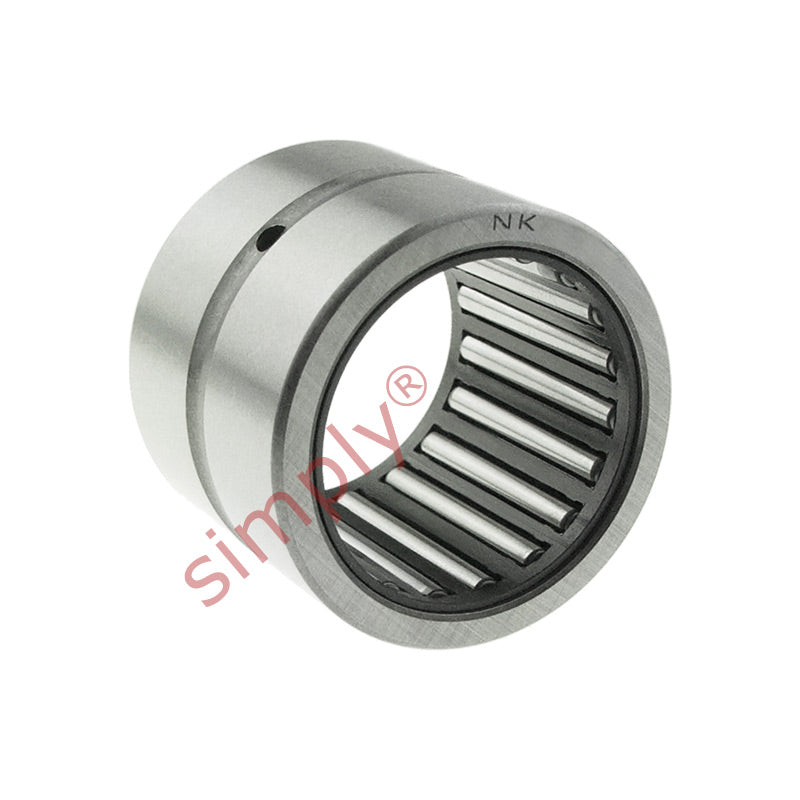

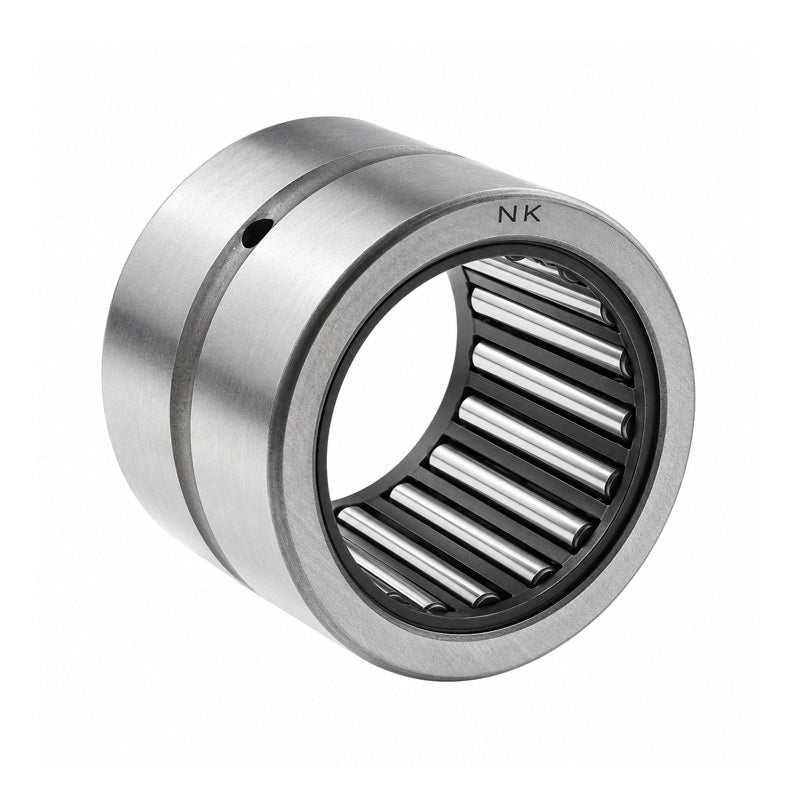

Major Brand NK42/30 Needle Roller Bearing With Flanges without Shaft Sleeve 42x52x30mm

SKU: NK42/30-MB

Major Brand NK42/30 Needle Roller Bearing With Flanges without Shaft Sleeve 42x52x30mm

CHF 32.00 ex VAT
CHF 32.00
ex VAT
In stock

Quantity Price Breaks

10 CHF 28.48
19 CHF 26.88
29 CHF 26.56
39 CHF 26.24
49 CHF 25.92
74 CHF 25.60
99 CHF 24.00
199 CHF 23.68
249 CHF 23.36
499 CHF 23.04
999 CHF 22.40
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand NK42/30 Needle Roller Bearing With Flanges without Shaft Sleeve 42x52x30mm
SKU: NK42/30-MB

Major Brand NK42/30 Needle Roller Bearing With Flanges without Shaft Sleeve 42x52x30mm

CHF 32.00 ex VAT
CHF 32.00
ex VAT

Description

Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads.
Benefits: Economical replacement, needles are retained within machined flange of the outer race.

Technical

Fw = 42mm
D = 52mm
C = 30mm
Dynamic load = 39100 N
Static load = 86500 N
Fatigue load limit Pu = 11200 N
Speed in grease = 6700 rpm
Speed in oil = 9500 rpm
r1r2 = 0.3mm
Da max = 50mm
ra max = 0.3mm
Seal = G/SD42x52x4
Weight = 130 g
