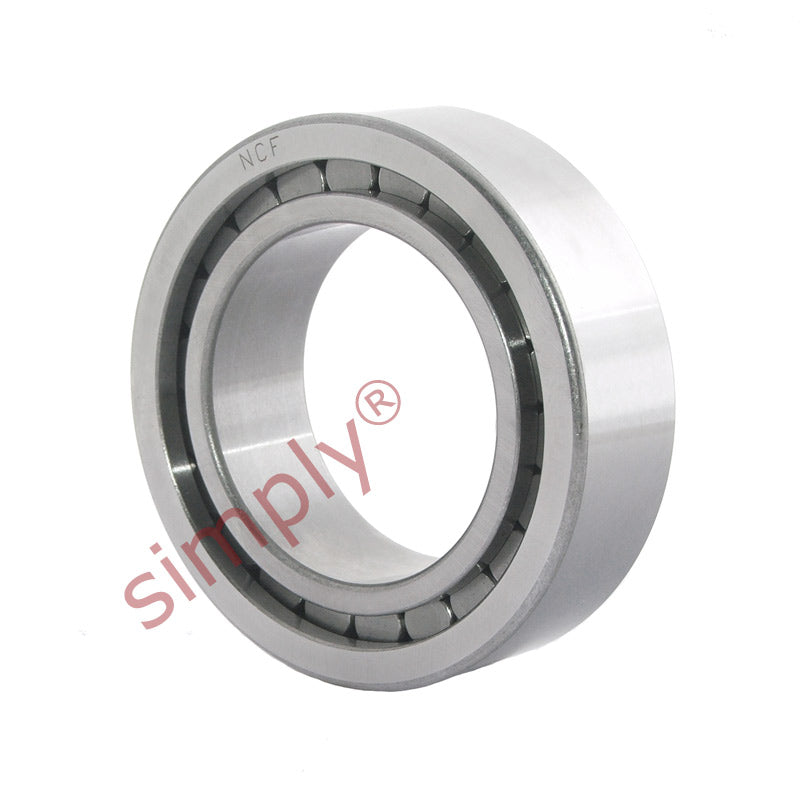

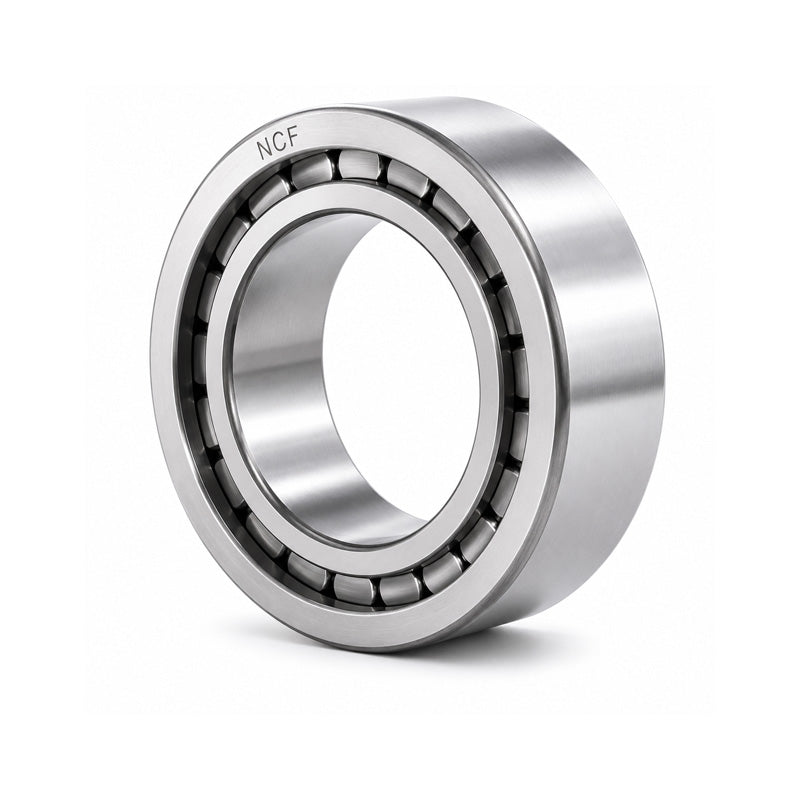

NCF3009VC3 Full Complement Cylindrical Roller Bearing 45x75x23mm

SKU: NCF.3009.VC3.MB

NCF3009VC3 Full Complement Cylindrical Roller Bearing 45x75x23mm

CHF 70.00 ex VAT
CHF 70.00
ex VAT
Equivalent to: SL18 3009C3 NCF 3009 CV.C3
Not in stock

Quantity Price Breaks

10 CHF 62.30
19 CHF 58.80
29 CHF 58.10
39 CHF 57.40
49 CHF 56.70
74 CHF 56.00
99 CHF 52.50
199 CHF 51.80
249 CHF 51.10
499 CHF 50.40
999 CHF 49.00
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
NCF3009VC3 Full Complement Cylindrical Roller Bearing 45x75x23mm
SKU: NCF.3009.VC3.MB

NCF3009VC3 Full Complement Cylindrical Roller Bearing 45x75x23mm

CHF 70.00 ex VAT
CHF 70.00
ex VAT

Description

NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing
Benefits:Tolerate axial load in one direction, none separable construction

Technical

d = 45mm
D = 75mm
B = 23mm
Weight = 0.4kg
