SKU: NAX.2530.Z

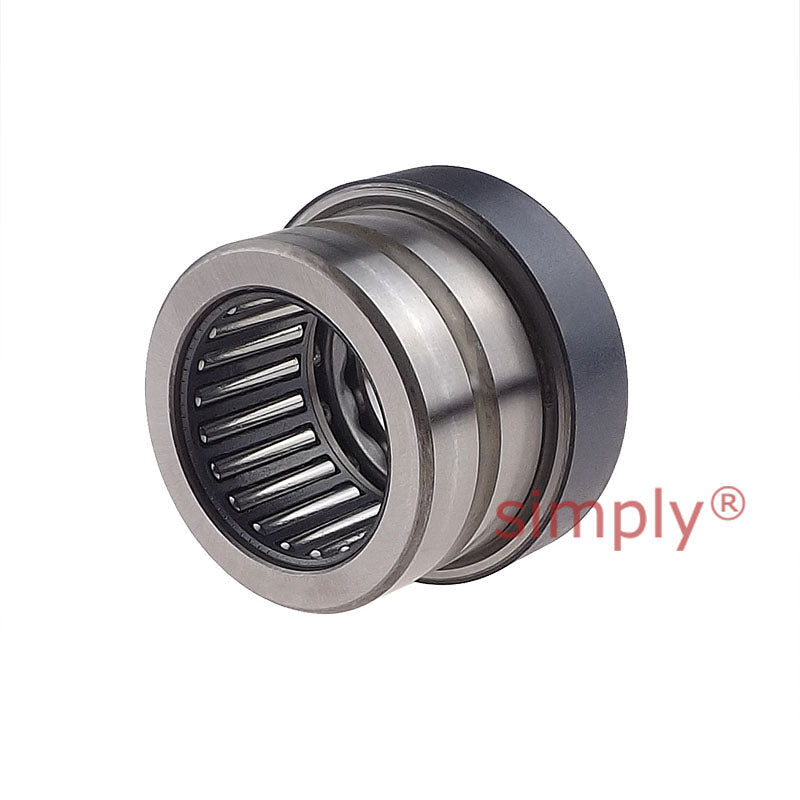

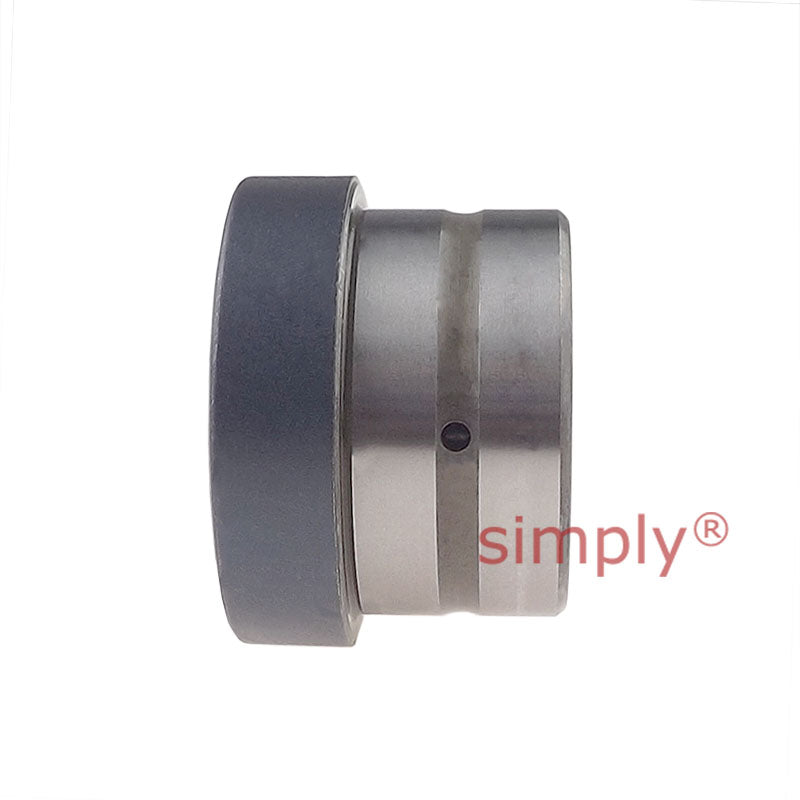

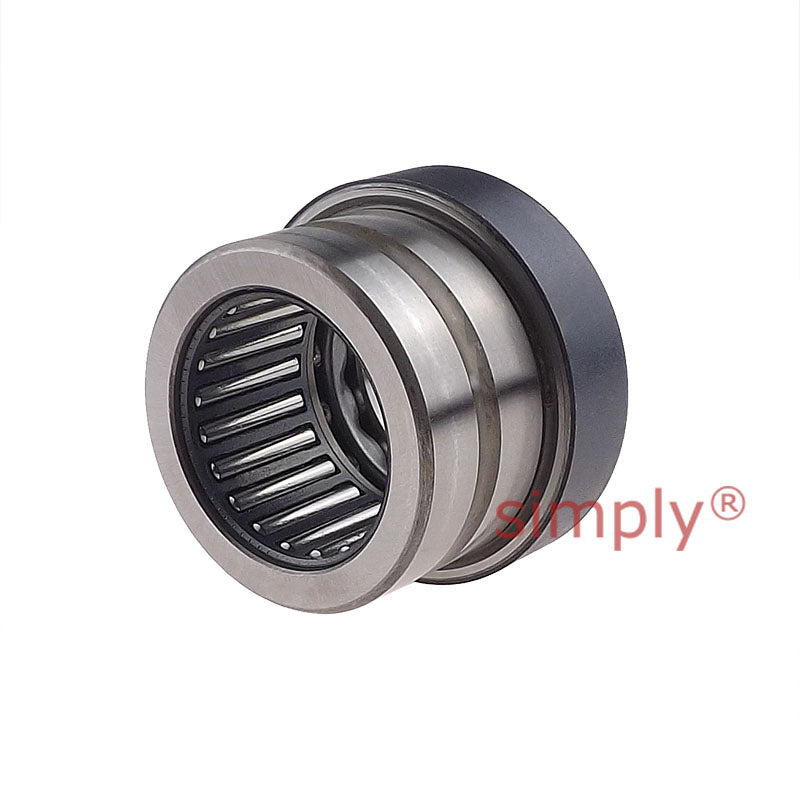

NAX2530Z Needle Roller With Thrust Ball Bearing and Dust Cover 25x43x30mm
- Regular price
- CHF 42.00 ex VAT
- Sale price
- CHF 42.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 37.38
20
CHF 35.28
30
CHF 34.86
40
CHF 34.44
50
CHF 34.02
75
CHF 33.60
100
CHF 31.50
200
CHF 31.08
250
CHF 30.66
500
CHF 30.24
1000
CHF 29.40
SKU:
NAX.2530.Z
NAX2530Z Needle Roller With Thrust Ball Bearing and Dust Cover 25x43x30mm
- Regular price
- CHF 42.00 ex VAT
- Sale price
- CHF 42.00
- Regular price
-
Description
IKO NAX Needle Roller / Ball Thrust Combination: Of a non separable design has a cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication as the cover acts to retain the lubricant. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation.
Benefits: High speed / thrust loading, grease lubrication, non separable - easily mounted
Technical
| Fw | = | 25mm |
| D | = | 37mm |
| D1 | = | 43mm |
| L | = | 30mm |
| H | = | 11mm |
| l1 | = | 9.5mm |
| rs min | = | 0.6mm |
| di | = | 25mm |
| da Min | = | 35mm |
| Dynamic load | = | 20000 N |
| Axial dynamic load | = | 19600 N |
| Static load | = | 32100 N |
| Axial static load | = | 29700 N |
| Allowable Rotational Speed | = | 7000rpm |
| Weight | = | 135g |
