SKU: NATR10PPA-MB

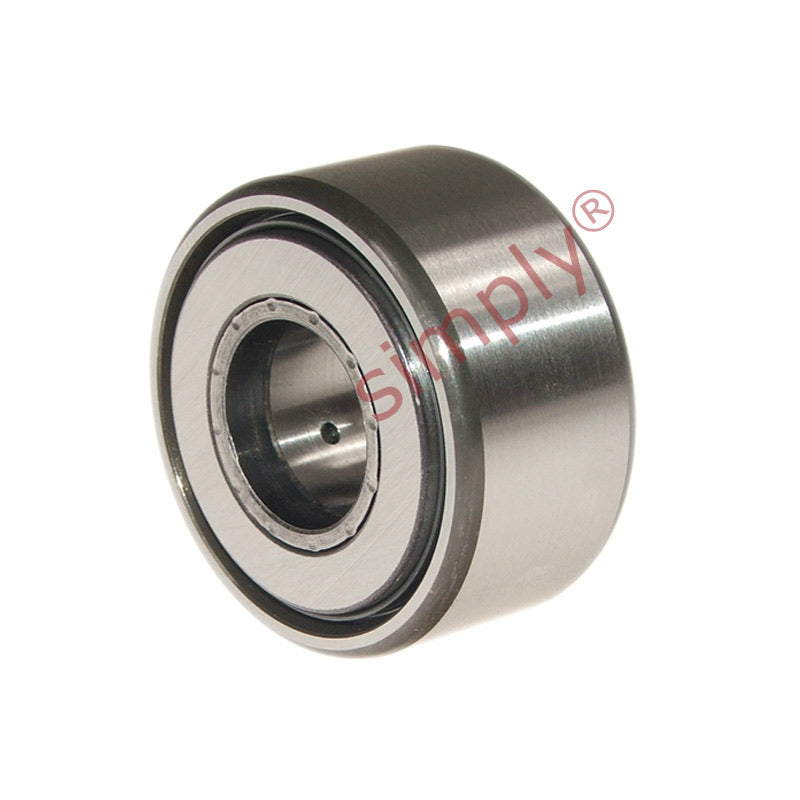

Major Brand NATR10PPA Support Roller With Axial Guidance 10x30x15mm
- Regular price
- CHF 42.00 ex VAT
- Sale price
- CHF 42.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 37.38
19
CHF 35.28
29
CHF 34.86
39
CHF 34.44
49
CHF 34.02
74
CHF 33.60
99
CHF 31.50
199
CHF 31.08
249
CHF 30.66
499
CHF 30.24
999
CHF 29.40
SKU:
NATR10PPA-MB
Major Brand NATR10PPA Support Roller With Axial Guidance 10x30x15mm
- Regular price
- CHF 42.00 ex VAT
- Sale price
- CHF 42.00
- Regular price
-
Description
NATR Axial Guidance Support Rollers: This type of support roller incorporates a guided needle roller cage arrangement and permits relatively high speed operation, the outer ring is guided by pressed on side washers which also form gap seals with the outer ring which is particularly thick by design, intended to cope with heavy loads and also shock loads. |

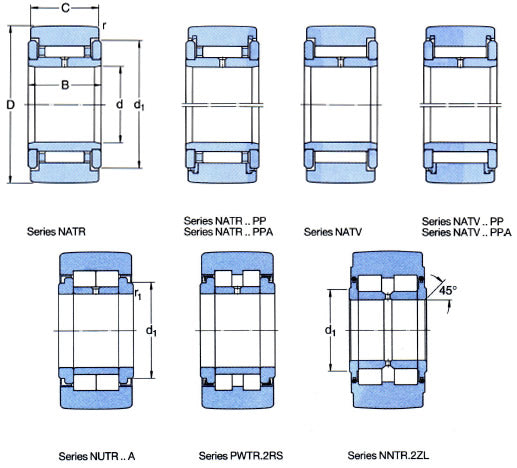

Technical
| d | = | 10mm |
| D | = | 30mm |
| B | = | 15mm |
| C | = | 14mm |
| d1 | = | 23mm |
| r min | = | 0.6mm |
| r1 min | = | -mm |
| Speed rating | = | 5500 rpm |
| Basic dynamic load | = | 6440 N |
| Basic static load | = | 8000 N |
| Fatigue load limit Pu | = | 880 N |
| Max radial dynamic force | = | 7800 N |
| Max radial static force | = | 11200 N |
| Weight | = | 61 g |
