SKU: NAO9x22x12TN-MB

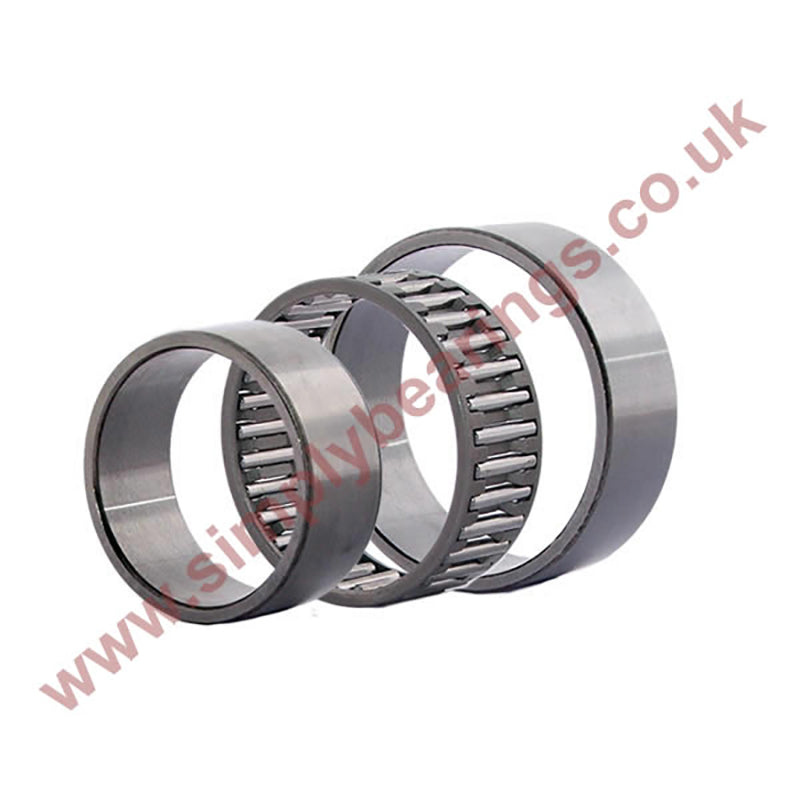

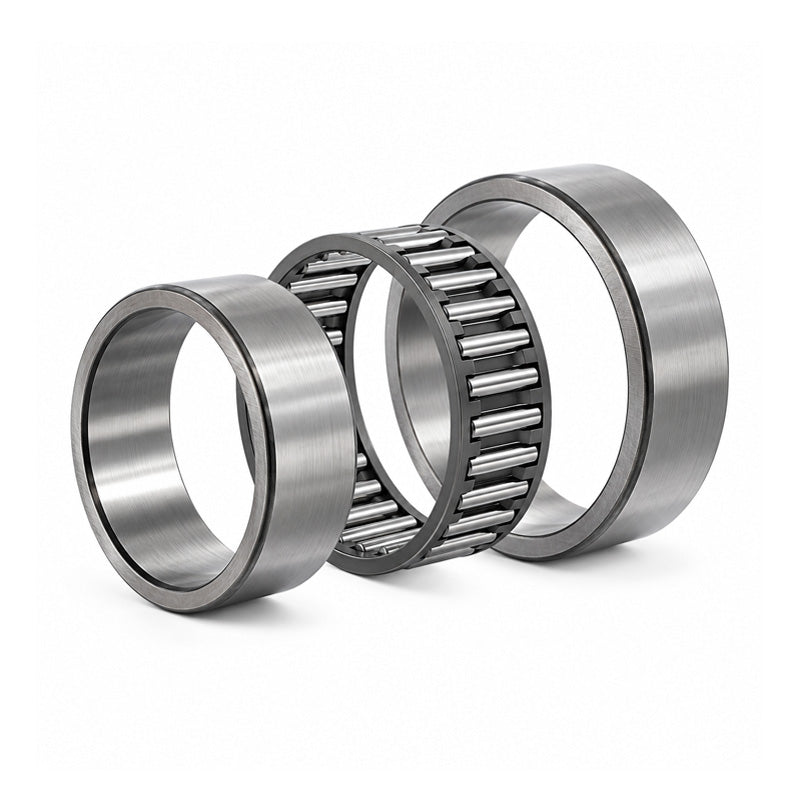

Major Brand NAO9x22x12TN Needle Roller Bearings with Machined Rings and an Inner Ring
- Regular price
- CHF 17.00 ex VAT
- Sale price
- CHF 17.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 15.13
19
CHF 14.28
29
CHF 14.11
39
CHF 13.94
49
CHF 13.77
74
CHF 13.60
99
CHF 12.75
199
CHF 12.58
249
CHF 12.41
499
CHF 12.24
999
CHF 11.90
SKU:
NAO9x22x12TN-MB
Major Brand NAO9x22x12TN Needle Roller Bearings with Machined Rings and an Inner Ring
- Regular price
- CHF 17.00 ex VAT
- Sale price
- CHF 17.00
- Regular price
-
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
Technical
| d | = | 9mm |
| D | = | 22mm |
| B | = | 12mm |
| Dynamic load | = | 9520 N |
| Static load | = | 10000 N |
| Fatigue load limit Pu | = | 1180 N |
| Speed in grease | = | 17000 rpm |
| Speed in oil | = | 26000 rpm |
| E | = | 18mm |
| F | = | 12mm |
| r1r2 min | = | 0.3mm |
| S (axial disp) | = | 0.5mm |
| da | = | 17.6mm |
| db | = | 11.7mm |
| Da | = | 18.3mm |
| Db | = | 12.3mm |
| ra max | = | 0.3mm |
| Weight | = | 24 g |
