SKU: NAO35x50x17-MB

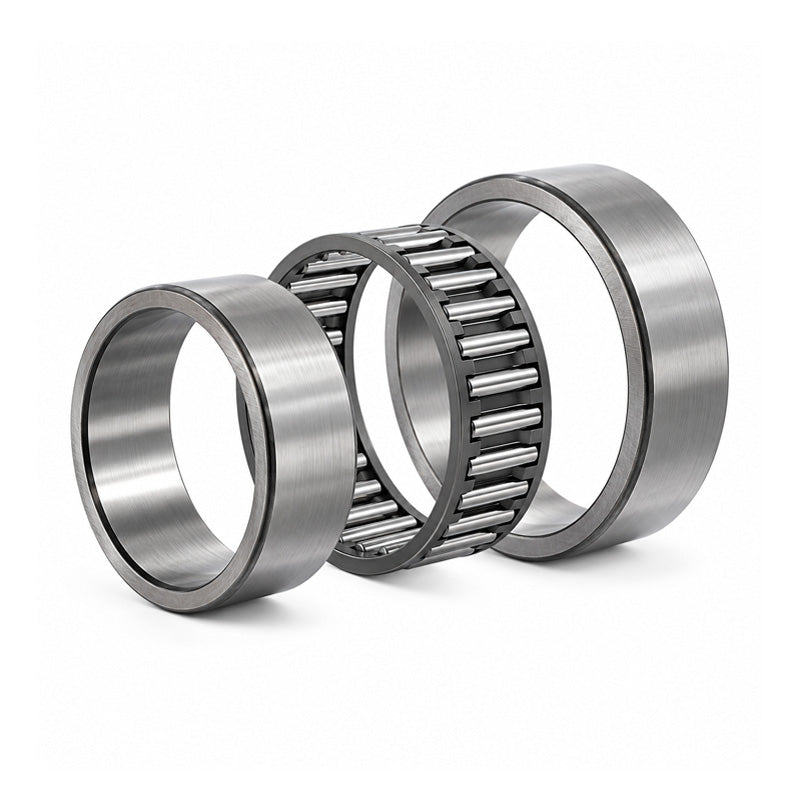

Major Brand NAO35x50x17 Needle Roller Bearings with Machined Rings and an Inner Ring
- Regular price
- CHF 31.00 ex VAT
- Sale price
- CHF 31.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 27.59
19
CHF 26.04
29
CHF 25.73
39
CHF 25.42
49
CHF 25.11
74
CHF 24.80
99
CHF 23.25
199
CHF 22.94
249
CHF 22.63
499
CHF 22.32
999
CHF 21.70
SKU:
NAO35x50x17-MB
Major Brand NAO35x50x17 Needle Roller Bearings with Machined Rings and an Inner Ring
- Regular price
- CHF 31.00 ex VAT
- Sale price
- CHF 31.00
- Regular price
-
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
Technical
| d | = | 35mm |
| D | = | 50mm |
| B | = | 17mm |
| Dynamic load | = | 20500 N |
| Static load | = | 41500 N |
| Fatigue load limit Pu | = | 5000 N |
| Speed in grease | = | 7000 rpm |
| Speed in oil | = | 10000 rpm |
| E | = | 45mm |
| F | = | 40mm |
| r1r2 min | = | 0.3mm |
| S (axial disp) | = | 0.8mm |
| da | = | 44.4mm |
| db | = | 39.5mm |
| Da | = | 45.5mm |
| Db | = | 40.6mm |
| ra max | = | 0.3mm |
| Weight | = | 110 g |
