SKU: NAO15x28x13-EU

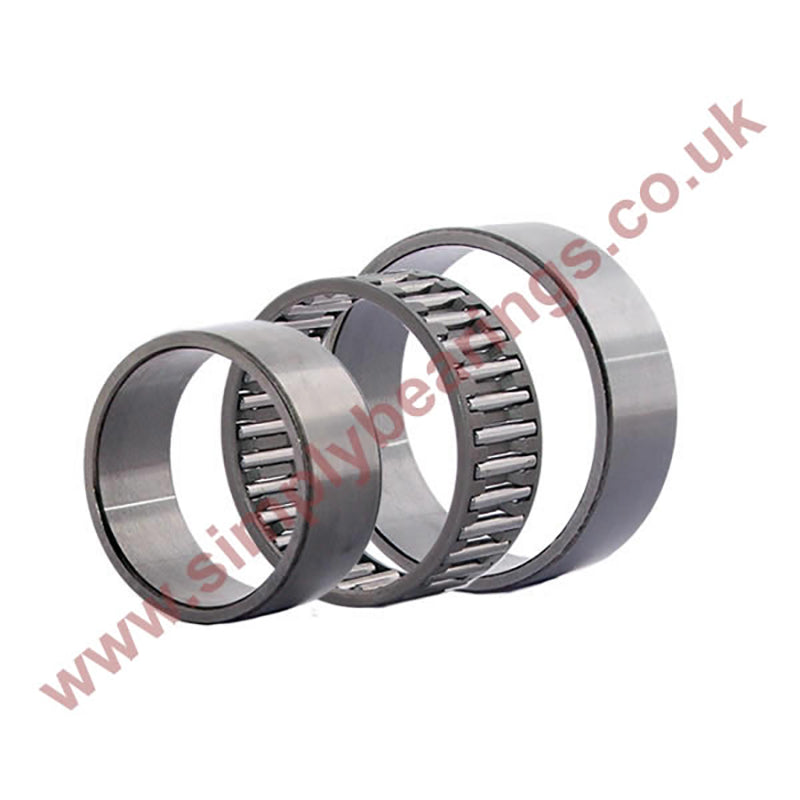

NAO15x28x13 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
- Regular price
- CHF 13.00 ex VAT
- Sale price
- CHF 13.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 11.57
19
CHF 10.92
29
CHF 10.79
39
CHF 10.66
49
CHF 10.53
74
CHF 10.40
99
CHF 9.75
199
CHF 9.62
249
CHF 9.49
499
CHF 9.36
999
CHF 9.10
SKU:
NAO15x28x13-EU
NAO15x28x13 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
- Regular price
- CHF 13.00 ex VAT
- Sale price
- CHF 13.00
- Regular price
-
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
Technical
| d | = | 15mm |
| D | = | 28mm |
| B | = | 13mm |
| Dynamic load C | = | 9520 N |
| Static load Co | = | 14600 N |
| Fatigue load limit Pu | = | 1660 N |
| Speed in grease | = | 14000 rpm |
| Speed in oil | = | 20000 rpm |
| E | = | 24mm |
| F | = | 20mm |
| r1r2 min | = | 0.3mm |
| S (axial disp) | = | 0.5mm |
| da | = | 23.6mm |
| db | = | 19.5mm |
| Da | = | 24.3mm |
| Db | = | 20.4mm |
| ra max | = | 0.3mm |
| Weight | = | 29 g |
