SKU: NA4901.2RS-MB

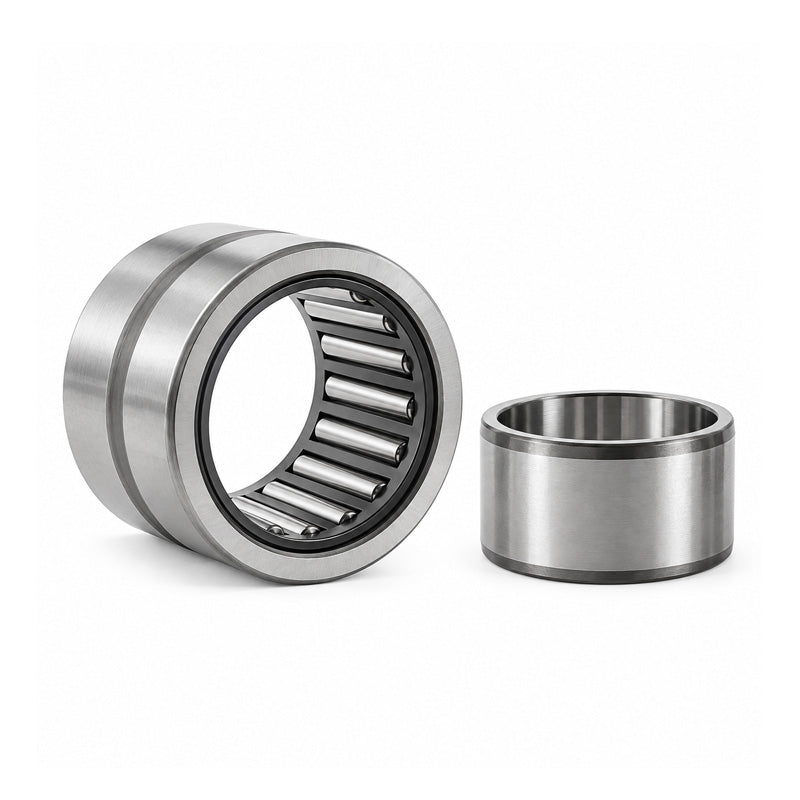

Major Brand NA49012RS Needle Roller Bearing With Shaft Sleeve and Two Rubber Seals 12x24x14mm
- Regular price
- CHF 32.00 ex VAT
- Sale price
- CHF 32.00
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
CHF 28.48
19
CHF 26.88
29
CHF 26.56
39
CHF 26.24
49
CHF 25.92
74
CHF 25.60
99
CHF 24.00
199
CHF 23.68
249
CHF 23.36
499
CHF 23.04
999
CHF 22.40
Description
|
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
Technical
| d | = | 12mm |
| D | = | 24mm |
| B | = | 14mm |
| C | = | 13mm |
| Dynamic load | = | 8090 N |
| Static load | = | 9650 N |
| Fatigue load limit Pu | = | 1140 N |
| Speed in grease | = | 12000 rpm |
| F | = | 16mm |
| r1r2 | = | 0.3mm |
| S (axial disp) | = | 0.5mm |
| da min | = | 14mm |
| Da max | = | 22mm |
| ra max | = | 0.3mm |
