SKU: NA49/28-MB

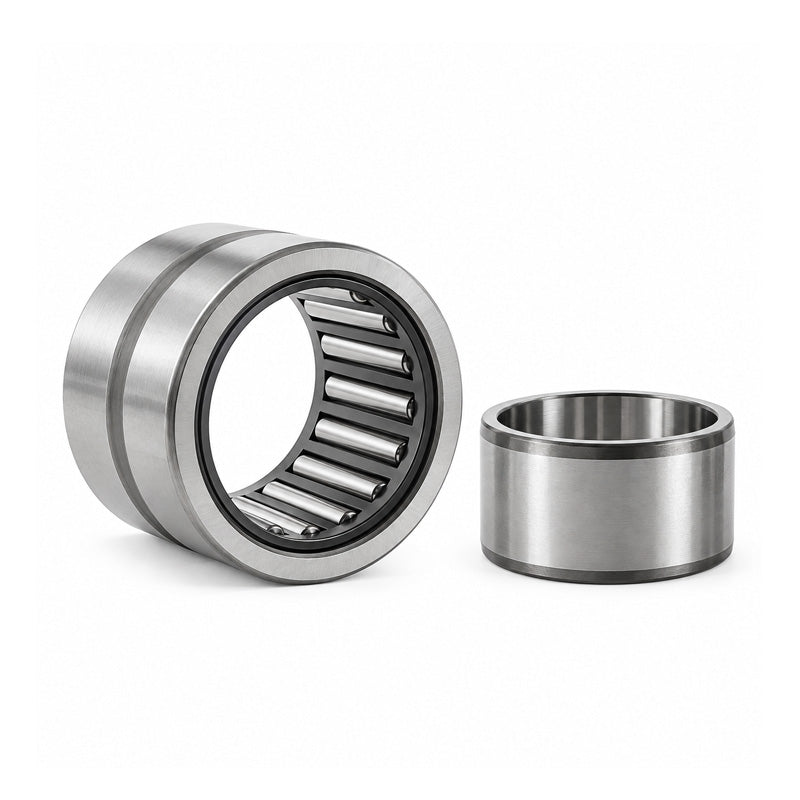

Major Brand NA49/28 Needle Roller Bearing With Shaft Sleeve 28x45x17mm
- Regular price
- CHF 42.00 ex VAT
- Sale price
- CHF 42.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 37.38
19
CHF 35.28
29
CHF 34.86
39
CHF 34.44
49
CHF 34.02
74
CHF 33.60
99
CHF 31.50
199
CHF 31.08
249
CHF 30.66
499
CHF 30.24
999
CHF 29.40
SKU:
NA49/28-MB
Major Brand NA49/28 Needle Roller Bearing With Shaft Sleeve 28x45x17mm
- Regular price
- CHF 42.00 ex VAT
- Sale price
- CHF 42.00
- Regular price
-
Description
|
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
Technical
| d | = | 28mm |
| D | = | 45mm |
| B | = | 17mm |
| Dynamic load | = | 25100 N |
| Static load | = | 36500 N |
| Fatigue load limit Pu | = | 4550 N |
| Speed in grease | = | 8000 rpm |
| Speed in oil | = | 12000 rpm |
| F | = | 32mm |
| r1r2 | = | 0.3mm |
| S (axial disp) | = | 0.8mm |
| da min | = | 30mm |
| Da max | = | 43mm |
| ra max | = | 0.3mm |
