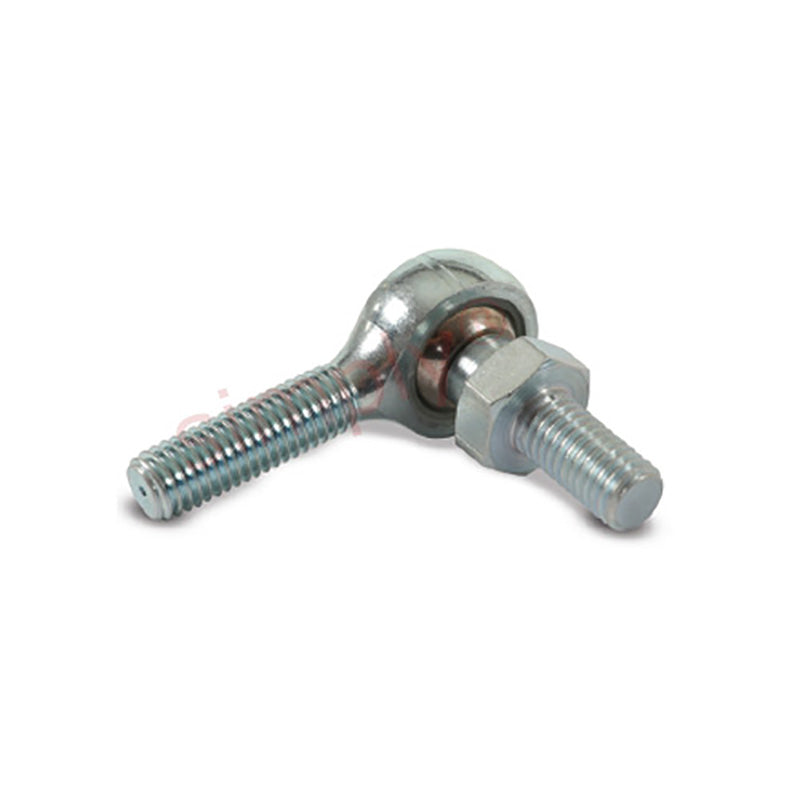

Branded MPL-M14S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M14x2 Thread

SKU: MPL-M14S-MB

Branded MPL-M14S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M14x2 Thread

CHF 26.00 ex VAT
CHF 26.00
ex VAT
In stock

Quantity Price Breaks

10 CHF 23.14
19 CHF 21.84
29 CHF 21.58
39 CHF 21.32
49 CHF 21.06
74 CHF 20.80
99 CHF 19.50
199 CHF 19.24
249 CHF 18.98
499 CHF 18.72
999 CHF 18.20
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MPL-M14S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M14x2 Thread
SKU: MPL-M14S-MB

Branded MPL-M14S Left Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M14x2 Thread

CHF 26.00 ex VAT
CHF 26.00
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = M14
Thread = M14x2
A = 28mm
B = 28mm
C = 25mm
K = 22mm
Static load = 7200 N
