Branded MP-05-4S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/16 UNF Thread - Allow 7-10 Days

SKU: MP-05-4S-MB

Branded MP-05-4S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/16 UNF Thread - Allow 7-10 Days

CHF 29.00 ex VAT
CHF 29.00
ex VAT
Not in stock

Quantity Price Breaks

10 CHF 25.81
19 CHF 24.36
29 CHF 24.07
39 CHF 23.78
49 CHF 23.49
74 CHF 23.20
99 CHF 21.75
199 CHF 21.46
249 CHF 21.17
499 CHF 20.88
999 CHF 20.30
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MP-05-4S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/16 UNF Thread - Allow 7-10 Days
SKU: MP-05-4S-MB

Branded MP-05-4S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/16 UNF Thread - Allow 7-10 Days

CHF 29.00 ex VAT
CHF 29.00
ex VAT

Description

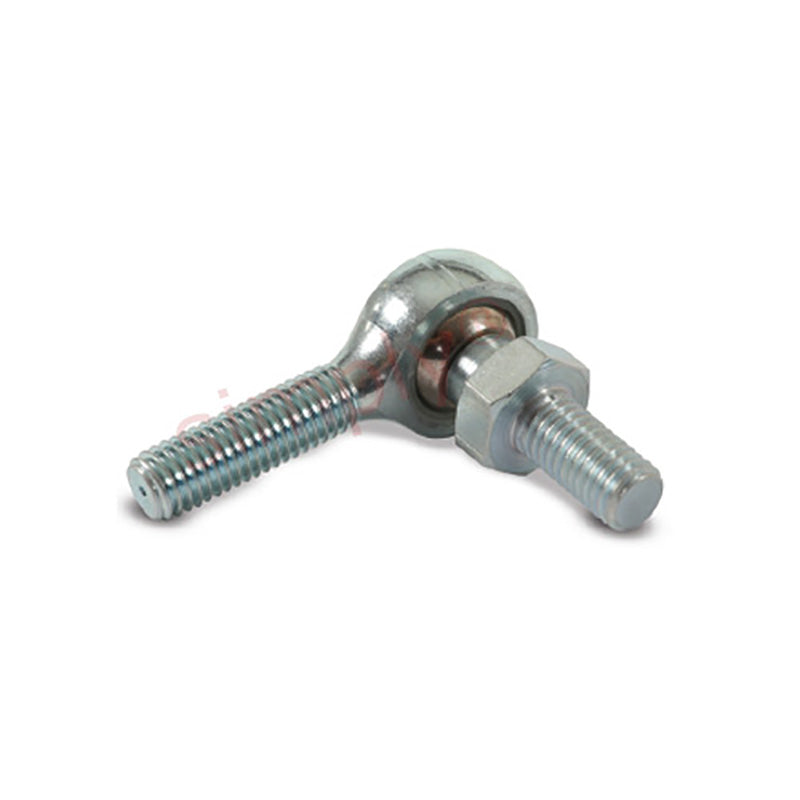

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = 1/4 UNF
Thread = 5/16 UNF
A = 0.687 inch
B = 0.547 inch
C = 0.594 inch
K = 0.437 inch
Static load = 1930 N
