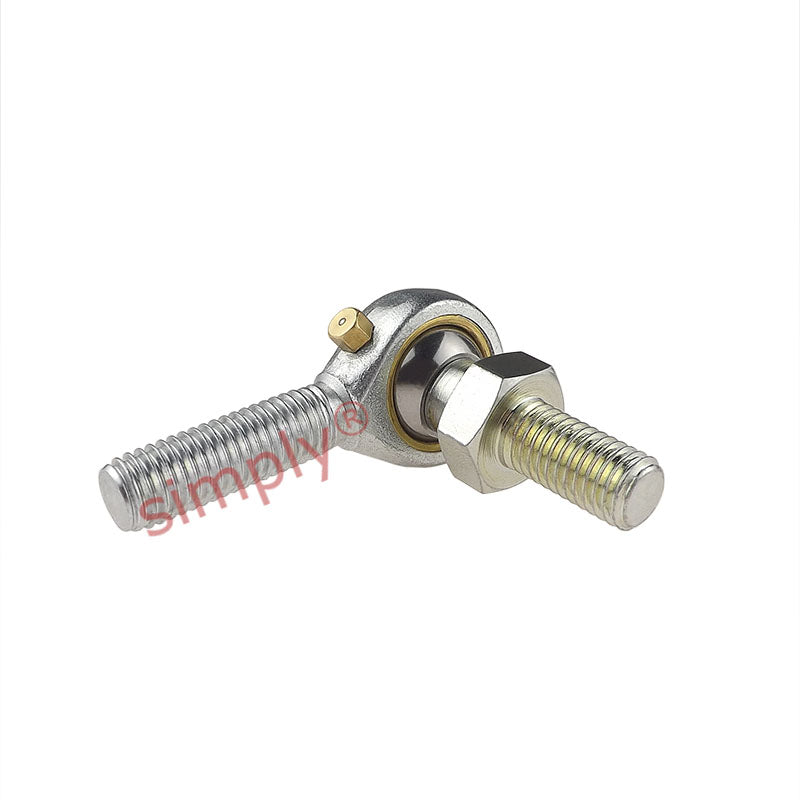

Branded MBL-M12S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Male Rod End M12x1.75 Thread - Allow 7-10 Days

SKU: MBL-M12S-MB

Branded MBL-M12S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Male Rod End M12x1.75 Thread - Allow 7-10 Days

CHF 21.00 ex VAT
CHF 21.00
ex VAT
Not in stock

Quantity Price Breaks

10 CHF 18.69
19 CHF 17.64
29 CHF 17.43
39 CHF 17.22
49 CHF 17.01
74 CHF 16.80
99 CHF 15.75
199 CHF 15.54
249 CHF 15.33
499 CHF 15.12
999 CHF 14.70
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MBL-M12S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Male Rod End M12x1.75 Thread - Allow 7-10 Days
SKU: MBL-M12S-MB

Branded MBL-M12S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Male Rod End M12x1.75 Thread - Allow 7-10 Days

CHF 21.00 ex VAT
CHF 21.00
ex VAT

Description

MBS Studded Bronze Lined Series Maintenance Required, Rod Ends with Male Thread: The studded MB series are a standard range of maintenance required general purpose male rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Suitable for high precision motion transfer applications and extended wear life.
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: Bronze SAE660 and oil impregnated sintered
bronze. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -34c to +149c
Benefits: Low friction, available in metric and imperial thread and bore sizes, extended wear life

Technical

Stud size = M12
Thread = M12x1.75
A = 24mm
B = 24mm
C = 21mm
K = 19mm
Static load = 5720 N
