SKU: LS140180-EU

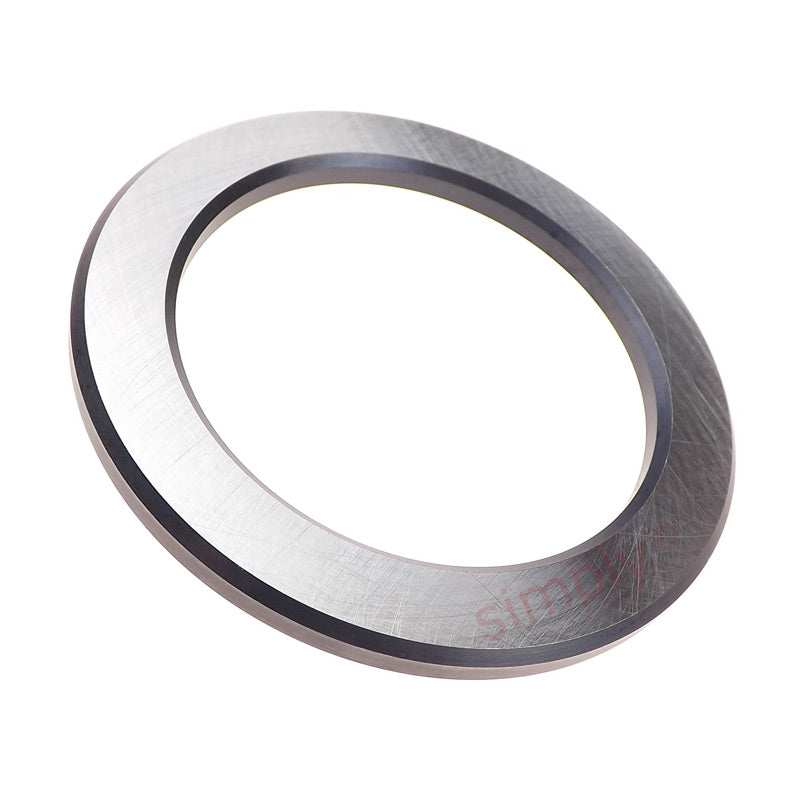

LS140180 Budget Raceway Washer Series LS 140x180x9.5mm
- Regular price
- CHF 108.00 ex VAT
- Sale price
- CHF 108.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 96.12
19
CHF 90.72
29
CHF 89.64
39
CHF 88.56
49
CHF 87.48
74
CHF 86.40
99
CHF 81.00
199
CHF 79.92
249
CHF 78.84
499
CHF 77.76
999
CHF 75.60
SKU:
LS140180-EU
LS140180 Budget Raceway Washer Series LS 140x180x9.5mm
- Regular price
- CHF 108.00 ex VAT
- Sale price
- CHF 108.00
- Regular price
-
Description
|
Budget LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical
| d | = | 140mm |
| d1 | = | 178mm |
| D | = | 180mm |
| D1 | = | 142mm |
| B | = | 9.5mm |
| r1r2 | = | 1mm |
| Weight | = | 750 g |
