SKU: LNR-1680HH-EU

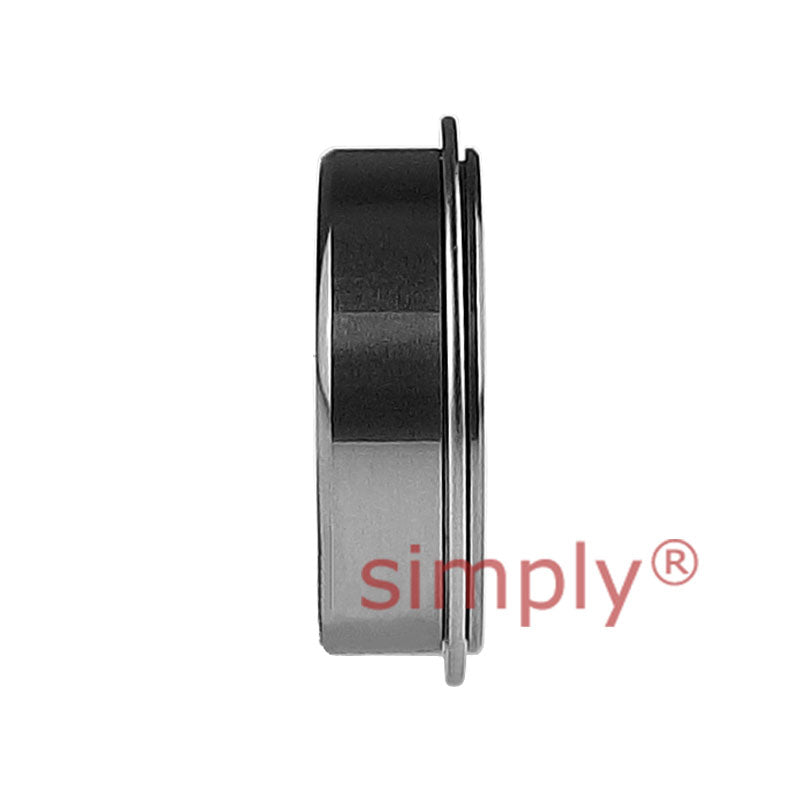

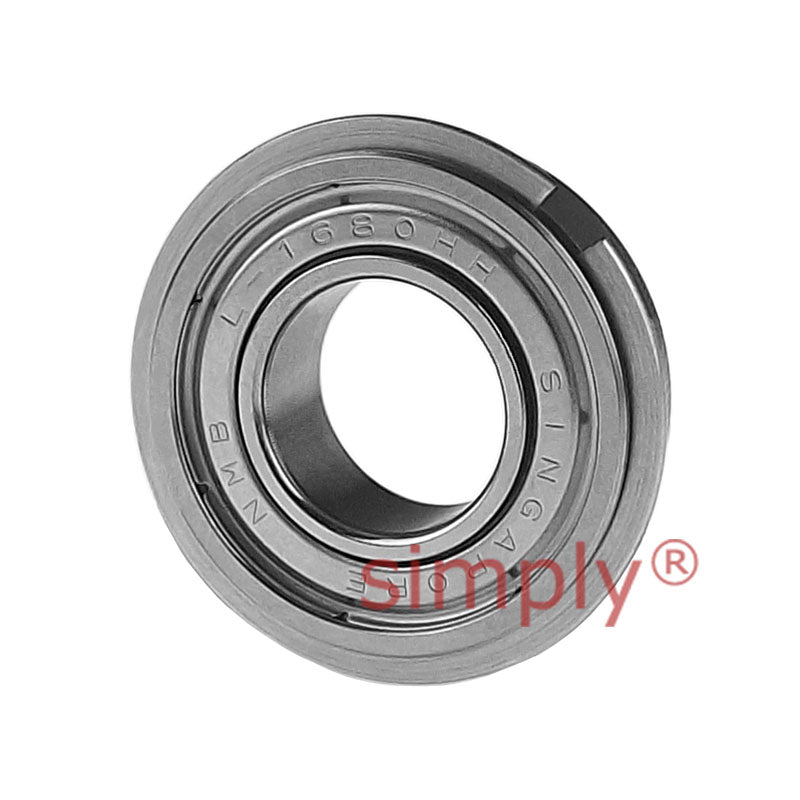

NMB Brand LNR1680HH Metal Shielded Deep Groove Ball Bearing 8x16x5mm with Snap Ring
- Regular price
- CHF 7.00 ex VAT
- Sale price
- CHF 7.00
- Regular price
-
Quantity Price Breaks
NMB Brand LNR1680HH Metal Shielded Deep Groove Ball Bearing 8x16x5mm with Snap Ring
- Regular price
- CHF 7.00 ex VAT
- Sale price
- CHF 7.00
- Regular price
-
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
Technical
| d | = | 8mm |
| D | = | 16mm |
| B | = | 5mm |
| r min | = | 0.2mm |
| Dynamic load C | = | 1.176 kN |
| Static load Co | = | 0.5684 kN |
| Max speed | = | 41000 rpm |
| Mass | = | 0.01 kg |
