SKU: LMB.10.UU.AJ.EU

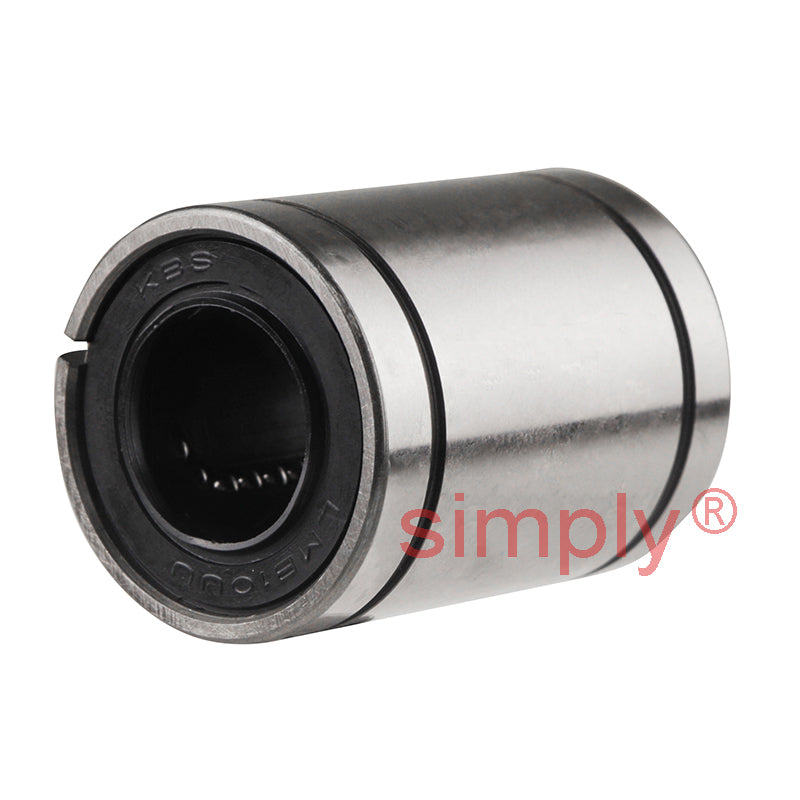

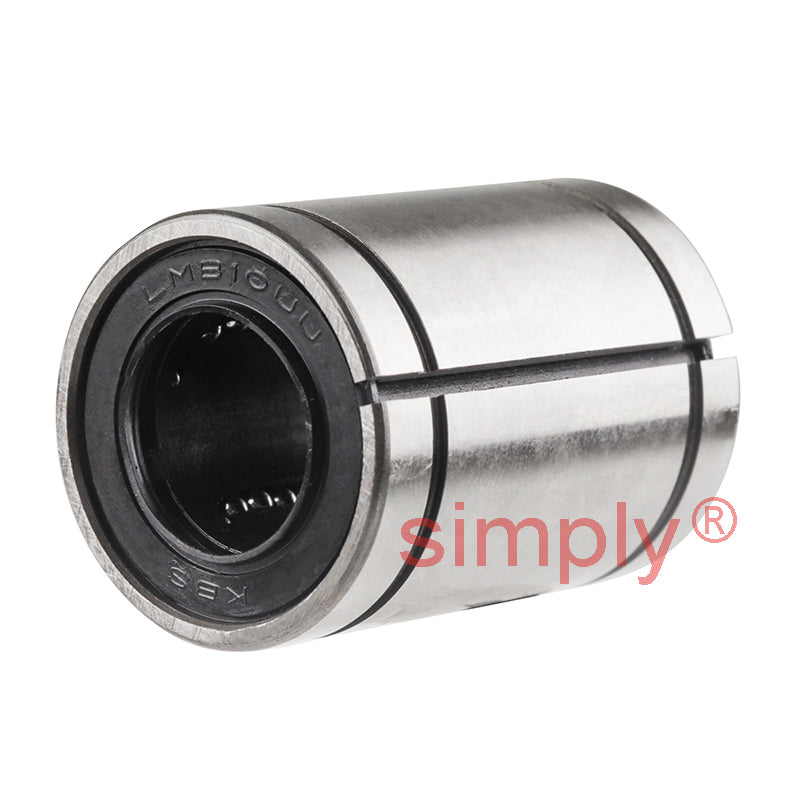

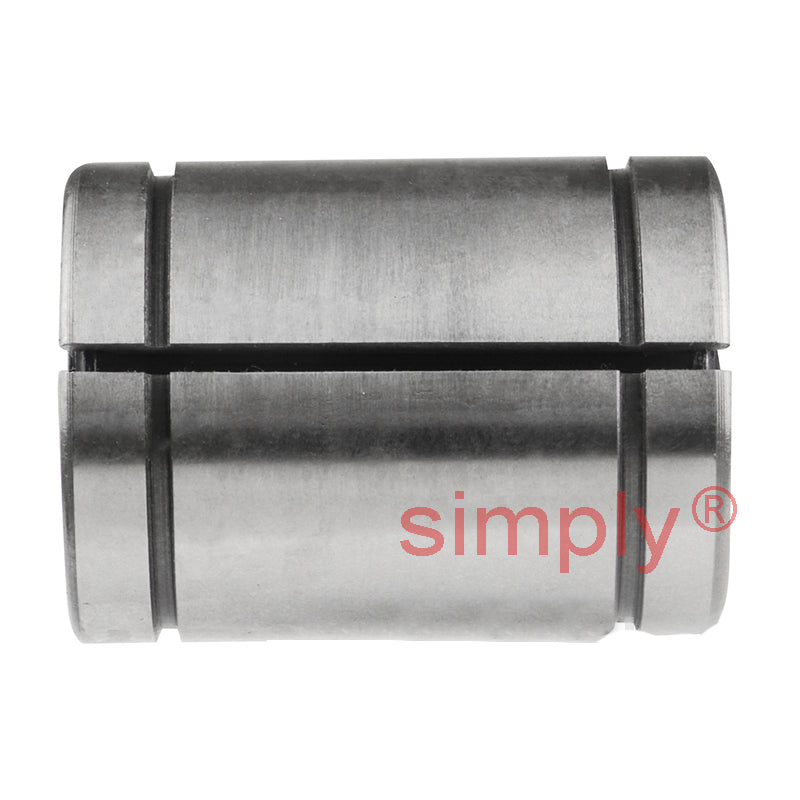

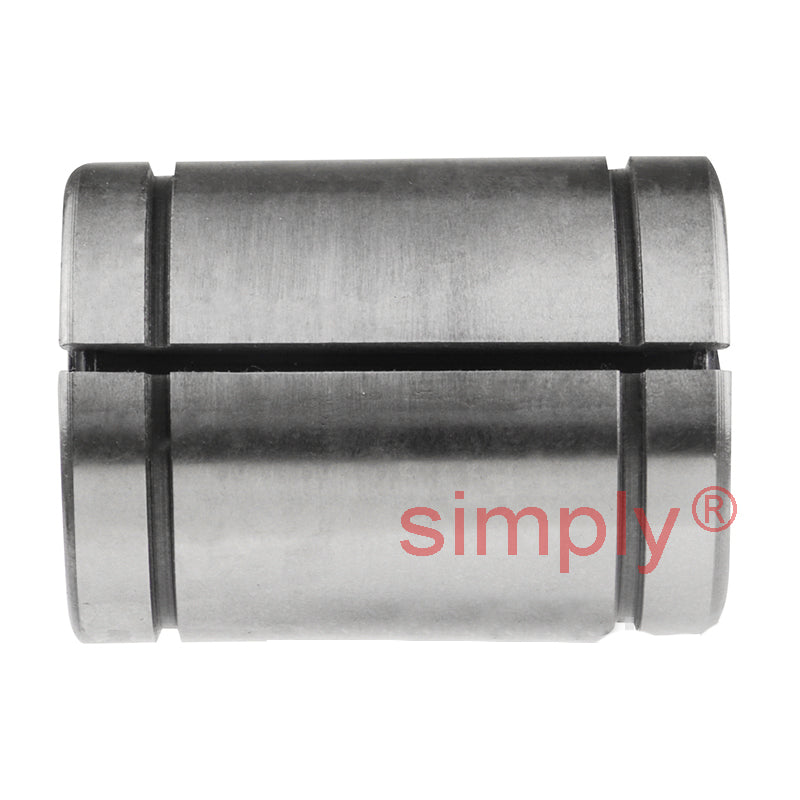

LMB10UUAJ Imperial Adjustable Linear Ball Bushing with Rubber Seals 0.625x1.125x1.5 inch
- Regular price
- CHF 15.00 ex VAT
- Sale price
- CHF 15.00
- Regular price
-
Quantity Price Breaks
LMB10UUAJ Imperial Adjustable Linear Ball Bushing with Rubber Seals 0.625x1.125x1.5 inch
- Regular price
- CHF 15.00 ex VAT
- Sale price
- CHF 15.00
- Regular price
-
Description
LMB-AJ Imperial Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
Technical
| Inside Diameter dr | = | 0.625 inch Tol - 0 to + 6& |
| micro | = | m |
| Outside Diameter D | = | 1.125 inch Tol - 0 to + 13& |
| micro | = | m |
| Length L | = | 1.5 inch Tol - 0 to + 200& |
| micro | = | m |
| W | = | 0.0559 inch |
| D1 | = | 1.059 inch |
| B | = | 1.1039 inch |
| h | = | 0.006 inch |
| Eccentricity | = | 8 to 12& |
| micro | = | m |
| Dynamic load C | = | 79 kgf |
| Static load C< | = | sub> |
| o< | = | /sub> |
| = | 120 kgf | |
| Weight | = | 69 g |
| Number of ball rows | = | 3 |
| Tolerances dr & | = | D |
| Apply to closed type only | = | N/A |
