SKU: LM.25.UU.AJ.EU

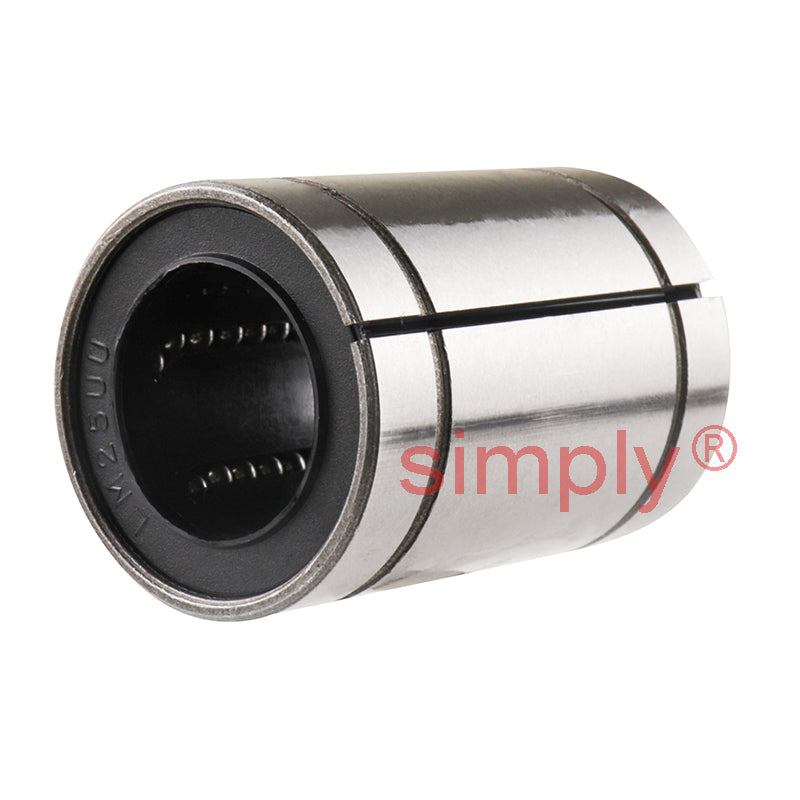

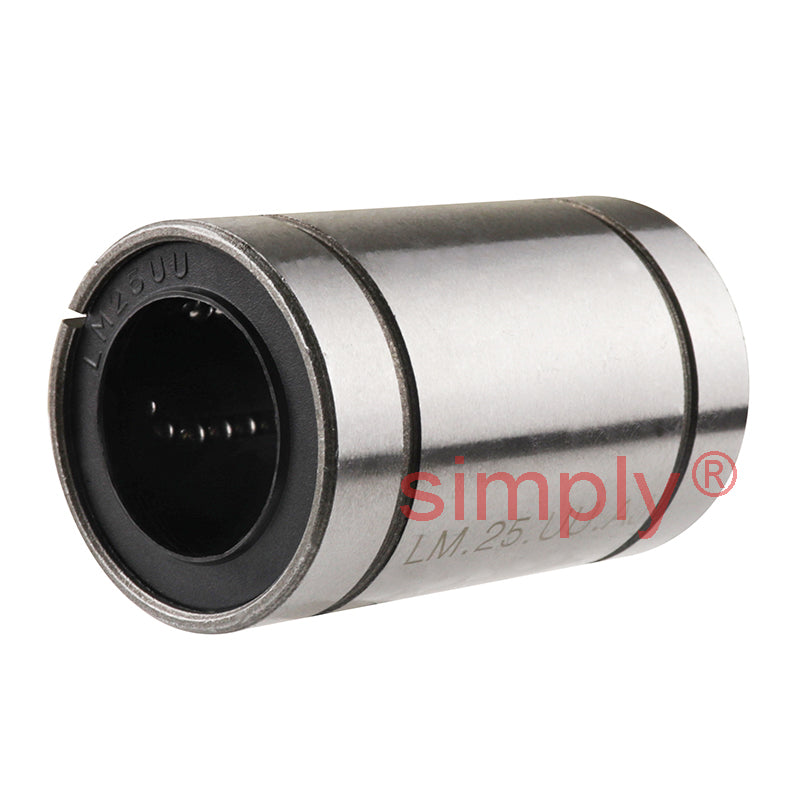

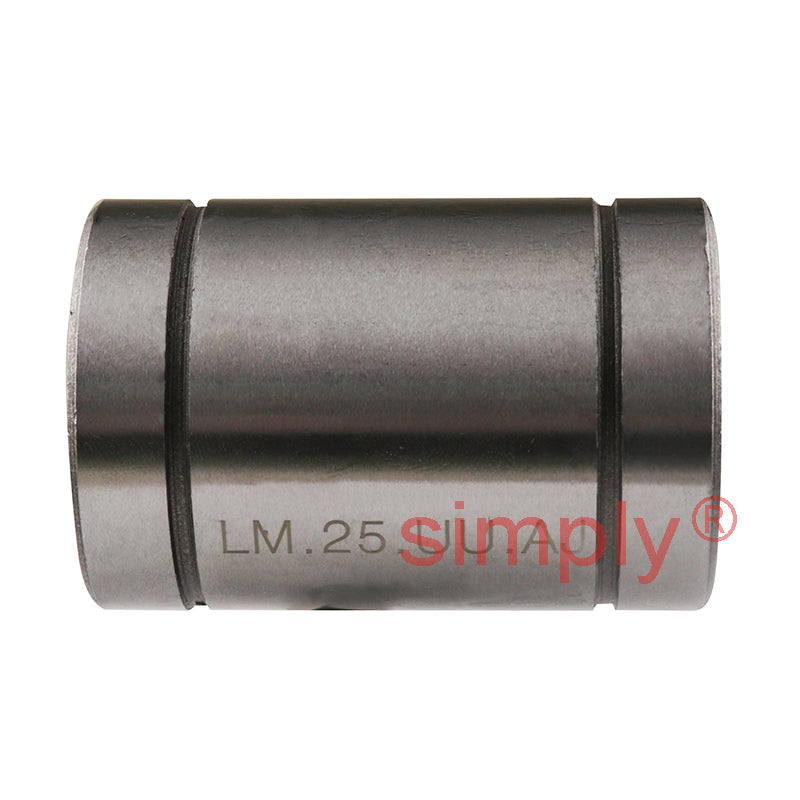

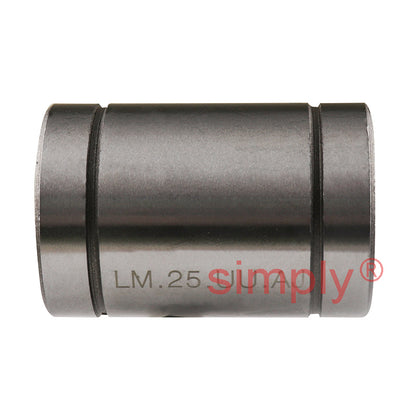

LM25UUAJ Adjustable Linear Ball Bushing with Rubber Seals 25x40x59mm
- Regular price
- CHF 17.00 ex VAT
- Sale price
- CHF 17.00
- Regular price
-
Quantity Price Breaks
LM25UUAJ Adjustable Linear Ball Bushing with Rubber Seals 25x40x59mm
- Regular price
- CHF 17.00 ex VAT
- Sale price
- CHF 17.00
- Regular price
-
Description
LM-AJ Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
Technical

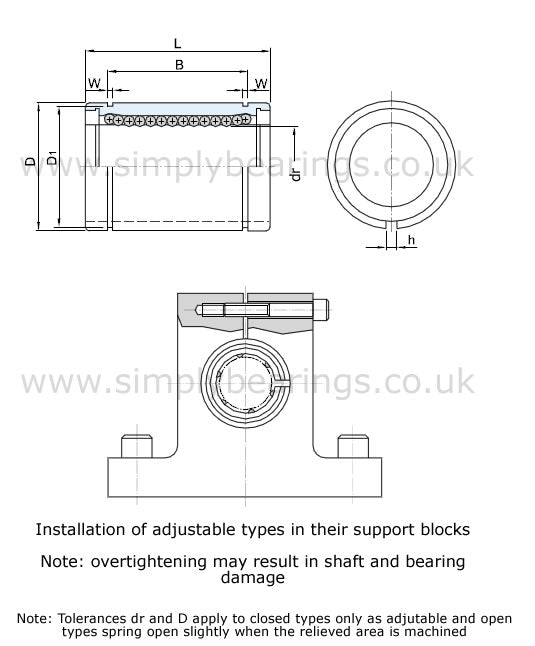

| Inside Diameter dr | = | 25mm Tol + 0 to - 7& |
| micro | = | m |
| Outside Diameter D | = | 40mm Tol + 0 to - 14& |
| micro | = | m |
| Length L | = | 59mm Tol + 0 to - 300& |
| micro | = | m |
| W | = | 1.85mm |
| D1 | = | 38mm |
| h | = | 2mm |
| Eccentricity | = | 10& |
| micro | = | m |
| Dynamic load C | = | 105 kgf |
| Static load C< | = | sub> |
| o< | = | /sub> |
| = | 185 kgf | |
| Weight | = | 220 g |
| B | = | 41mm Tol + 0 to - 300& |
| micro | = | m |
| Number of ball rows | = | 6 |
