SKU: LHSA-8-IKO

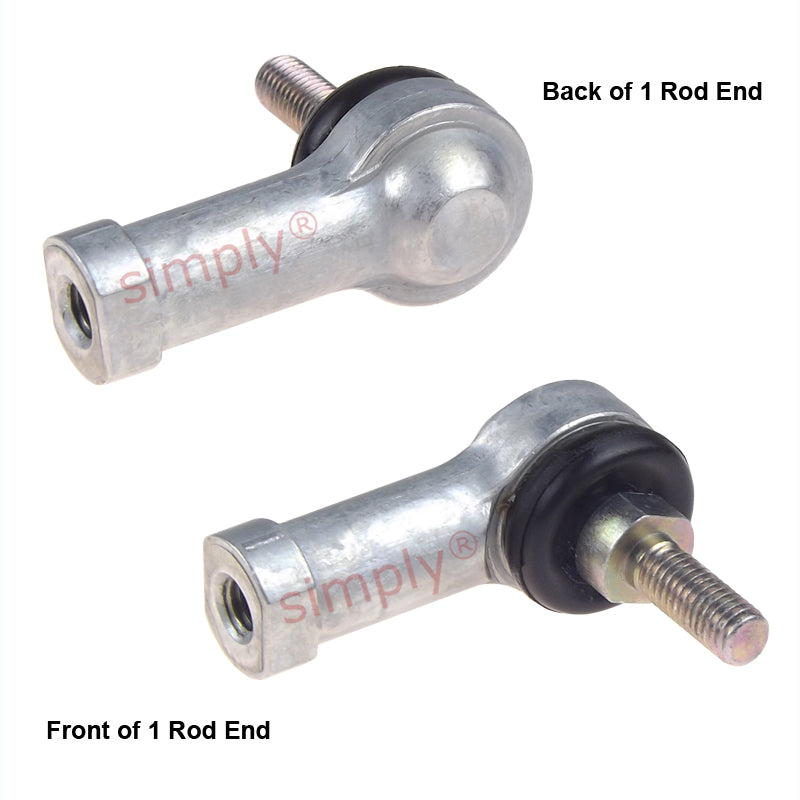

IKO LHSA8 Right Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M8x1.25 Thread

CHF 14.00 ex VAT
CHF 14.00
ex VAT
Not in stock

Quantity Price Breaks

10+ CHF 12.46
19+ CHF 11.76
29+ CHF 11.62
39+ CHF 11.48
49+ CHF 11.34
74+ CHF 11.20
99+ CHF 10.50
199+ CHF 10.36
249+ CHF 10.22
499+ CHF 10.08
999+ CHF 9.80
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
placeholder-svg
SKU: LHSA-8-IKO

IKO LHSA8 Right Hand Metric Steel / Steel Studded Copper Alloy Bushing with Fixed Dust Cover L-Ball Rod End M8x1.25 Thread

CHF 14.00 ex VAT
CHF 14.00
ex VAT

Description

L-Ball LHSA Rod Ends: The L-Ball LHSA is a high quality compact rod-end. Constructed with a dust cover on the stud side, this rod end is pre-loaded with quality lithium soap based grease, allowing these rods to be run for extended periods of time between re-lubrication. Other advantages included excellent lubrication with anti dust properties.
The ball-studs of LHSA 10 and lower are formed as a single solid body, LHSA 12 and higher which are designed for larger loads have the stud friction-welded to a high precision steel ball to give better resistance to wear.
L-Balls have a maximum operating temperature of +80°C
Note: The threads on the studs are always right-handed threads, the internal threads are handed dependent on the version purchased. eg: if you purchased an LHSA12 then the internal thread will be right-handed whereas in the case of an LHSA12L the internal thread will be left-handed. (The L in the part number indicates this)
Benefits: Very high quality, excellent lubrication, can be run for extended periods between re-lubrication
