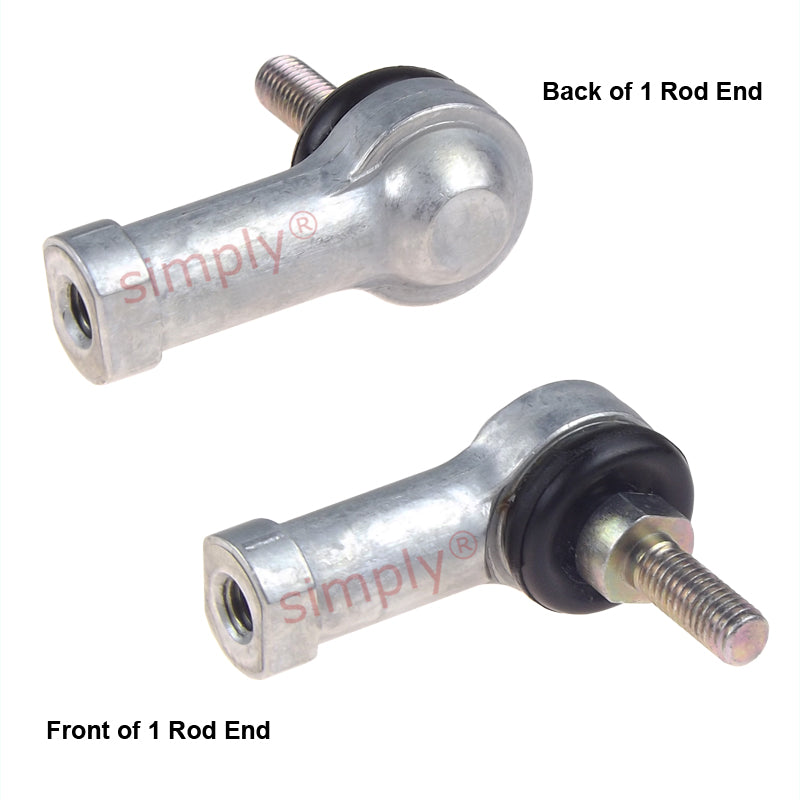

IKO LHSA5 Right Hand Metric Steel / Steel Studded Copper Alloy Bushing with Dust Cover L-Ball Rod End M5x0.8 Thread

SKU: LHSA-5-IKO

IKO LHSA5 Right Hand Metric Steel / Steel Studded Copper Alloy Bushing with Dust Cover L-Ball Rod End M5x0.8 Thread

CHF 16.00 ex VAT
CHF 16.00
ex VAT
In stock

Quantity Price Breaks

10 CHF 14.24
19 CHF 13.44
29 CHF 13.28
39 CHF 13.12
49 CHF 12.96
74 CHF 12.80
99 CHF 12.00
199 CHF 11.84
249 CHF 11.68
499 CHF 11.52
999 CHF 11.20
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
IKO LHSA5 Right Hand Metric Steel / Steel Studded Copper Alloy Bushing with Dust Cover L-Ball Rod End M5x0.8 Thread
SKU: LHSA-5-IKO

IKO LHSA5 Right Hand Metric Steel / Steel Studded Copper Alloy Bushing with Dust Cover L-Ball Rod End M5x0.8 Thread

CHF 16.00 ex VAT
CHF 16.00
ex VAT

Description

L-Ball LHSA Rod Ends: The L-Ball LHSA is a high quality compact rod-end. Constructed with a dust cover on the stud side, this rod end is pre-loaded with quality lithium soap based grease, allowing these rods to be run for extended periods of time between re-lubrication. Other advantages included excellent lubrication with anti dust properties.
The ball-studs of LHSA 10 and lower are formed as a single solid body, LHSA 12 and higher which are designed for larger loads have the stud friction-welded to a high precision steel ball to give better resistance to wear.
L-Balls have a maximum operating temperature of +80°C
Note: The threads on the studs are always right-handed threads, the internal threads are handed dependent on the version purchased. eg: if you purchased an LHSA12 then the internal thread will be right-handed whereas in the case of an LHSA12L the internal thread will be left-handed. (The L in the part number indicates this)
Benefits: Very high quality, excellent lubrication, can be run for extended periods between re-lubrication
