SKU: KR90PPA-MB

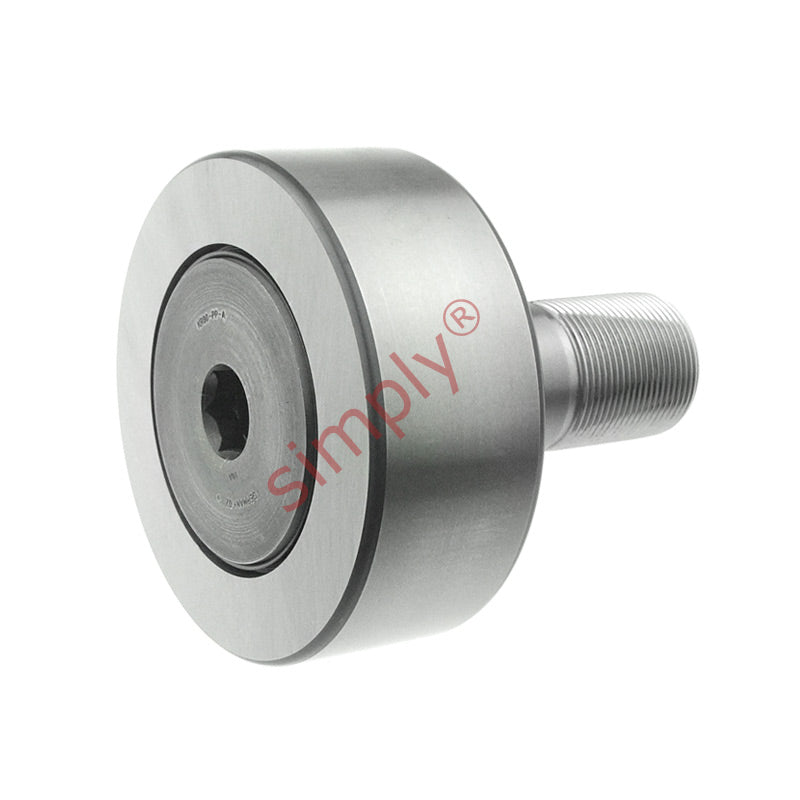

Major Brand KR90PPA Contact Sealed Crowned Cam Follower 90x35x30 M30x1.5 Thread
- Regular price
- CHF 192.00 ex VAT
- Sale price
- CHF 192.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 170.88
19
CHF 161.28
29
CHF 159.36
39
CHF 157.44
49
CHF 155.52
74
CHF 153.60
99
CHF 144.00
199
CHF 142.08
249
CHF 140.16
499
CHF 138.24
999
CHF 134.40
SKU:
KR90PPA-MB
Major Brand KR90PPA Contact Sealed Crowned Cam Follower 90x35x30 M30x1.5 Thread
- Regular price
- CHF 192.00 ex VAT
- Sale price
- CHF 192.00
- Regular price
-
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
Technical
| D | = | 90mm |
| C | = | 35mm |
| d(Stud Diameter) | = | 30mm |
| B | = | 100mm |
| B1 | = | 63mm |
| B2 | = | 15mm |
| C1 | = | 1mm |
| d1 | = | 53mm |
| G | = | M30x1.5 |
| G1 | = | 32mm |
| M1 | = | 4mm |
| r min | = | 1.1mm |
| SW | = | 14mm |
| Dynamic load | = | 38000 N |
| Static load | = | 76500 N |
| Fatigue load limit Pu | = | 9500 N |
| Radial dynamic load | = | 160000 N |
| Radial static load | = | 228000 N |
| Speed rating | = | 1300 rpm |
| Weight | = | 1980 g |
